8. Self-Check & Fine Calibration
IMPORTANT: It is the responsibility of the user to verify the
calibration of the instrument before each use.
The instrument must be self-checked for accuracy periodically,
specifically before a large project, where accuracy is critical. If the
accuracy is found to be beyond tolerance, some adjustment may be
made as follows.

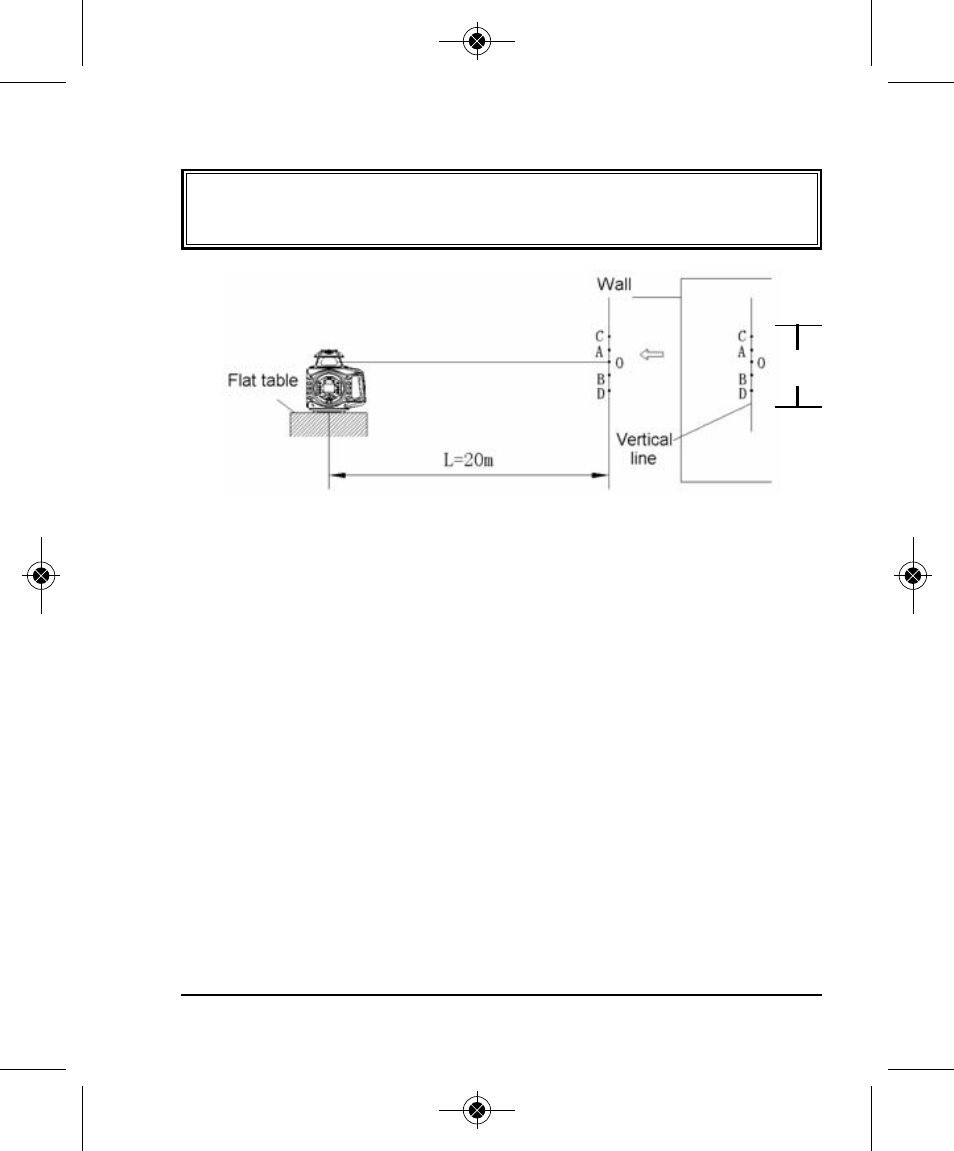

X-Axis and Y-Axis Accuracy Check:
1. Place a table indoors, approximately 20m from a wall. Place the
instrument on the table with the X-axis facing the wall.
2. Power the instrument on and allow it to self-level. Adjust the
rotating speed to make the output laser line clear and visible.
Mark a vertical line on the wall that intersects the laser line from
the instrument. Mark a line where the laser line hits the vertical
line, and label as ‘A’.
