14 ©2007 Johnson Level & Tool
Scan Button
• Pushing the scan button once will change the laser from full rotation
to a small scan. The scan mode indicator light will flash on the laser.
• Pushing the scan mode button again will change the laser into its
large range scan.
• Pushing the scan button a third time will change the laser beam to a dot.
• Pushing the scan button a fourth time will change the laser back to
its full rotation mode. The scan mode indicator light on the laser will
remain constant.
Detector Usage (included in Model No. 40-6510)
1. Technical Specifications
Detecting precision
Fine: ±0.039" (±1mm)
Coarse: ±0.098" (±2.5mm)
Turn-off timer 10 minutes
Three types of sound
Size
6.614" x 2.677" x 0.905" (168 X 68 X 23mm)
2. Components

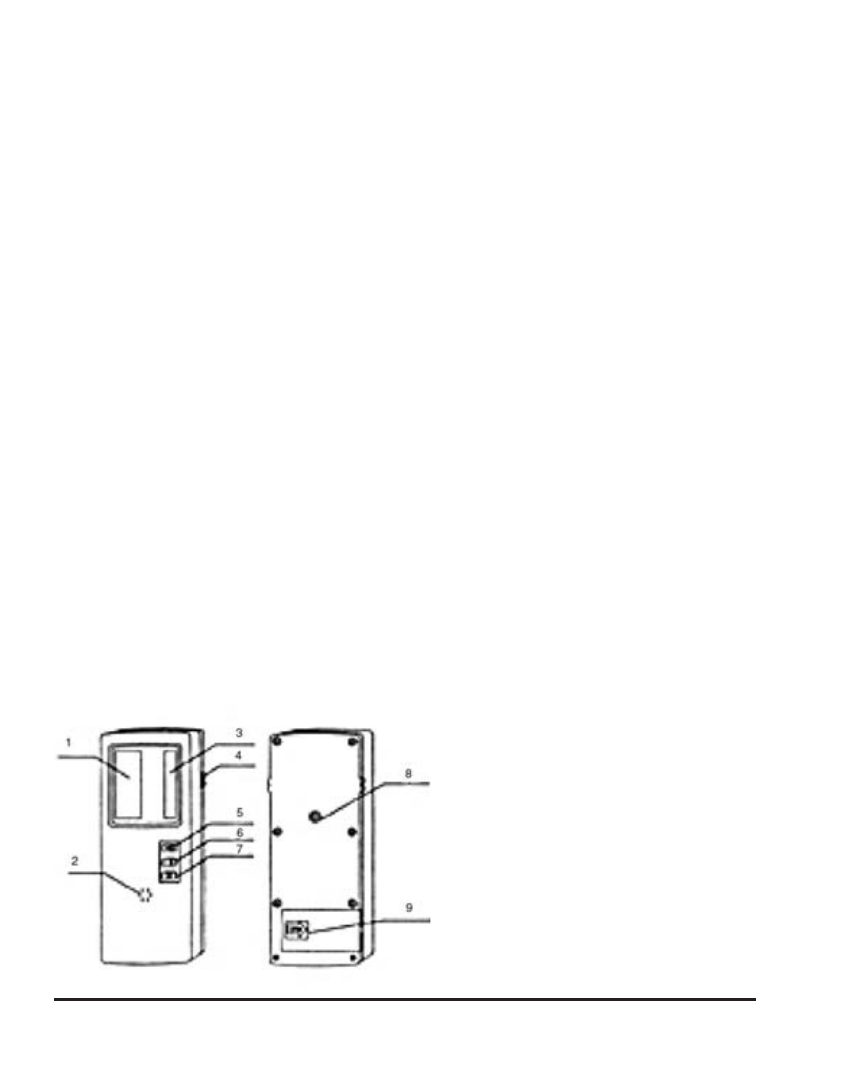

(a) Structure
1. Display window
2. Horn
3. Receiving window
4. Reference rabbet
5. Horn button
6. Coarse/Fine detection button
7. Power button
8. Threaded hole
9. Battery-box cap
