• Vertical Line On: With a second press of the power button, the
vertical laser is also turned on.
• Power Off: A third press of the power button, turns all of the
lasers and power indicator lamps off.
Rotation / Scan Mode
• High Speed Rotation: When turned on, the instrument is in the
high-speed rotation mode. This is indicated by the range scan indi-
cator light (continuously on), and rotating laser in high speed.
• Small Scan: With one press of the scan mode button, the rotating
laser performs scan at a small angle. The scan indicator light will
blink.
• Large Scan: With a second press of the scan mode button, the
rotating laser performs scan at a large angle. The scan indicator light
will blink.
• DOT: With a third press of the scan mode button, the rotating laser
stops and projects a laser dot. The scan indicator light will blink.

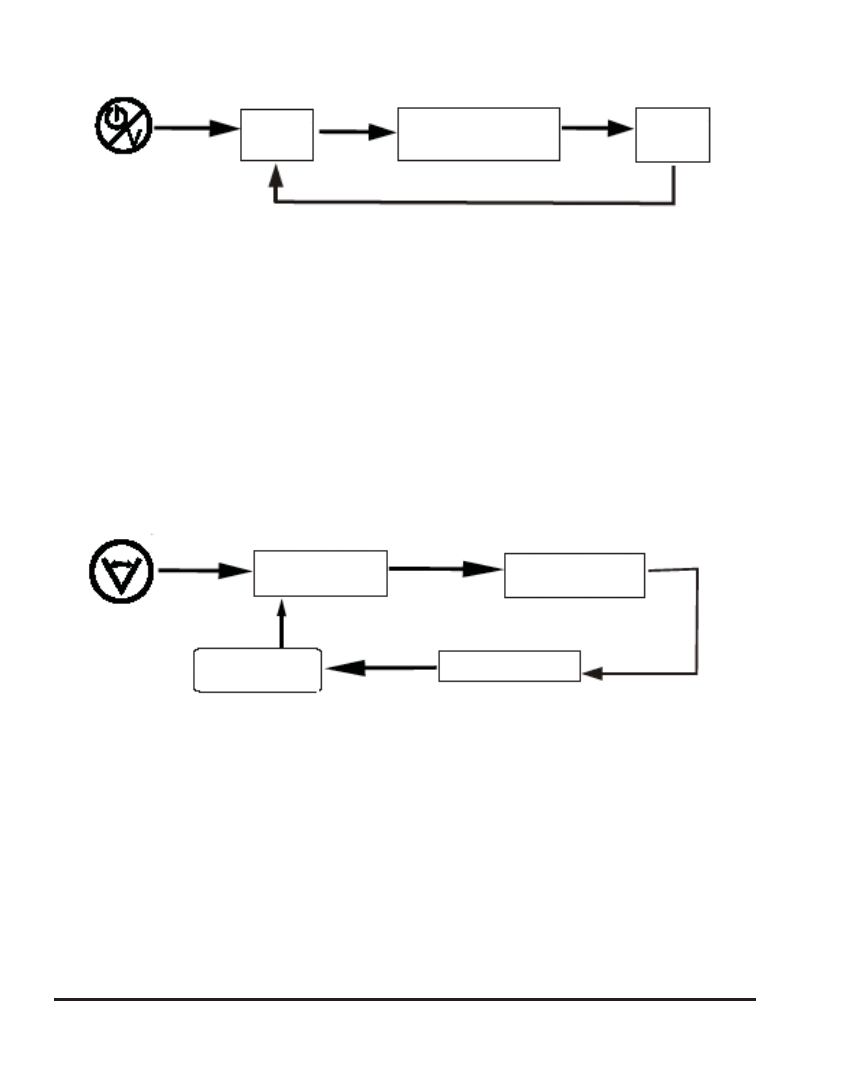

1st Press 2nd Press 3rd Press
Press Again
Power
ON
Power/Vertical
Line On
Power
Off
1st Press 2nd Press
4th Press 3rd Press
Press Again
Small Range
Scan
Large Range
Scan
High Speed
Rotation
DOT
