7. Using the Product
Operating Panel
1. On/Off Button
• Pressing the button will turn the unit on / off after the
transportation lock has been turned to unlock in the horizontal mode.
2. Power Indicator Light
• Lit indicator light means power-on.
• Unlit indicator light means power-off.
• Flashing indicator light means low voltage.
3. Scan Indicator Light
• Solid indicator light means continuous rotation mode.
• Flashing indicator light means scan mode.
4. Scan mode button
• With the first press of this button, the instrument emits a short
horizontal laser line.
• With a second press of this button, the instrument emits a longer
horizontal laser line.
• With a third press of this button, the instrument emits a laser point.
• With a fourth press of this button, the laser will once again rotate.

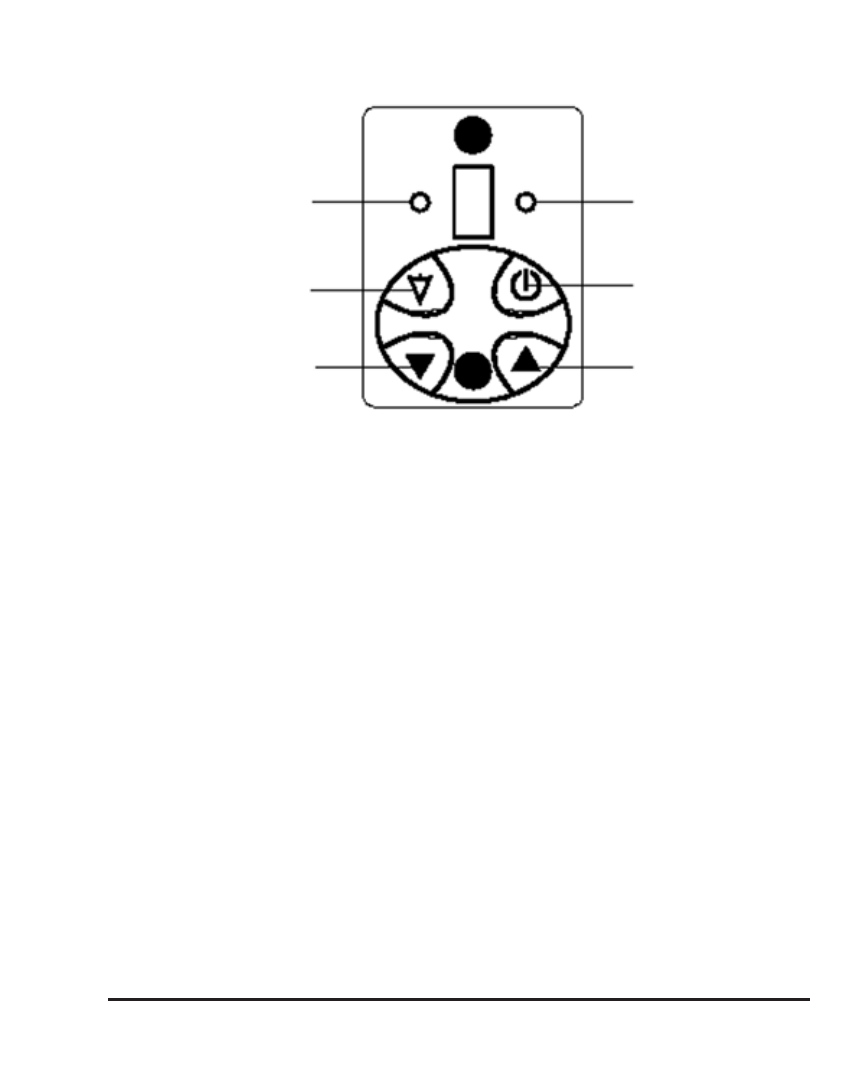

Scan Indicator
Light Power Indicator
Light
Down/Clockwise
Button
Scan Mode
Button
On/Off Button
Up/Counterclockwise
Button
