6. Operating Instructions

IMPORTANT: It is the responsibility of the user to verify the
calibration of the instrument before each use.

Power LED:
LED light on = power-on; LED light off = power-off
Low Battery LED:
LED light on = low battery voltage; LED light off = normal battery voltage
Vibrate-mode LED:
LED light on = vibrate-mode on; LED light off = vibrate-mode off
Slope LED on X/Y Axis:
LED light on = slope-mode in X or Y axis (need to actuate w/remote control)
Flashing LED means self-calibration on X/Y direction mode on (see
Self-Calibration section)

Tilt button

Tilt LED

Vibrate-mode LED

Vibrate button

Slope-direction LED

Low battery LED

Power LED

Power button

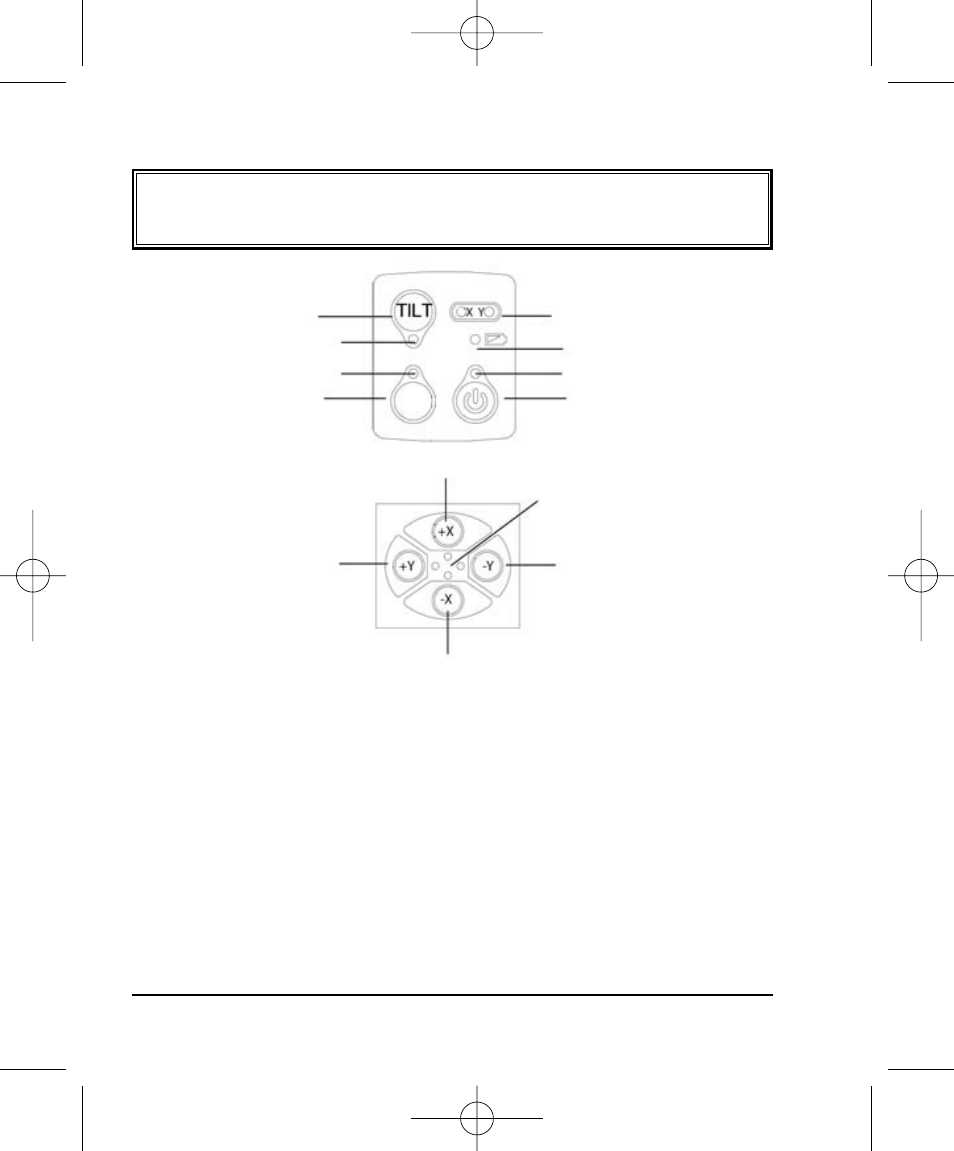

Fig. 5

Fig. 6

+X Beam Shield axis beam

-Y Axis

+Y Axis

-X Axis

Shield LED

VIB
