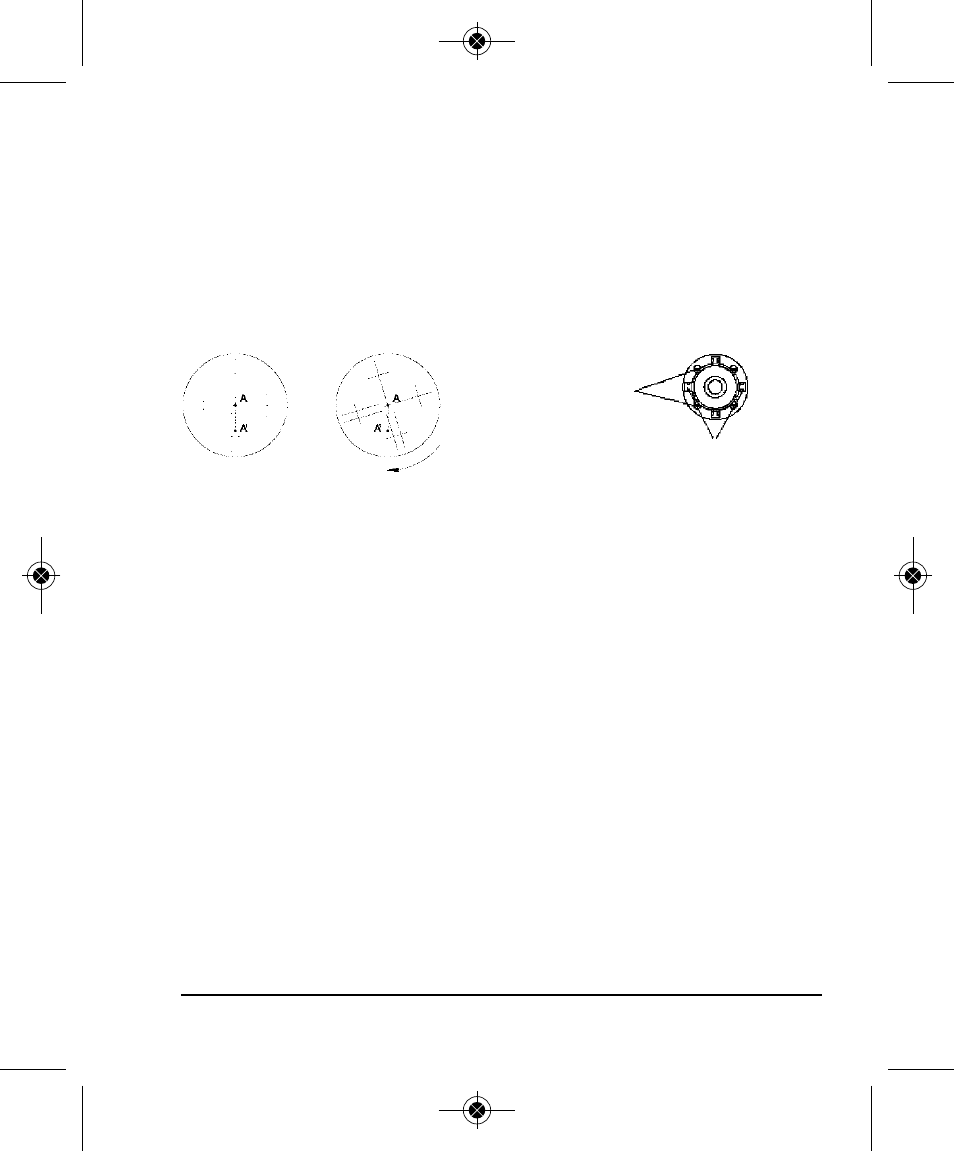

• Move the telescope using the vertical fine movement and observe

whether point A moves along the vertical hair.

• If point A moves along the vertical hair of the reticle, no adjustment

is necessary.

• Adjustment is necessary if the point A strays from the vertical

crosshair.

Calibrating
• Turn counterclockwise and remove the reticle cover between the

eyepiece and focusing handwheel. This will expose four reticle set
screws.

• Loosen these four set screws equally with a screwdriver. Turn the

Assembly so that point A coincides with the vertical crosshair.

• Tighten these four set screws equally and observe whether any

transversal deviation appears when point A moves along the
vertical hair. If not, the adjustment is over.

• Assemble back the protective cover to its original position.

Clamp Screws

of Reticle Base

Reticle Adjusting Screw
