Required tools, Removing the installed raid card and battery 1 – Apple Mac Pro RAID Card and Battery User Manual
Page 2
073-1251 Rev. A
2
© 2009 Apple Inc. All rights reserved.

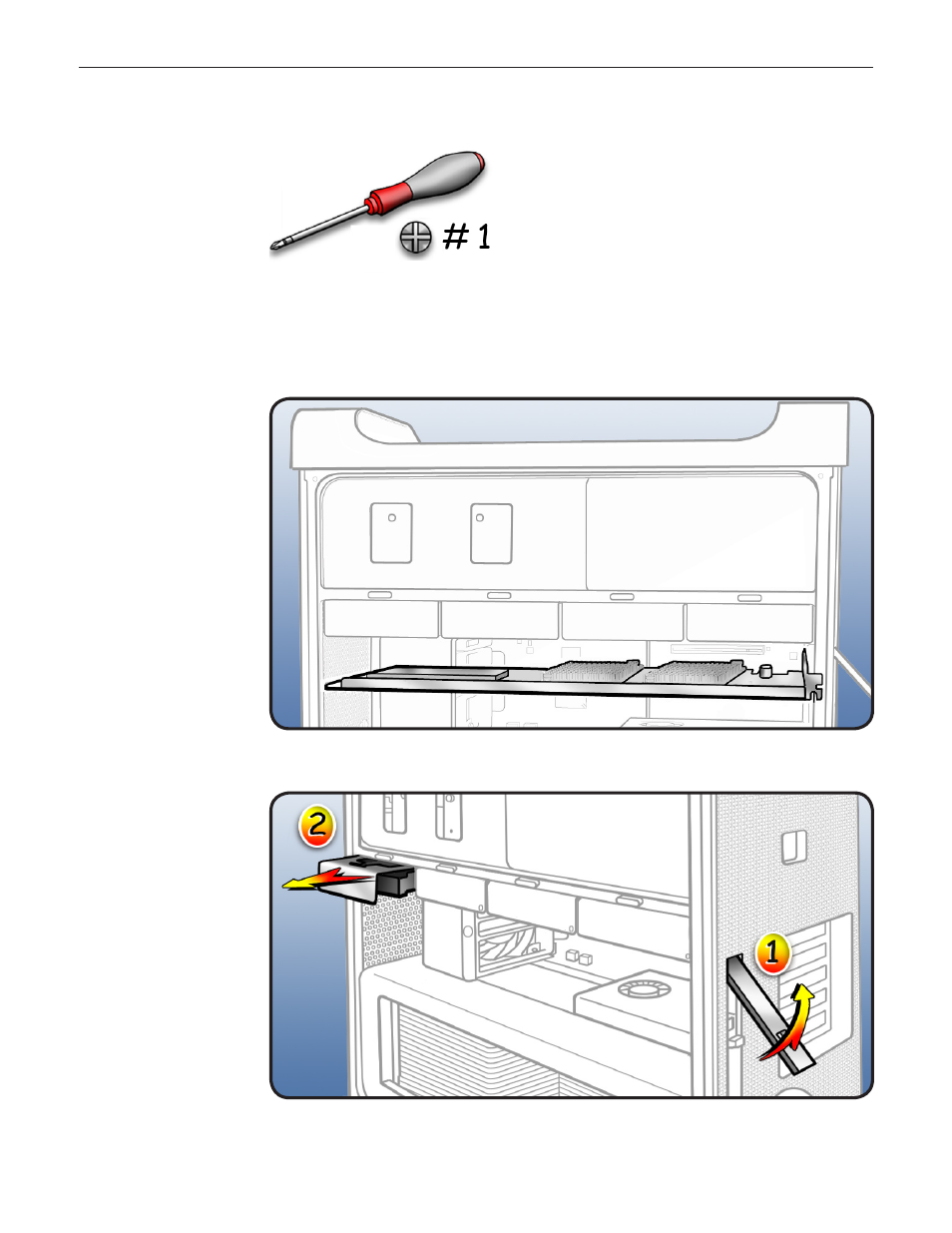

Required Tools
Phillips #1 screwdriver
Removing the
Installed RAID
Card and Battery
1
Locate RAID card.
Note: Before removing or
installing a RAID card, you
must remove all hard
drives. Also remove any
12-inch PCI card blocking
access to the RAID card.
Make sure latch on
2
back panel is up, so
that drive is unlocked.
Pull hard drive out of
3
far-left drive bay.
Repeat for remaining
4
drives.
