Elitegroup A535 User Manual
Page 107

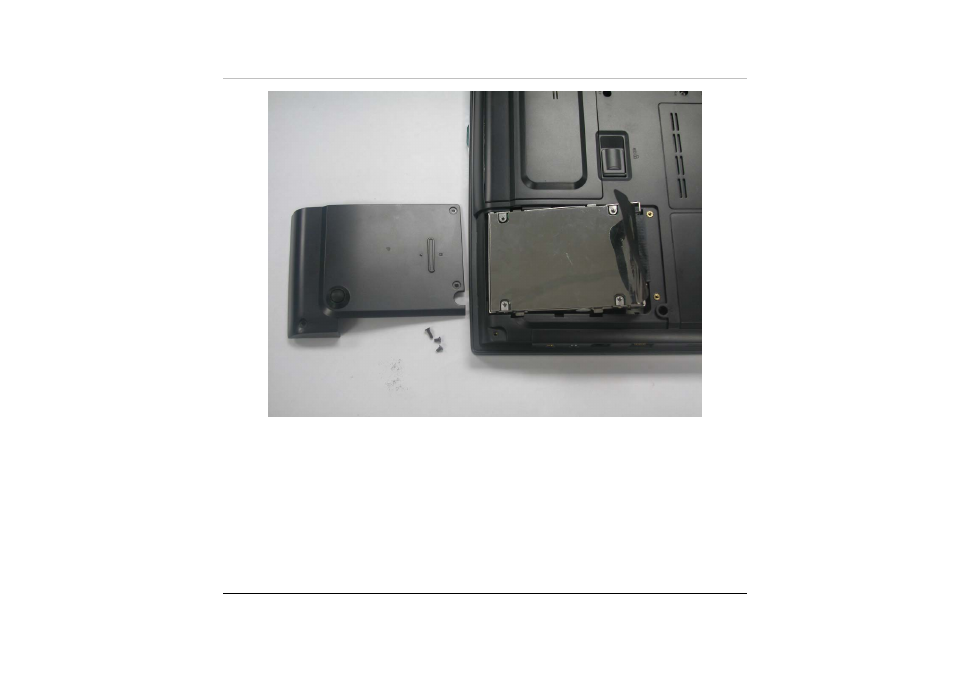

To install the new HDD, you will need to align the tabs on the drive bracket
with the slots on the bay. Press down gently on the drive bracket until it
engages with the system. Do not force the drive into place this can bend the
pins on the hard drive.
7
7
.
.
8
8
.
.
9
9
.
.
Slide the compartment cover into place and be sure the screw holes on the
cover align completely with the screw holes in the case.
Secure the cover with the three screws.
-
