Chapter 2
22
Z87H3-A2X EXTREME (GOLDEN) USER MANUAL
If you use AC ’ 97 Front Panel, please t ick off the option of “ Disabled Front Panel
Detect ”. If you use HD Audio Front Panel, please don ’ t t ick off “ Disabled Front Panel
Detect ” .
* For reference only
AC ’ 97 Audio Configuration: To enable the front panel audio connector to
support AC97 Audio mode.
The front panel audio header allows the user to install auxiliary front-oriented
microphone and line-out ports for easier access. This header supports HD audio by
default. If you want connect an AC
’ 97 front panel audio to HD onboard headers,
please set as below picture.

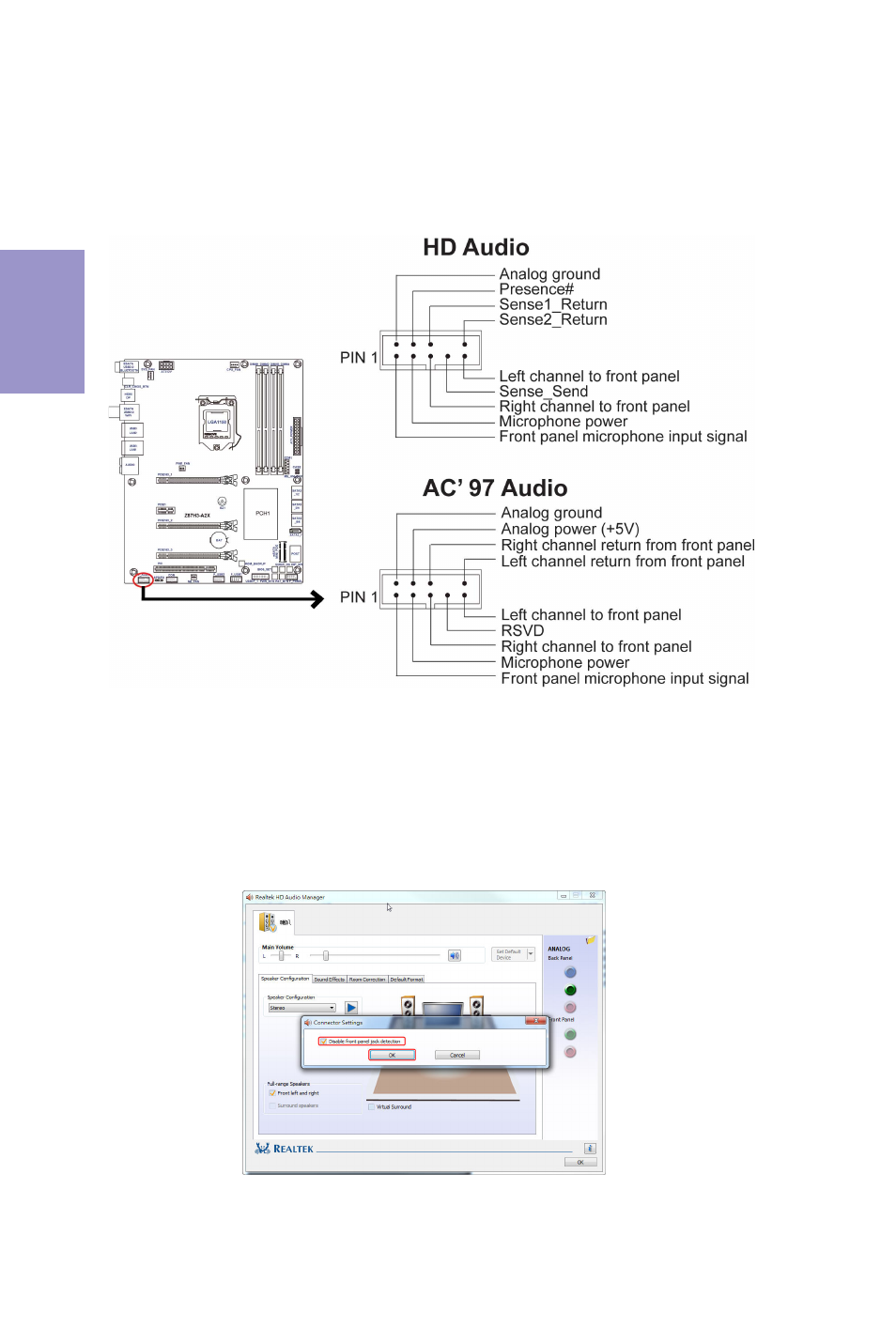

9. F_AUDIO: Front Panel Audio Header
