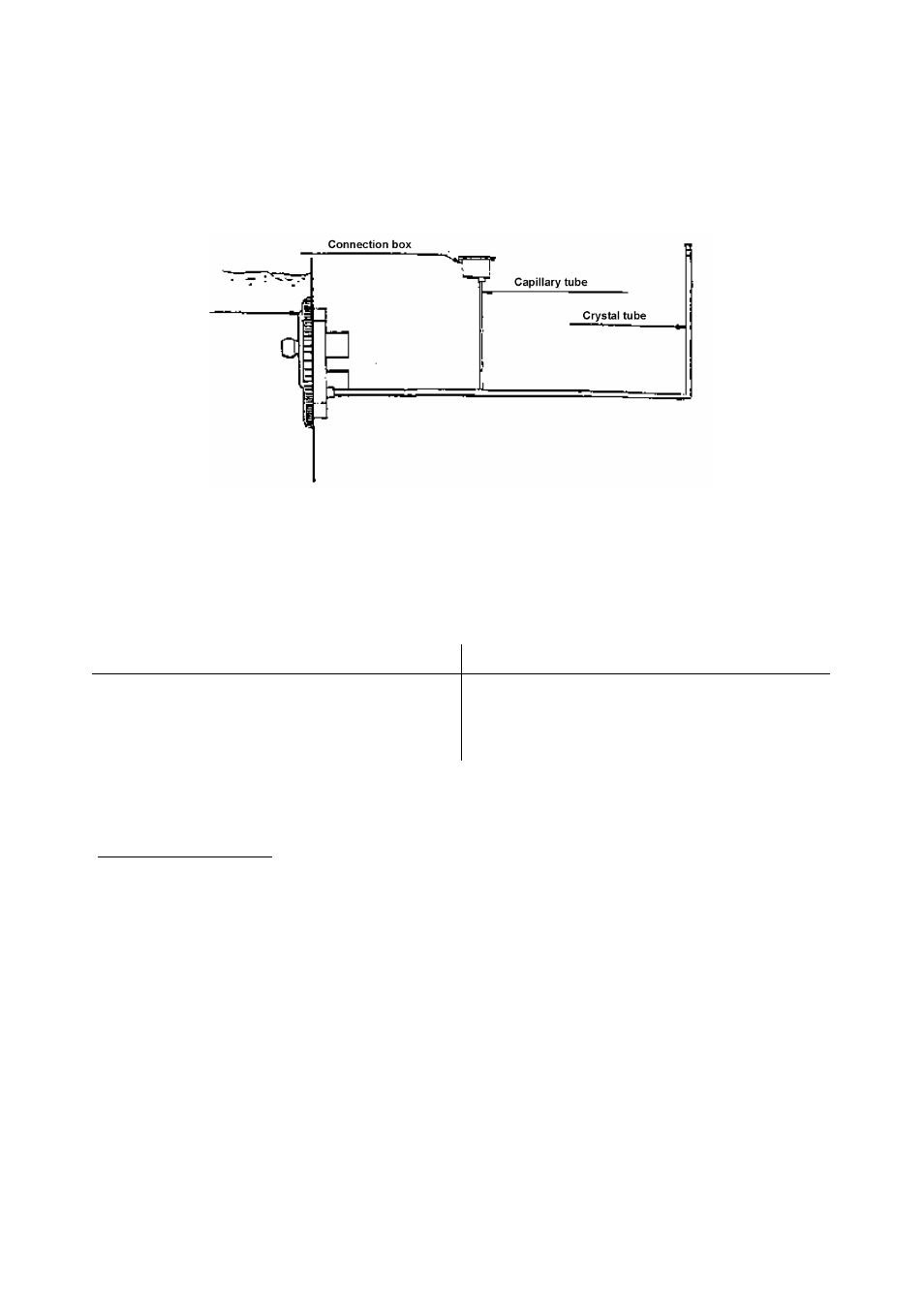

LOCATION OF THE PRESSURE REGULATOR:
If your electrical equipment box is more than 5 metres away from the front face, you should
bring the pressure regulator (interrupter of the pneumatic button) close to the swimming pool in
a connection box.
POSITIONING OF THE PUMP:
The pump of this device must be installed next to the structure and must be connected by a
pressure pipe, minimum diameter 50mm.
If this is not possible the pump can be placed further away, although the loss of pressure/flow
must be calculated for. Refer Table below.
Distance between the front face and the pump Diameter of the pipes
1m Diameter 50mm (2”)
1 to 5 m Diameter 65mm (2.5”)
5 to 15 m Diameter 80mm (3”)
PACKAGE NO.2
Additional components:
Ergonomic Jet Face.
Adjustable Air Outlet Valve.
Pneumatic Start-Up Control.
PACKAGE NO.3
Single-phase or Three-phase Hydro-Electric Generating Set.
PACKAGE NO.4
Single-phase or Three-phase Switch Box (with Thermal Relay adapted in accordance to the
choice of Hydro-Electric Generating Set).
