STEP 3
Prepare your choice
of discharge pipe
size and check valve
STEP 4
Install your pump
in centre of pit
STEP 5
Install discharge pipe
STEP 6
Connect float and
motor power cables
STEP 7
Fill the basin and test
the operation
STEP 8
Review and check
connections for leaks

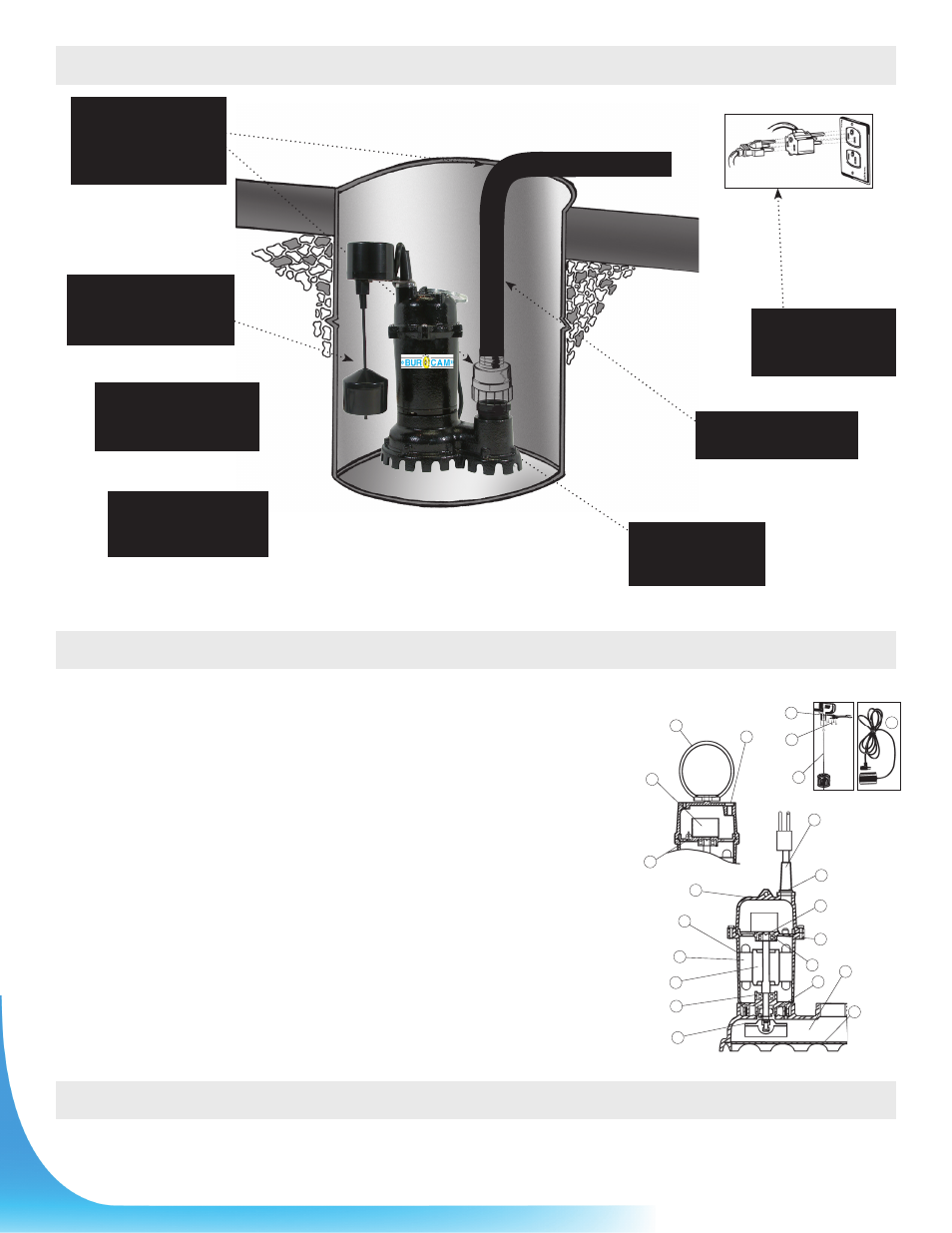

SUMP PUMP APPLICATION
REPAIR PARTS
Repair parts may be ordered from your authorized point of sale or from BUR-CAM PUMPS
STEP 2
Sump pit 18” diameter
X 25” depth
REF. PART DESCRIPTION
1 310883 Upper casing
2 310885 Motor housing
3 310888 Stator (300618-628)
3 310889 Stator (300718-728)
4 310886 Shaft / rotor (300618-628)
4 310887 Shaft / rotor (300718-728)
5 310895 Mechanical seal
6 310891 Impeller (300618-628)
6 310892 Impeller (300718-728)
7 310893 Strainer
8 310890 Lower pump casing
9 310894 Lower / upper bearing
10 310896 Snap ring
REF. PART DESCRIPTION
11 310897 O Ring
12 310903 Power cable adaptor
13 310898 Power cable
14 310902 Plug screw
15 310899 Handle
16 310900 Capacitor (300618-628)
16 310901 Capacitor (300718-728)
17 310884 Bearing housing
18 450453 Mechanical switch
19 450447 Vertical switch
20 450402 S. S. Screws (4)
21 350132 Switch bracket
