Repair parts may be ordered from your authorized point of sale or from
BUR-CAM PUMPS
REPAIR PARTS
REF. PART DESCRIPTION
1 310430 Pump volute
2 310433 Impeller
3 310434 Pump base
4 310441 Stator
5 350340 Upper bearing
6 310438 Rotor
7 350340 Lower bearing
8 310435 Oil seal
REF. PART DESCRIPTION
9 350126 Mechanical seal
10 310448 Bearing housing
11 310443 Pump gasket
12 310446 Capacitor
13 310449 Upper casing
14 350114 Screws (2)
15 350329 Power cable
16 450447 Vertical switch
3
2
1
14
4
6
5
8
7
9
15
13
12
11
10
16

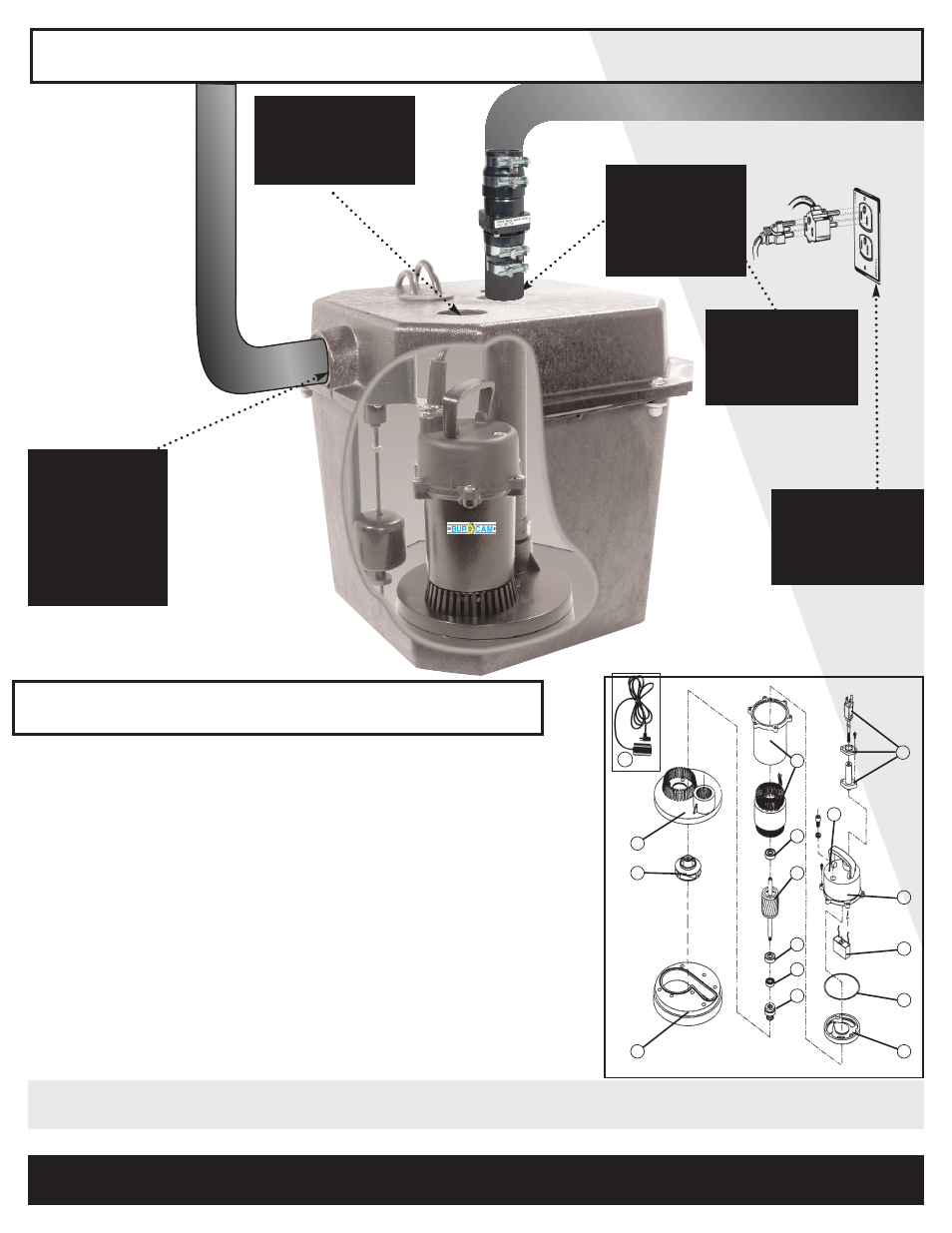

STEP 4
Connect the vent
line to the lid
STEP 5
Connect the power
cables to the
electric outlet
STEP 2
Connect the sink
strainer to the
basin intake (a P-
Trap is required
between the sink
and the basin)
STEP 3
Connect the pump
discharge to the
existing drain line
We strongly
suggest to install
a check valve to the
pump discharge
UNDER SINK APPLICATION
