2.5 Output Connections
Stewart Audio recommends using high-quality, heavy-gauge speaker
wire and connectors to send the output signal of your amplifier to the
speakers. Use the following table as a guideline when selecting your
wire gauge.

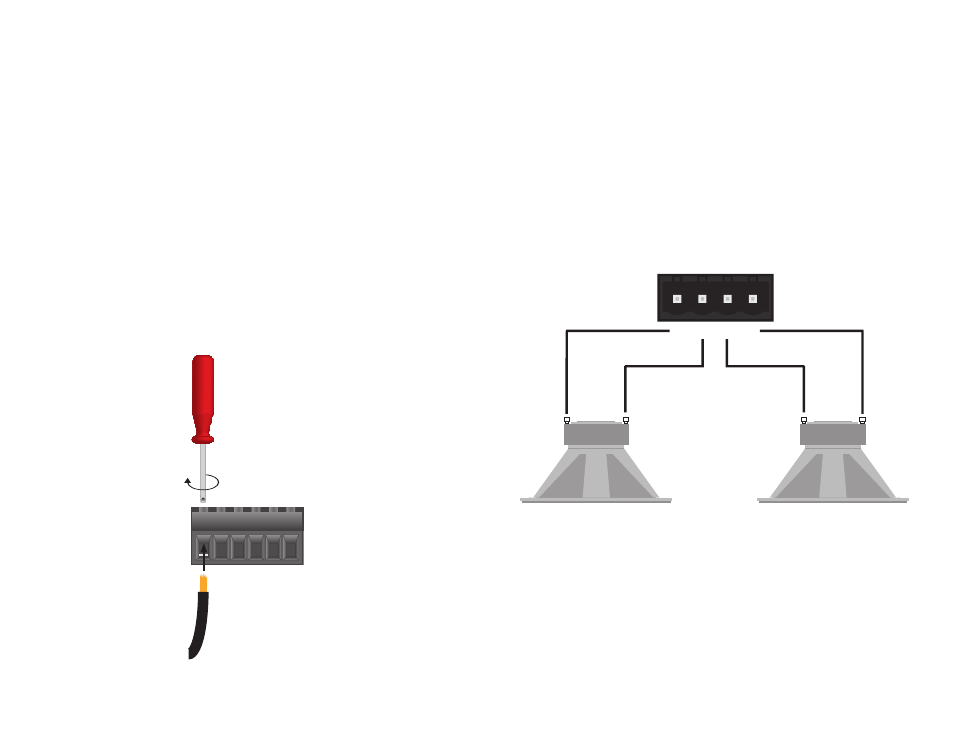

Speaker leads connect by means of terminal block connectors supplied
with the unit. Strip speaker leads 1/4” and insert into connector ob-
serving proper polarity. With a small, flat-blade screwdriver, tighten the
screw until the leads are held securely in place. Inspect for possible
shorts or broken wires.
Distance Wire Gauge
Up to 25 ft. 16 AWG
26-40 ft. 14 AWG
41-60 ft. 12 AWG
+ -
- + - +
+ -
Output Connector
(Rear of AV30MX-2)
Left Channel Right Channel
2.5.1 Speaker Configuration
The AV30MX-2’s two stereo input channels are mixed and then sent
out to the left and right speakers. The expect speaker setup as a typical
8ohm or 4ohm configuration (not to exceed 30W per side).
Once you have wired your terminal block connectors with the instruc-
tions in section 2.5, use the following diagram as a reference for con-
necting your speakers.
