Line Array User’s Manual Line Array User’s Manual
STLA/STXLA SY STLA/STXLA SY STLA/STXLA SY STLA/STXLA SY STLA/STXLA SYSTEMS STEMS STEMS STEMS STEMS
STLA Line Array Systems
STLA/9 Self-Powered Line Array Module. 136 dB peak output, yet under 200 lbs. 2x 12" LF drivers and two
CDT1.5 CoEntrant Drivers on an Isophasic Plane Wave Generator. Engineered for use in vertical arrays; integral
two-point flying hardware. Self-powered with the PM-3 PowerNet Tri-Amplifier: R-Control optional and
CobraNet inputs optional.
Subwoofer: DR18-2 self-powered dual 18” subwoofer recommended.
STXLA Line Array Systems
STXLA/9 Line Array Module. Designed for tri-amp power with external amplifiers using the X14 Controller for
Loudspeaker Specific Processing. Uses the same components and pattern control technologies as the self-powered
STLA/9 module.
Subwoofer: DRS18-2 externally-powered dual 18” subwoofer recommended.
All STLA Systems
RHANGSTLA Fly Bar. Coupled with the two-point angle-setting system on Renkus-Heinz Line Array modules, it
provides a safe, flexible and simple means of flying vertical arrays up to12 deep.
RHANGSTLA Tie Bars and Quick-Disconnect pins provide a choice of splay angles and metal-to-metal reliability.

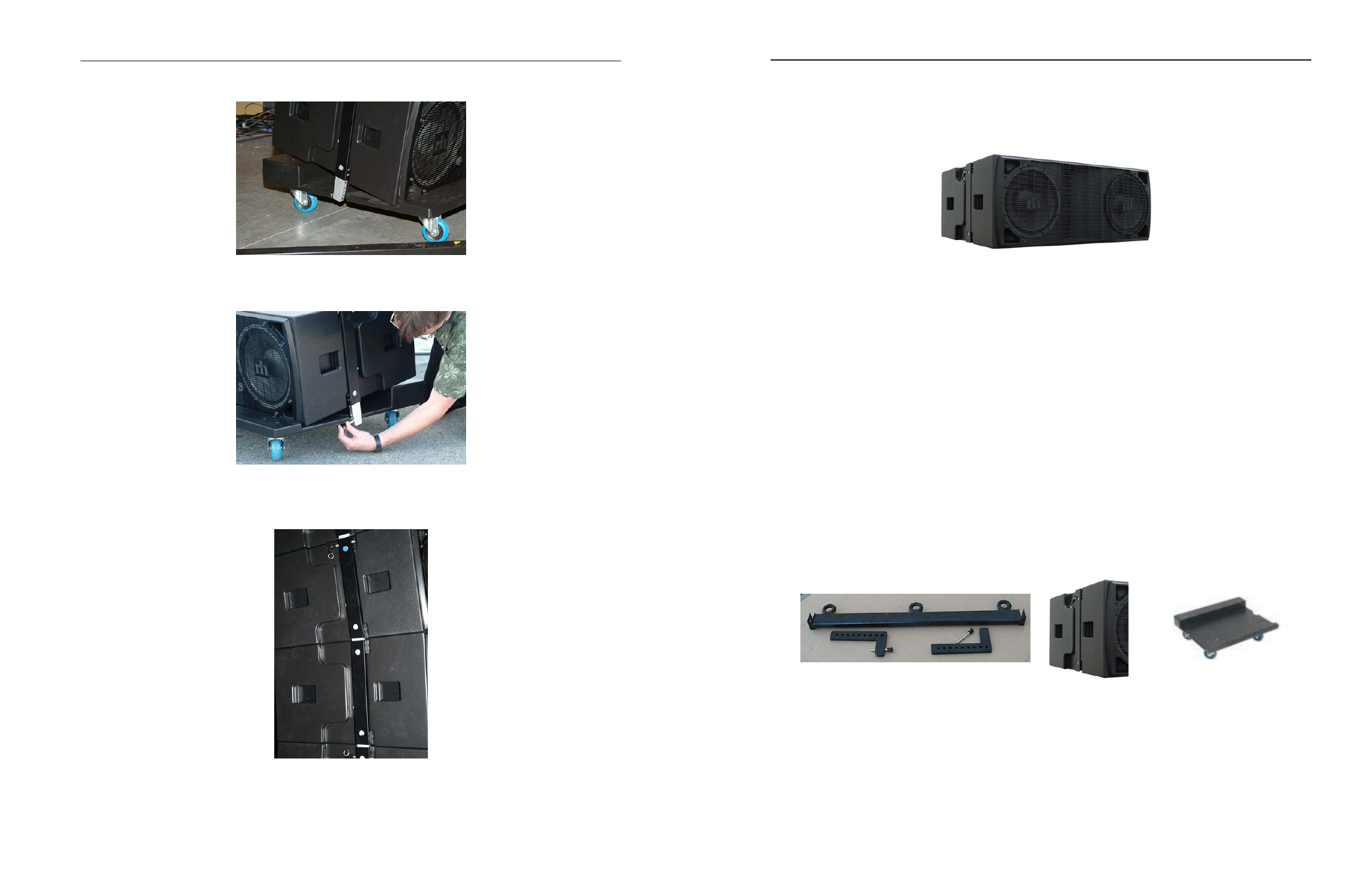

STDolly holds up to 4 STLA/9 or STXLA/9 modules
The module’s tie bars fit into slots on the sides of the dolly.
Attach the module to the dolly using quick release pins on both sides.
The STDolly will support up to four modules. Remove the quick-release pins from both sides of the fourth module from
the bottom.
