Line Array User’s Manual Line Array User’s Manual
Locate the Array
In most venues your choice of location may be extremely limited.
Optimize the Array
Your goal is to make the frequency curve as flat as possible while delivering the desired SPL. Use the boxes at
the left of the screen to add or remove modules and to set the splay angles. AimWare shows you instantly
whether you are getting closer to an optimum design or farther away. For most venues, the entire design
process will take less than an hour.
SAVE YOUR CONFIGURATION
T
he final step is to save the design for later recall or modification. You can also import the file into EASE
or EASE JR 4.1 for further evaluation in EASE.

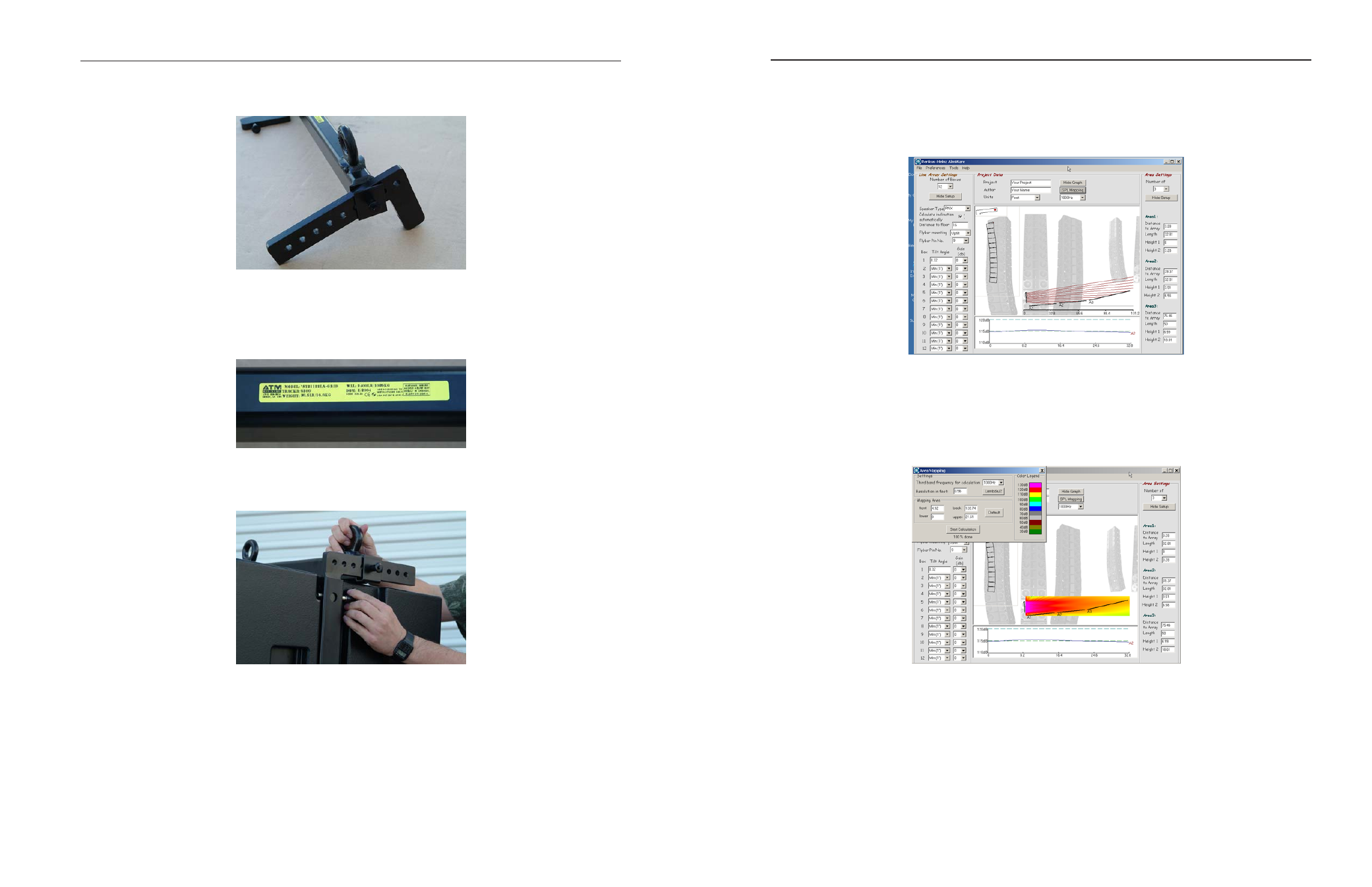

Before attaching the flybar to the top array module, attach the side pieces using the provided quick-release pins.
RHANGSTLA hardware is manufactured for Renkus-Heinz by ATM Flyware.
To attach the RHANGSTLA fly bar, insert it into the receiving tube and then insert the quick-release pin.
20 13
