GETTING STARTED
20 | PreSonus 2009

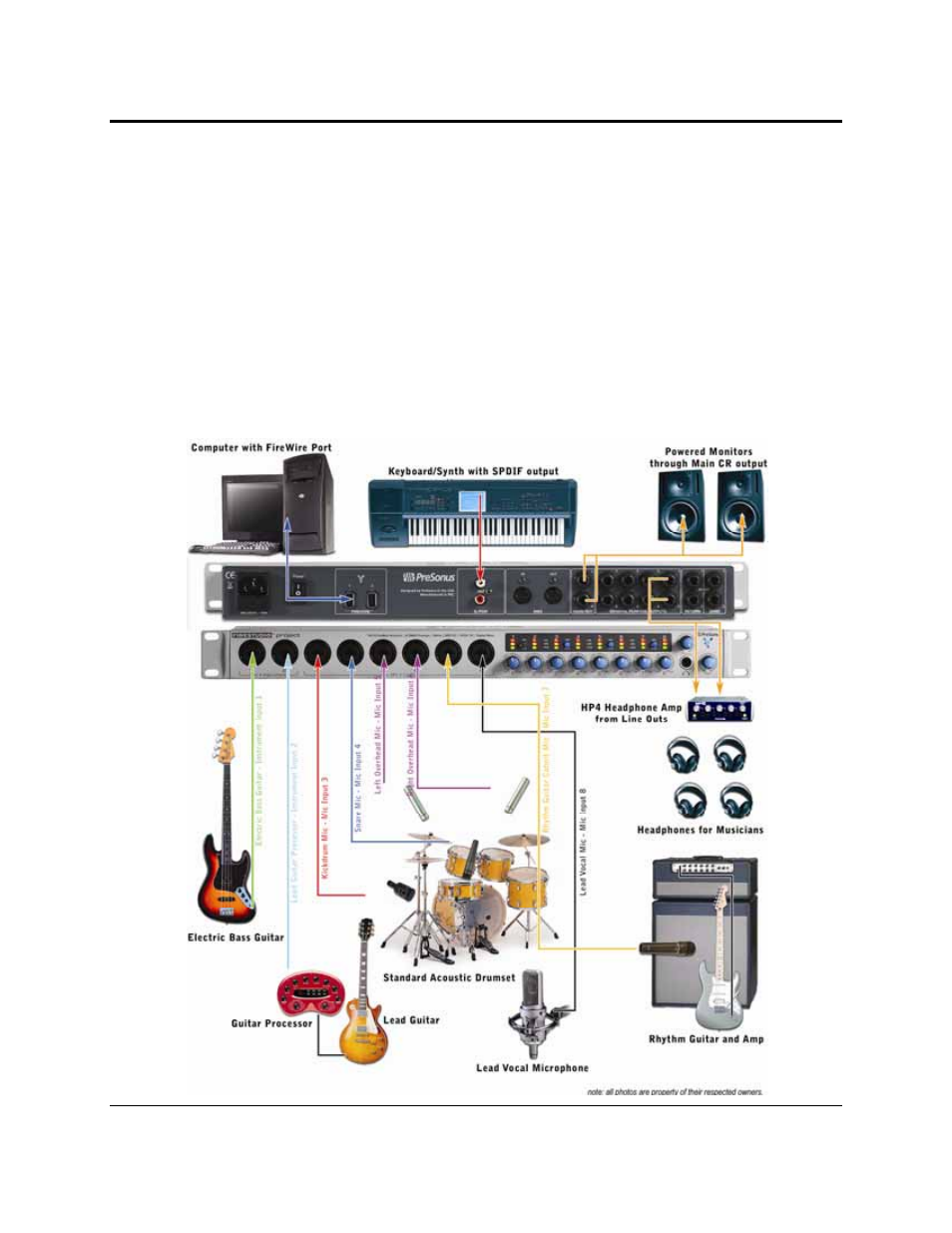

2.3 SAMPLE HOOKUP DIAGRAM
With the FireStudio Project, you can simultaneously record and play back up to ten channels. Since it is loaded
with eight preamplifiers, you can plug in eight microphones to the FireStudio Project along with S/PDIF digital
input to record a full band. This makes recording extremely easy. All you need are microphones, cables, and
monitor speakers.
This is a typical rock-band setup. Your needs may vary depending upon the number and variety of sources you
are recording. Feel free to adapt the sample setup below to your precise needs.
2.3.1 Recording a Band with a FireStudio Project
