GIGABIT ETHERNET PORTS
These ports conform to the IEEE 802.3 1000BASE-T standard for Gigabit Ethernet over copper.
It is recommended that CAT5E or CAT6 compatible cabling and connectors be used for best
performance. Cable lengths up to 100m are supported. For higher bandwidth requirements, both
ports can be used in a link aggregation group (LAG) configuration.
GENERAL PURPOSE IO PORT
PIN FUNCTION
1 POWER GROUND
2 EXTERNAL POWER
3 SYNC OUT 4
4 SYNC IN 1
5 SYNC OUT 3
6 SYNC OUT 1
7 USER GROUND
8 RS-232 RXD
9 RS-232 TXD
10 USER VCC
11 SYNC IN 2
12 SYNC OUT 2

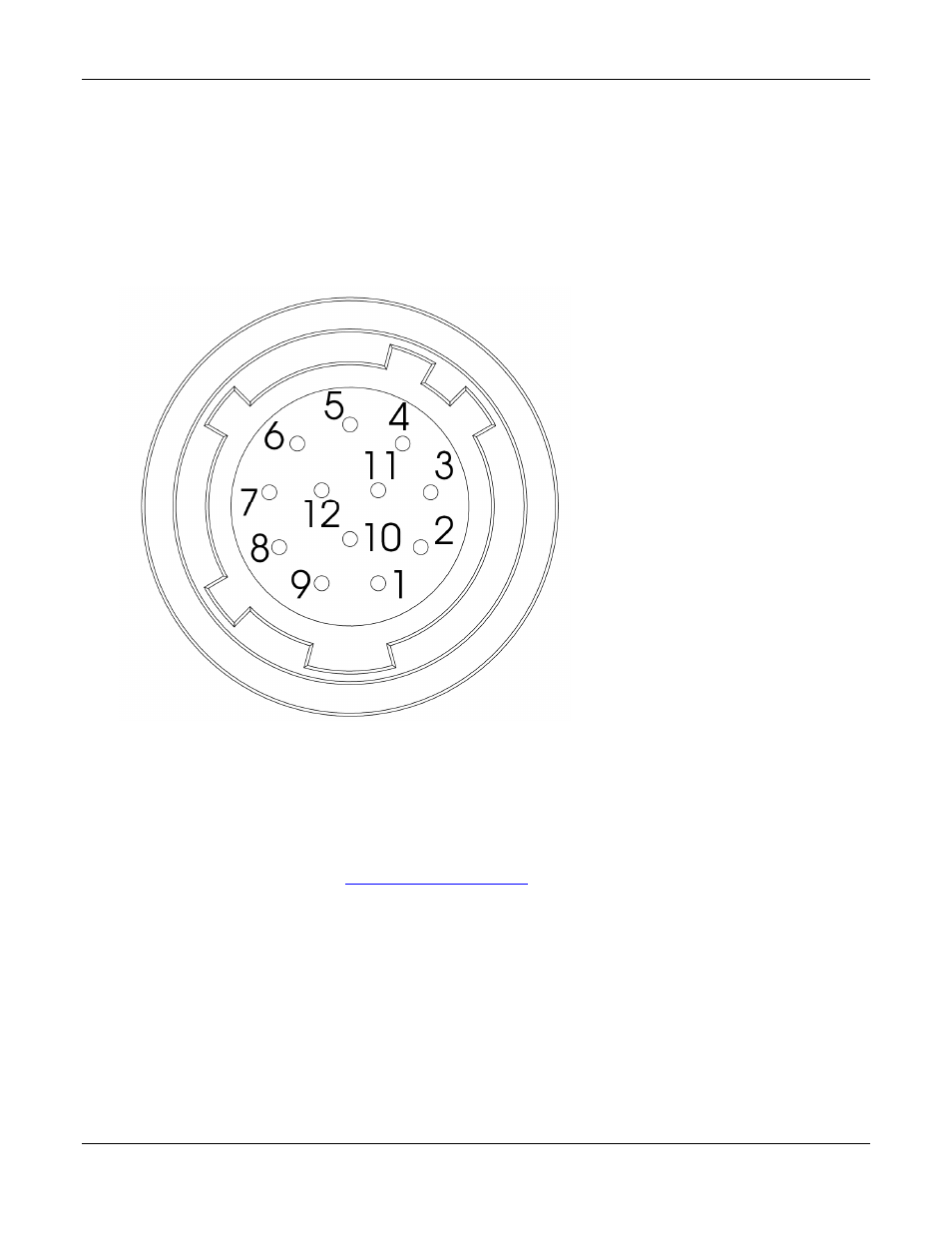

GENERAL PURPOSE IO PORT AS SEEN FROM
BACK OF CAMERA
The General Purpose I/O port uses a Hirose HR10A-10R-12PB connector on the camera side.
The mating cable connector is Hirose HR10A-10P-12S. This connector can be purchased from
AVT Canada Inc. or from
http://www.digikey.com . An open-ended cable assembly can also be
ordered from AVT Canada Inc. (Part number 02-6033A).
See Addendum for more detail.
POWER GROUND
This is the main ground of the camera circuitry and will be the return path for the external power
source. This connection must be provided to operate the camera. The conductor used for this
connection must be adequate for the current consumption of the camera. For best performance
the connection for POWER GROUND should be physically close to the EXTERNAL POWER
connection.
