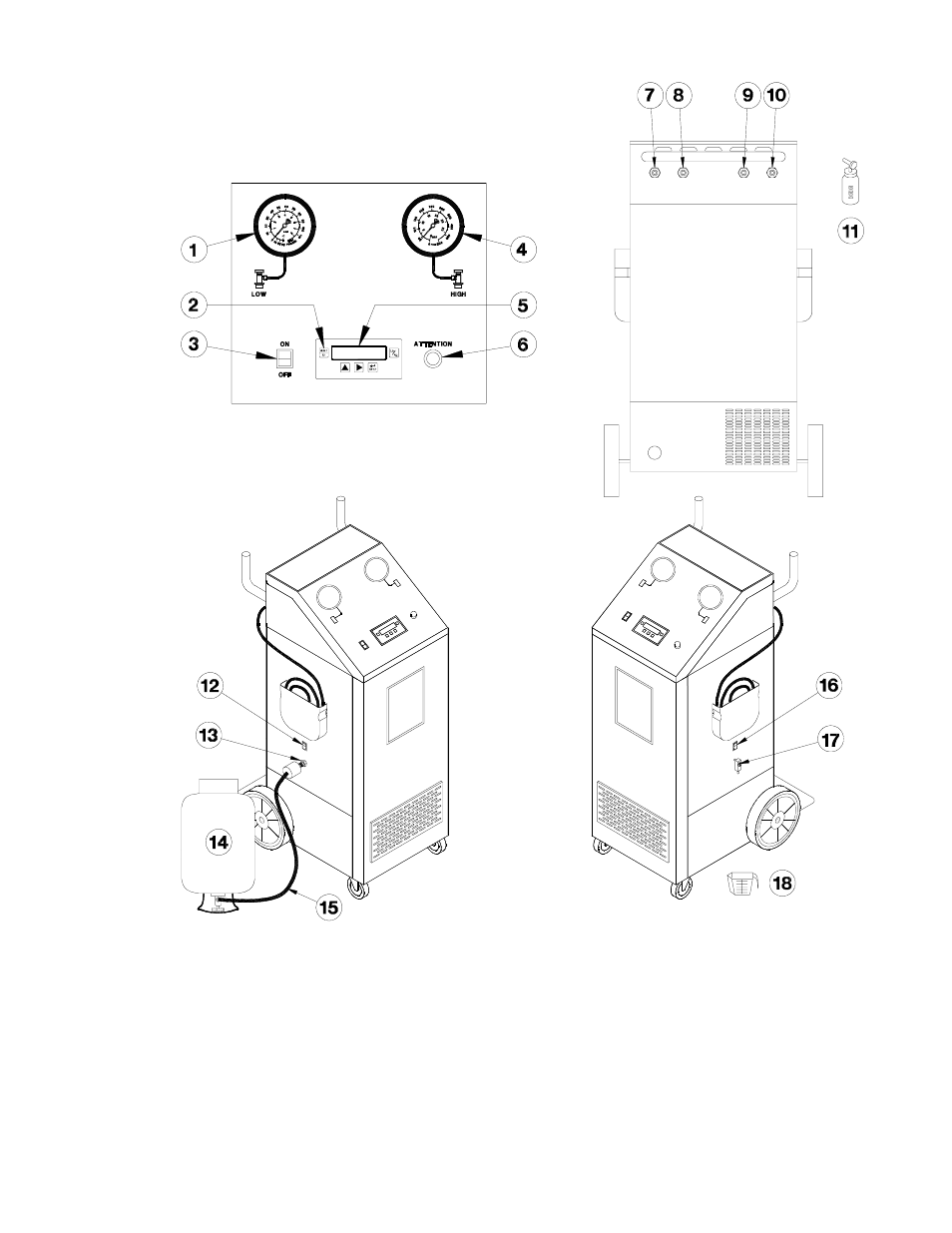

SETUP
1
Low Pressure Gauge
7
Oil Charge - High Side
13
Fill Port
2
Keypad
8
Red Hose - High Side
14
Refrigerant Cylinder
3
Power Switch
9
Blue Hose - Low Side
15
Yellow Hose w/Anti-blowback
4
High Pressure Gauge
10
Oil Charge - Low Side
16
Oil Drain Pressure Switch
5
Display
11
Oil Charge Bottle
17
Oil Drain
6
Attention Light
12
High/Low Charge Selector
18
Oil Measuring Cup
