SETUP

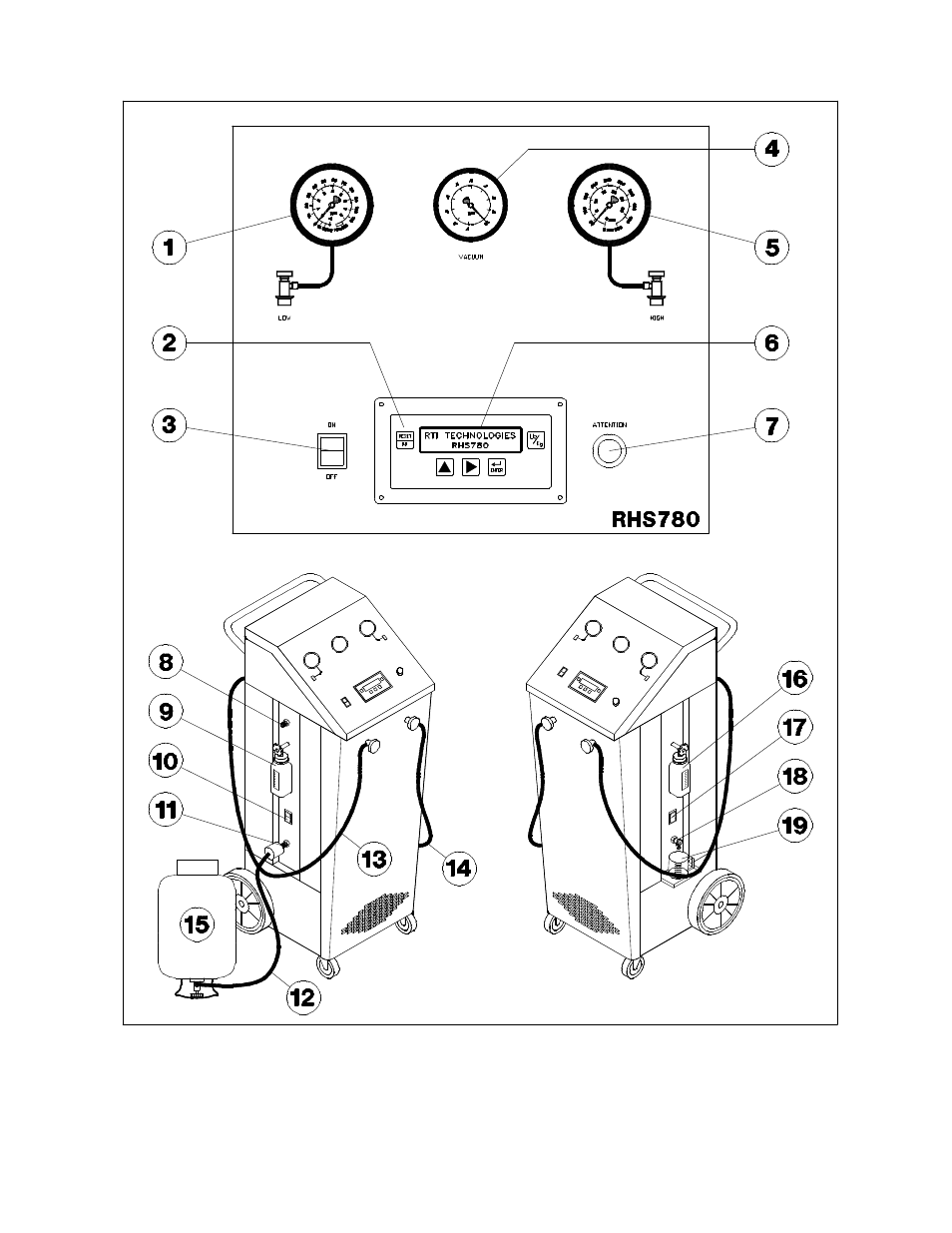

(1) Low Pressure Gauge (2) Keypad (3) Main Power Switch (4) Vacuum Check Gauge (5) High Pressure Gauge

(6) Display (7) Attention Light (8) Auxiliary Vacuum Gauge Port (9) Oil Charge Bottle {Low Side}

(10) High-Low Charge Selector Switch (11) Fill Port (12) Yellow Hose with Anti-Blowback Valve

(13) Blue Hose {Low Side} (14) Red Hose {High Side} (15) Refrigerant Cylinder (16) Oil Charge Bottle {High Side}

(17) Oil Drain Re-pressurization Switch (18) Oil Drain Valve (19) Measuring Cup
