W E I G H T = X X . X L B
A U T O M A T I C ? 5
>>>>>
ENTER
W E I G H T = X X . X L B
S E T U P ? 5
Calibration Switch
W E I G H T = X X . X L B
C H A R G I N G
>
O V E R C H A R G E
A M O U N T = X . X X K G 5
><
ENTER
Setting Over Charge Amount

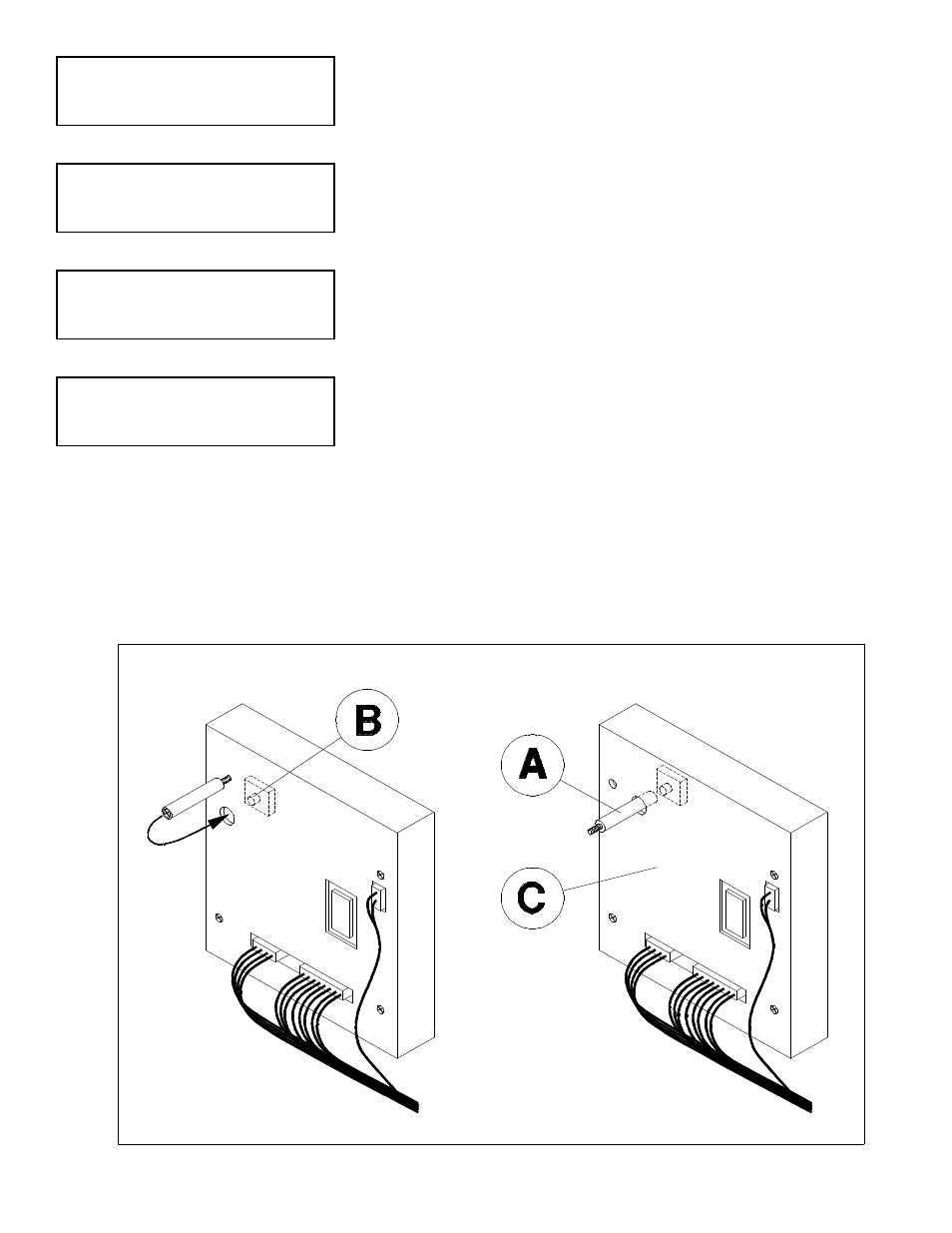

1. Remove the front panel of the RHS780.
2. Setup the RHS780 as shown on Page 4 and then turn the Main Power Switch (3)
ON. Refer to the figure below to locate the access hole to the Calibration Switch
(B) which is on the underside of the Circuit Board Cover (C) left of the LCD.
3. Remove the plastic “Calibration Tool”(A) from the lower mounting hole of the
Circuit Board Cover (C) next to the access hole to the Calibration Switch(B).
4. Using the Keypad (2), press the “Up Arrow” key five times to display “WEIGHT=
XX.X LB” “SETUP? 5”and press the Calibration Switch (B). The Display (6) will
read “WEIGHT= XX.X LB” “CHARGING”.
5. Press the “Up Arrow” key. The Display (6) will read “OVER CHARGE”
“AMOUNT= X.XX KG5”.
6. Press the “Up Arrow” key to change the value of the field. Press the “Right
Arrow” key to change to a different field. The value entered will be stored until
this procedure is run again and a new value is entered. Press the ENTER key
to accept the value. The Display (6) will then return to the Main Menu.
Note: 1 oz = 0.02835 Kg and 1 Lb = 0.45359 Kg
7. Replace the front panel of the RHS780.
Note: Calibration Tool Part No. 360-81214-00
