December 9, 2002

Page 4

SETUP

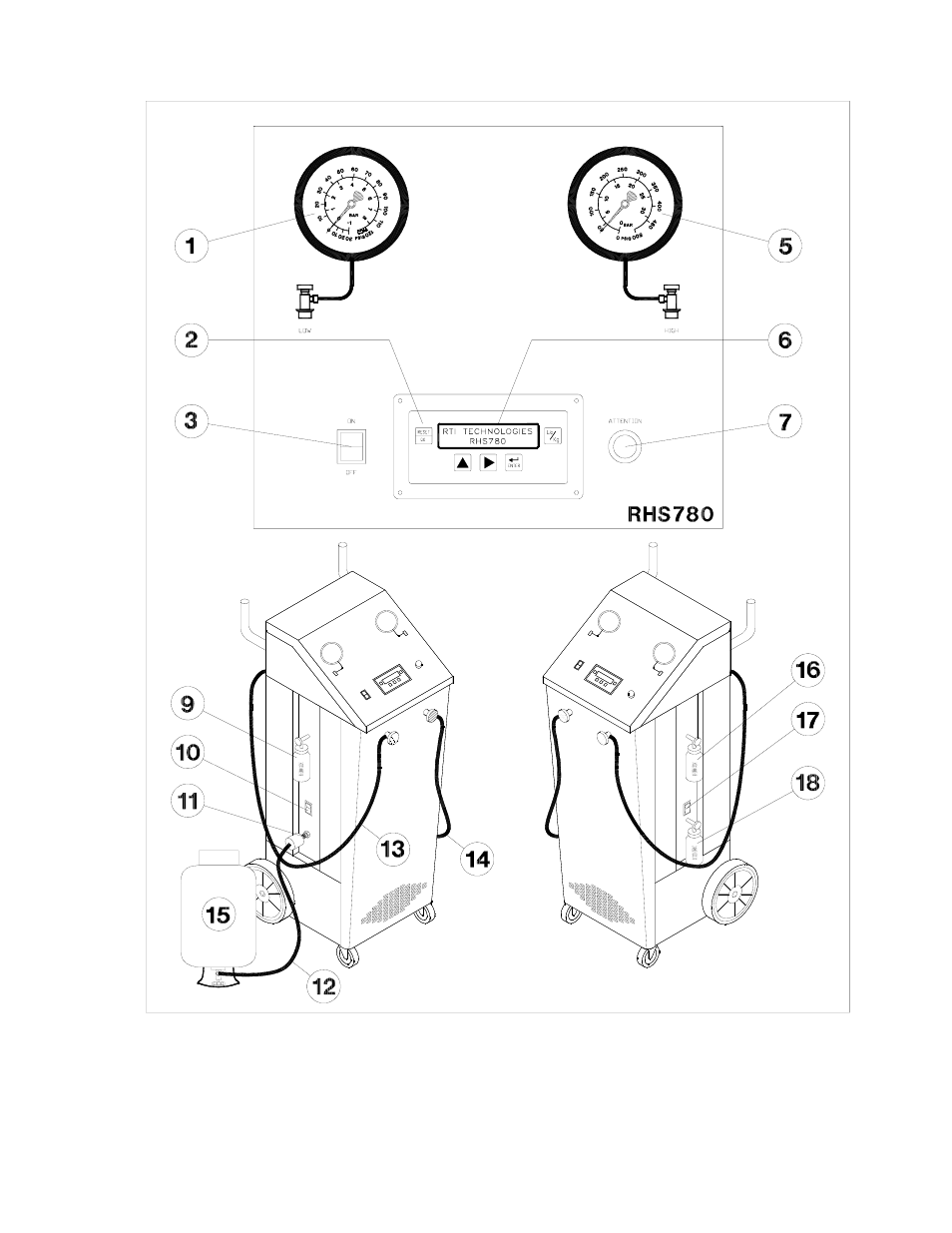

(1) Low Pressure Gauge (2) Keypad (3) Main Power Switch (5) High Pressure Gauge

(6) Display (7) Attention Light (9) Oil Charge Bottle {Mounted on Low Side}

(10) High-Low Charge Selector Switch (11) Fill Port (12) Yellow Hose with Anti-Blowback Valve

(13) Blue Hose {Low Side} (14) Red Hose {High Side} (15) Refrigerant Cylinder

(16) Oil Charge Bottle {Mounted on High Side} (17) Oil Drain Re-pressurization Switch (18) Oil Drain Bottle
