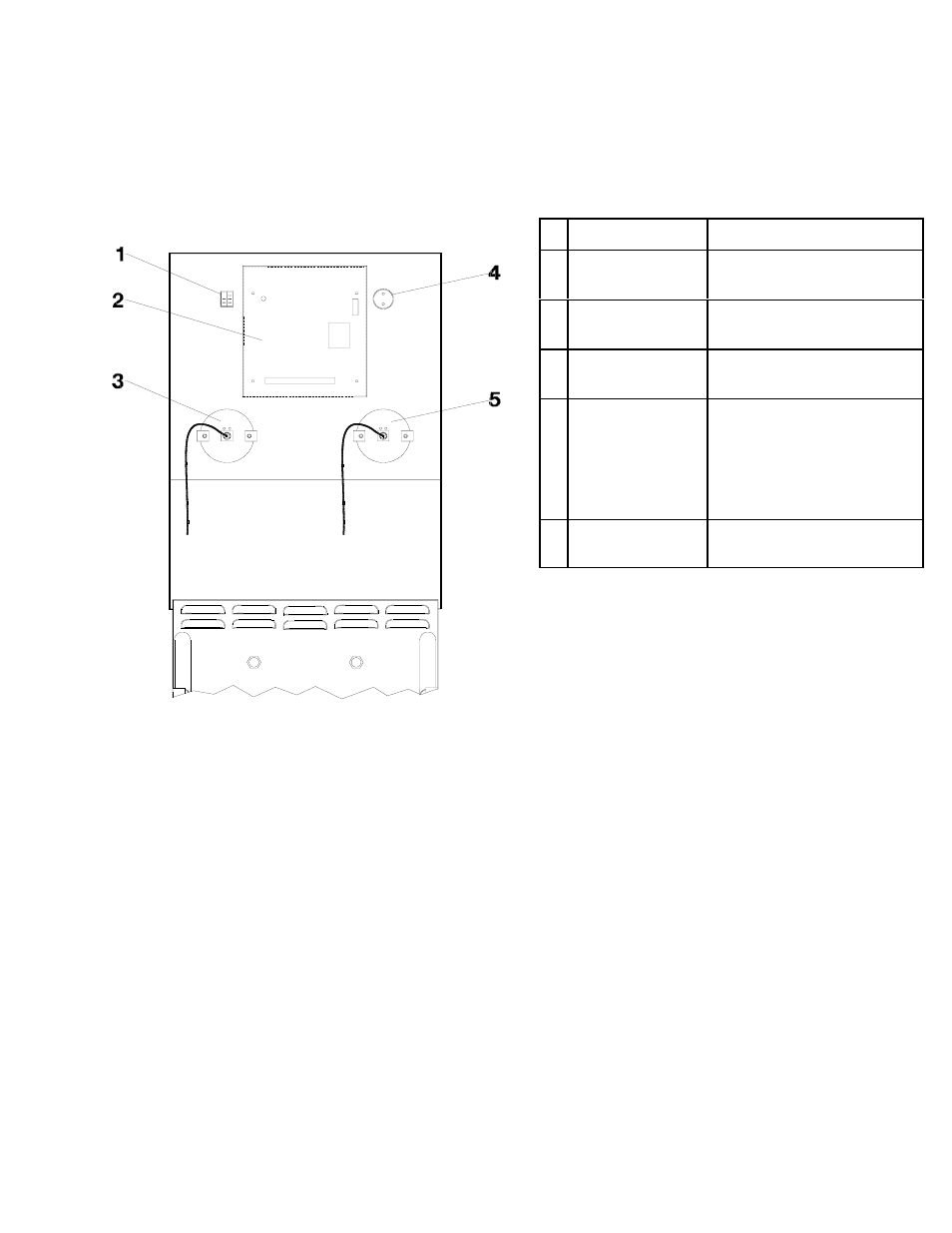

PARTS IDENTIFICATION
Top Panel
P/N
DESCRIPTION
1
024-80040-00
Rocker Switch SPDT
(on-on) Amber (125V)
2
024-80078-01
Circuit Board 120V
3
026-80065-03
Gauge 30"-120 Psig 1/4
MFL 3.5"
4
025-80046-00
025-80127-00
025-80191-00
Terminal RCPT
Clear Bulb Bayonet Base
120V
Lens Assembly Yellow
5
026-80071-03
Gauge 0-500 Psig
1/4 MFL 3.5"
