37

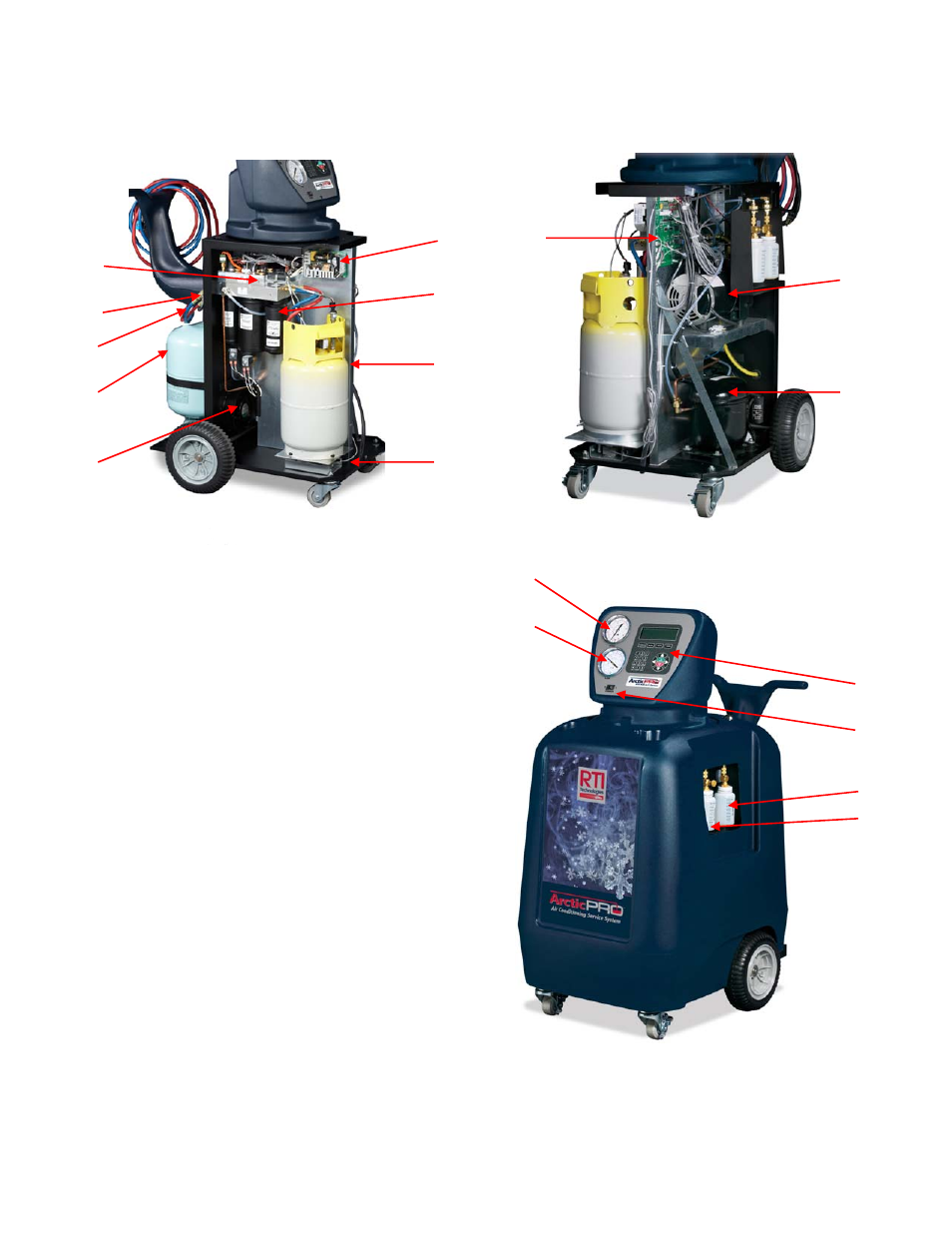

PARTS IDENTIFICATION
1 Manifold Assembly
2 In-line Hose Screen Filters
3 Service Hoses
4 New Refrigerant (not included)
5 Condenser Fan
6 Control Power Supply
7 Combo Filter
8 Charge Cylinder
9 Load Cell
10 Calibration Ball
11 Control Board
12 Vacuum Pump
13 Compressor (Maintenance Free)
14 High Pressure Gauge
15 Low Pressure Gauge
16 Display & Keypad
17 Power Switch
18 Oil Drain Bottle
19 Oil Fill Bottle (Not available for
RHS980 unit servicing Hybrid vehicles)
17
14
15
16
18
1
2
3
4
5
6
7
8
9
11
12
13
19
