IDENTIFICATION OF PARTS
SEPARATED COMBUSTION BLOWER UNIT HEATERS

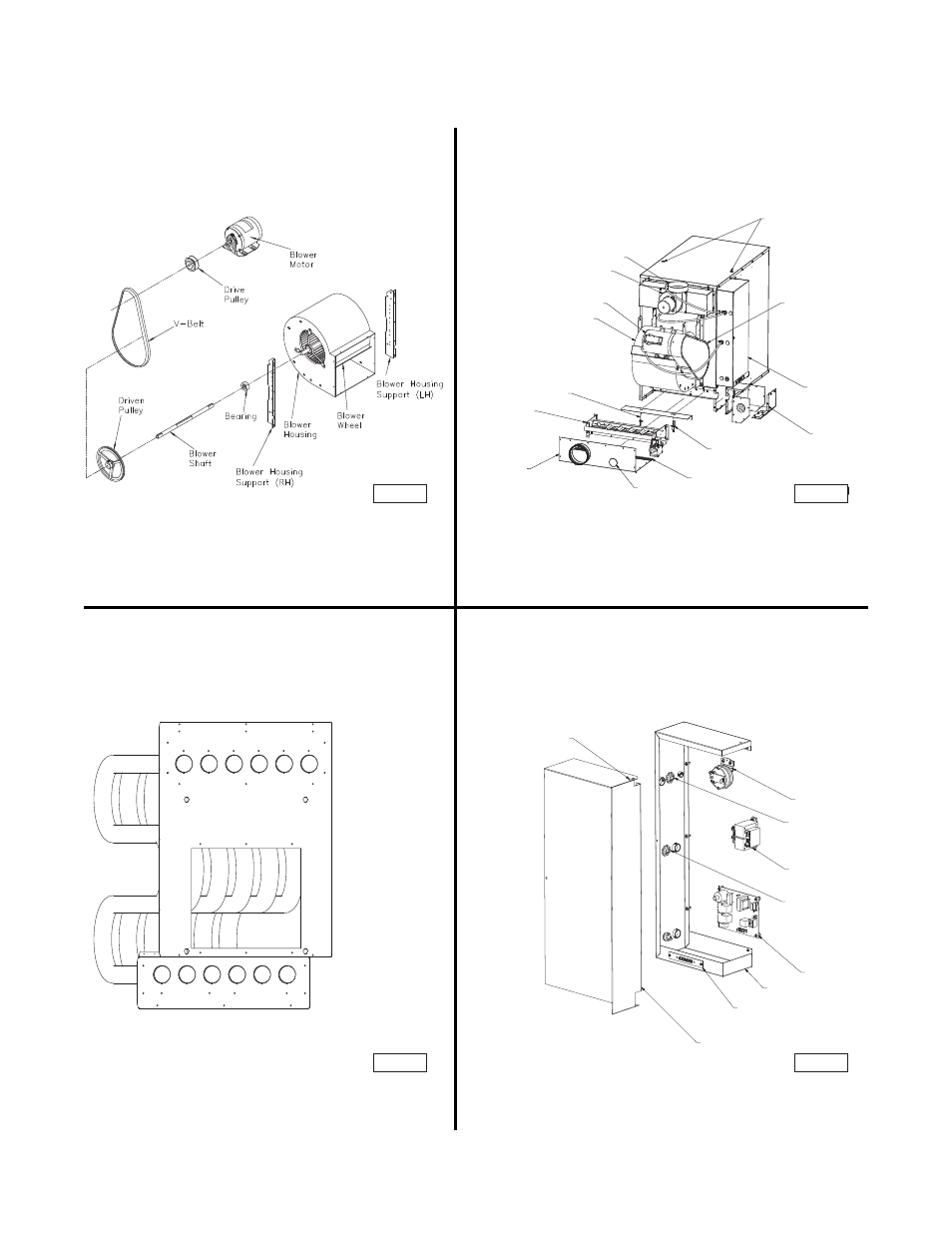

Figure 13 - Vestibule Panel / Tube Assembly
Figure 14 - Electrical Control Panel Assembly
Figure 11 - Blower Parts
Figure 12 - Component Parts
D8928
D9064
Electrical Control
Panel Door
Pressure Switch
Accordian Fastener
Control Board
Terminal Block
Base
Power Venter
Connection
Fan Motor
Connection
Transformer
D9049
Burner Cover Panel
Ignitor
Flame Sensor
Sight Glass
Blower
Motor
Power Vent
Assembly
Flue
Hanger Locations
Manifold Burner
Assembly
Electrical Control
Panel Assembly
Belt Guard
Bracket Assembly
Hinge
D8925B
D8928
D9049
D9064
