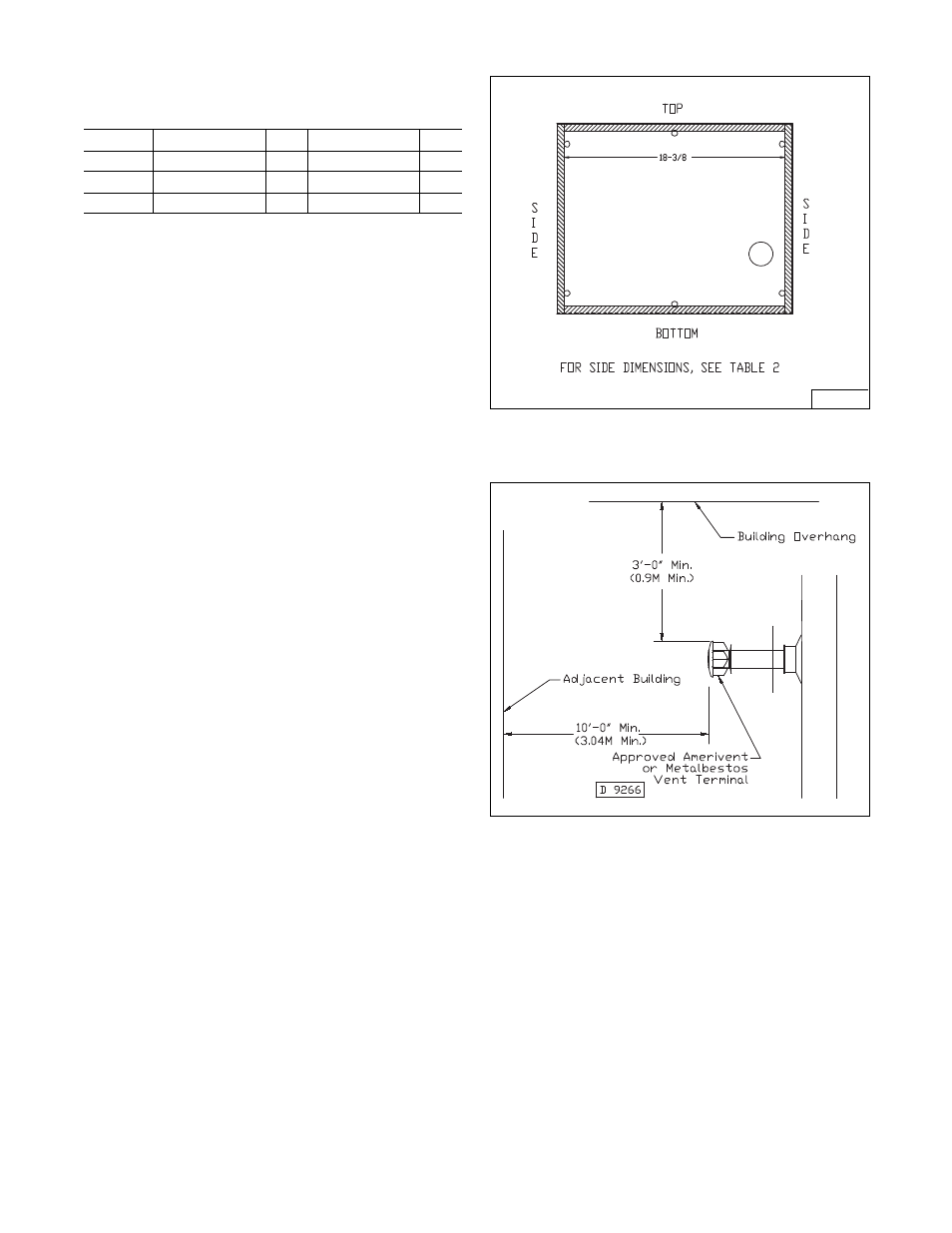

Figure 4 - Horizontal Vent Termination Location
AIR INLET COLLAR
Remove screen and mounting plate from air inlet on
rear panel of unit by removing 4 screws. Secure inlet
collar and gasket to inlet opening re-using the 4 screws
removed in previous step.
ACCESS PANEL SEAL
Cut gasket to lengths listed in Table 2. Remove paper
backing and adhere to access panel making certain
that the entire perimeter is covered (Figure 3).
POWER SUPPLY INLET
After powerline is run to main control board, seal gap
between cord and hole in rear panel with silicone
sealant.
HORIZONTAL TERMINATION
Select a location on outside wall for vent terminal.
In most applications, the terminal should be on level
with the flue outlet of the unit, less a 1/4 inch per
foot (21mm/m) pitch for condensate drainage toward
the outside of the building. See Table 1 and Figures 4
and 5.
Cut hole through wall for 6 inch (152mm) combustion air
pipe. Install thimble if required by local codes or type of
wall construction.
Combustion air inlet box may be fastened directly to
wall or spaced away from wall using suitable brackets
(fi eld supplied). Cut length of 6 inch pipe so that it will
protrude 4 inches (102mm) through the wall when the
box is mounted in position. Fasten pipe to box with sheet
metal screws, using at least 3 screws per joint. Seal joint
with high temperature silicone sealant.
Figure 3 - Access Panel Seal Table 2
Top/Bottom Right/Left
Unit Gasket Gasket
Size Length (In) Qty Length (In) Qty
030 18 3/8 2 12 3/8 2
045 18 3/8 2 12 3/8 2
060 18 3/8 2 15 7/8 2
075 18 3/8 2 15 7/8 2
D-8615
