EKI-1351/1352 User Manual 14
2.3 Connecting Hardware
Next, we will explain how to find a proper location for your EKI-1351/1352, and then
explain how to connect to the network, hook up the power cable, and connect to the
EKI-1351/1352 serial port.
2.3.1 Choosing the Location
Due to its versatility and innovative design, EKI serial device server can be:
„ Fixed to a panel mount
„ Fixed to a DIN-rail.
2.3.2 Panel/Wall Mounting
The EKI-1351/1352 can be attached to a wall using the included metal brackets.
Each bracket comes with four screws; and then you can install the device firmly via
the components, please see the figure as below.

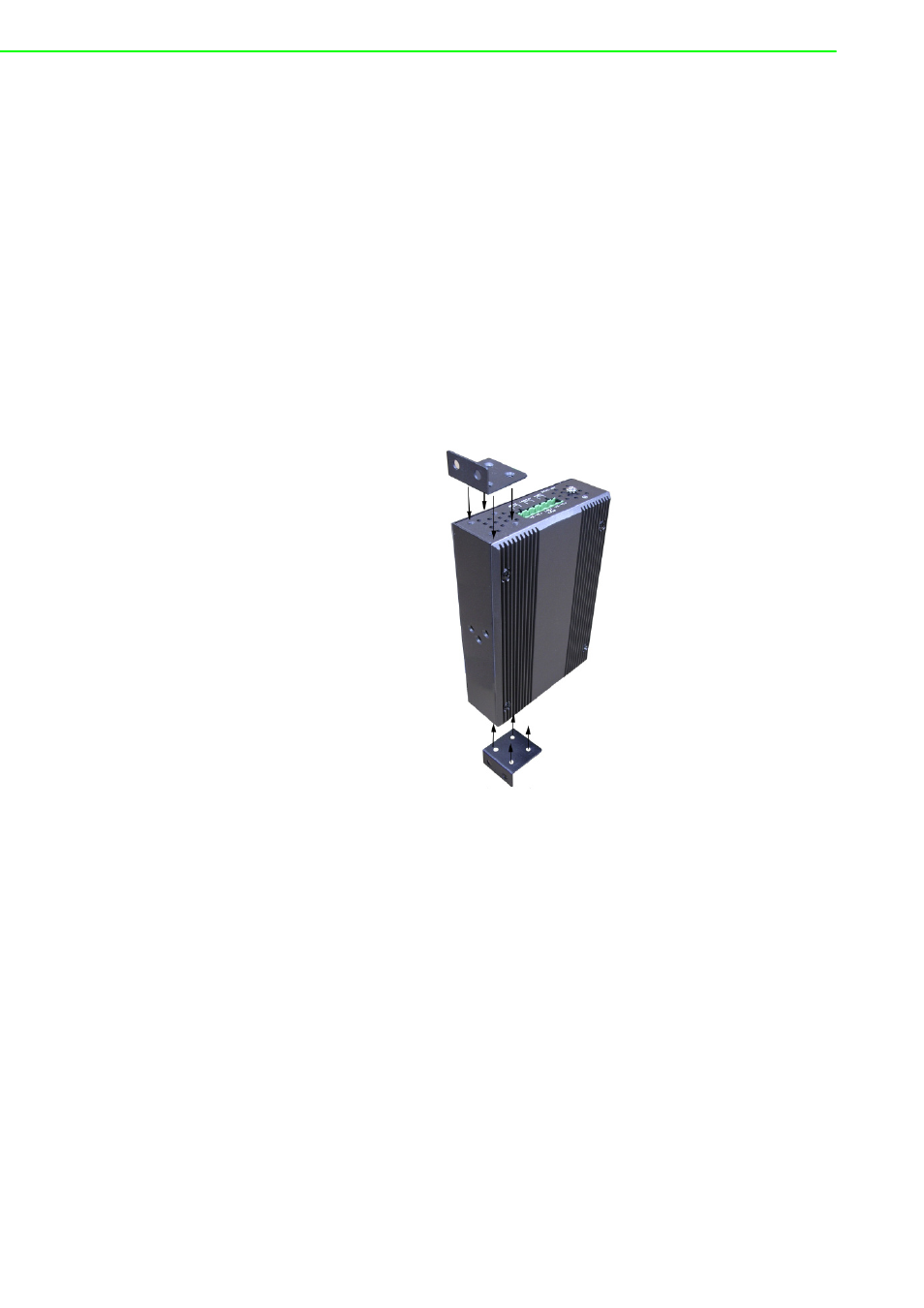

Figure 2.11 Combine the Metal Mounting Kit
