Yokogawa FD20 Immersion Fitting User Manual
Page 13
IM12B6K2-01E-E
13
KCI-Reservoir
K1500FU
Silicone tubing
K1500GA
O-Rings
K1500BZ
Electrode

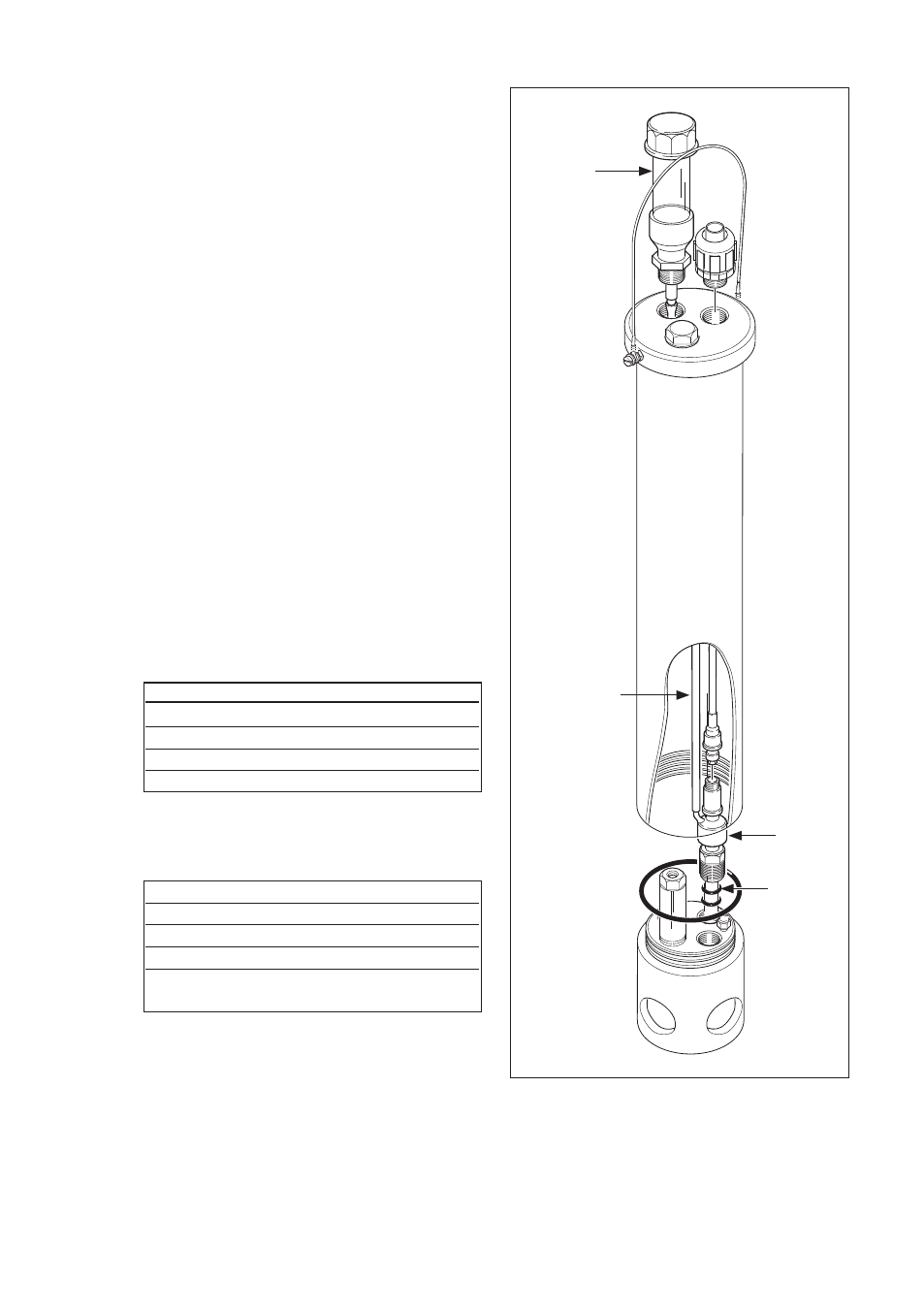

Fig. 4-2. Mounting of refillable electrodes
with a long glass shaft
4-2. Mounting kit (order nr. K1500BY)
This mounting kit replaces the standard
electrode mounting set so that Yokogawa
refillable electrodes with a long glass shaft
can be mounted in a fitting.
The mounting set may be used at process
pressures up to 3 bar. Higher pressure
ratings require the standard mounting set
and consequently, electrodes with DIN-
dimensions.
Figure 4-2 shows the mounting.
Note:
The pressure on the KCI-solution must
always exceed the liquid pressure.
The refillable electrodes can be connected
to a KCI-reservoir via a silicone tubing
(see figure 4-2). The pressure on the
KCI-solution and consequently, the liquid
outlet of the electrode can be increased by
mounting the reservoir on top of the fitting.
This prevents penetration of the process
liquid into the electrode.
Electrode to be used*
Order nr.
Description
SR20-AC52 Reference electrode
SR20-AS52 Reference electrode
SC21-AGC52 Combined pH/ref. electrode
SC21-ASC52 Combined pH/ref. electrode
* For specifications see seperate sheets.
Parts and accessories
Order nr. Description
K1500BY Mounting kit
K1500FZ O-ring for mounting kit
K1500GF 250 ml, KCI-solution (1 m.)
K1500GG 250 ml, KCI-solution (1m.),
thickend
