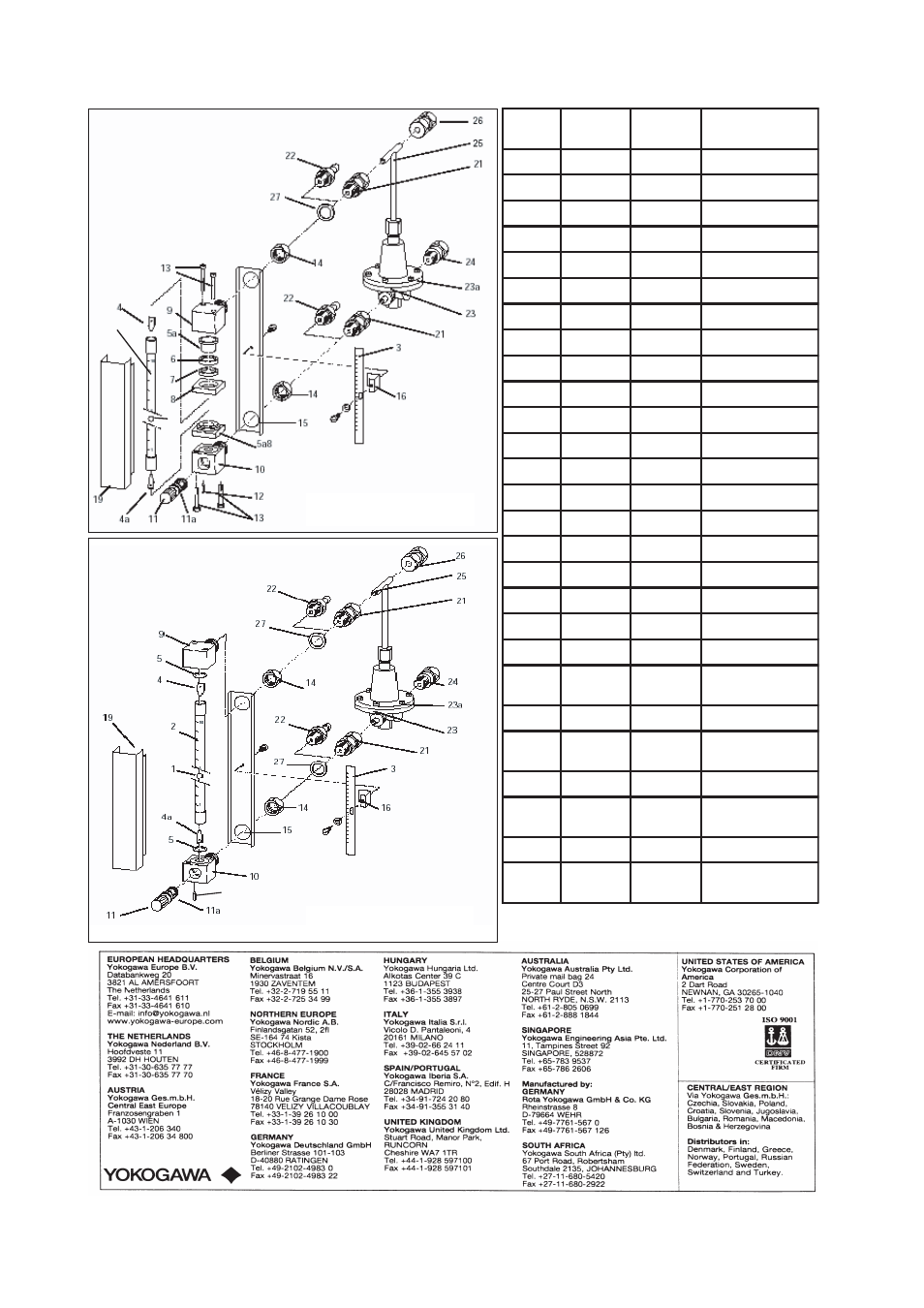

F2.EPS

RAGL

2

1

F3.EPS

RAGK

12

No.

Quantity

RAGL

Quantity

RAGK

Description

1

1

1

Float

2

1

1

Measuring tube

3

1

1

Exchangable scale

4

1

1

Top stop

4a

1

1

Bottom stop

5

-

2

O-ring gasket

5a

2

-

Gasket

6

2

-

Ring

7

2

-

Ring

8

2

-

Pressure lange

9

1

1

Top head

10

1

1

Bottom head

11

1

1

Complete valve

11a

2

2

O-ring

12

1

1

Screw

13

4

-

DIN 84 screw

14

2

2

Nut

15

1

1

Rear plate

16

1

1

Scale holder

19

1

1

Cover

21

2

2

Cutting ring

threated joint

22

2

2

Hose nozzle

23

1

1

Differential pressure
control

23a

1

1

Diaphragm

24

1

1

Cutting ring

threated joint

25

1

1

Joining piece

26

1

1

Cutting ring

threated joint
