23
6.3.2 Replacing the Drive Belt
•
Stop engine and remove the key and wait for all moving parts to stop.
•
Remove deck covers.
•
Remove drive belt access panel.
•
Remove cutter deck engine to blade belt from clutch.
•
Raise front of unit and secure
•
Remove the clutch stop
•

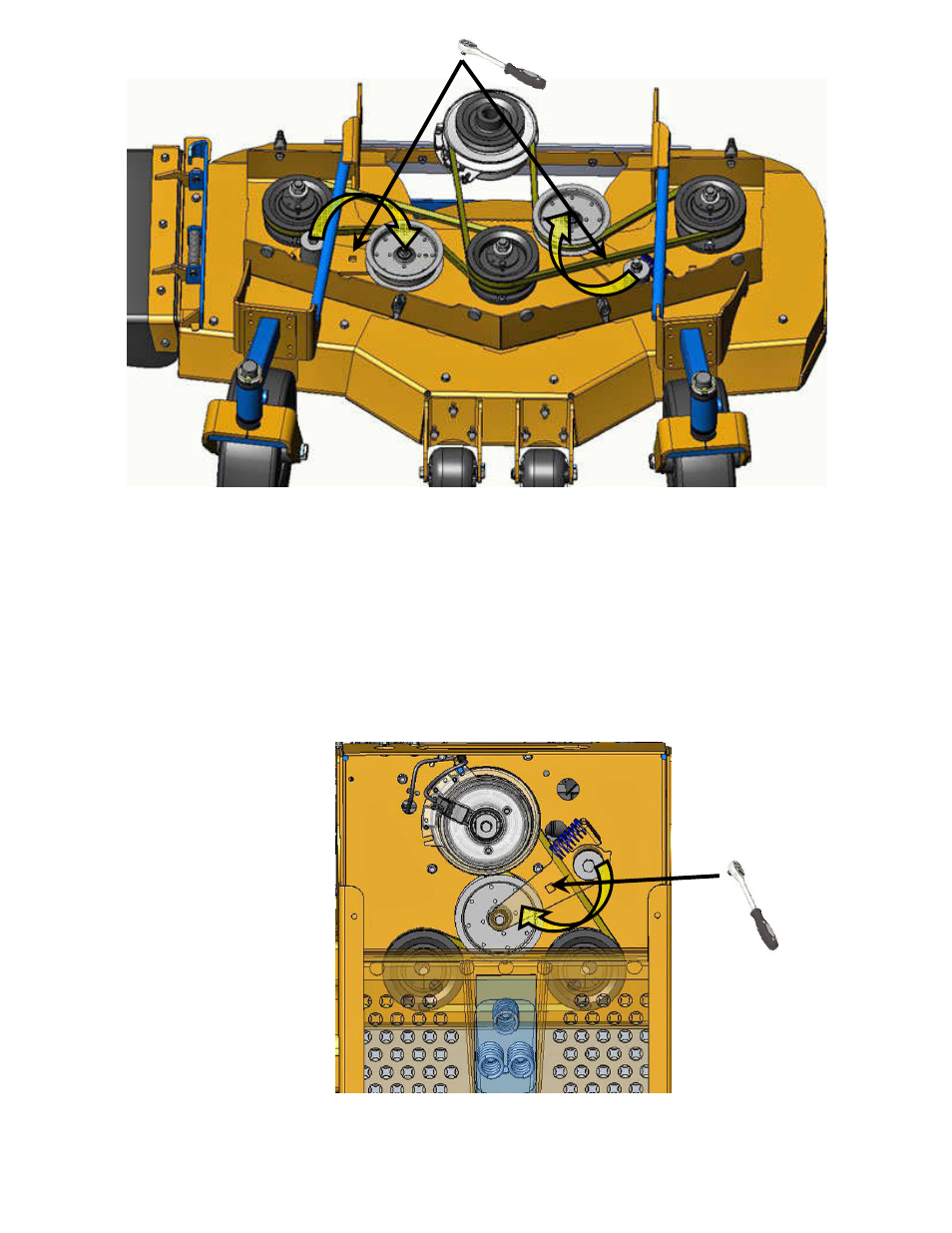

Remove belt by using a ½” ratchet and extension to relieve belt tension.
•
Reinstall in reverse order. Figure shows belt configuration.
NOTE: Ensure clutch stop is reinstalled.
