13

15

14

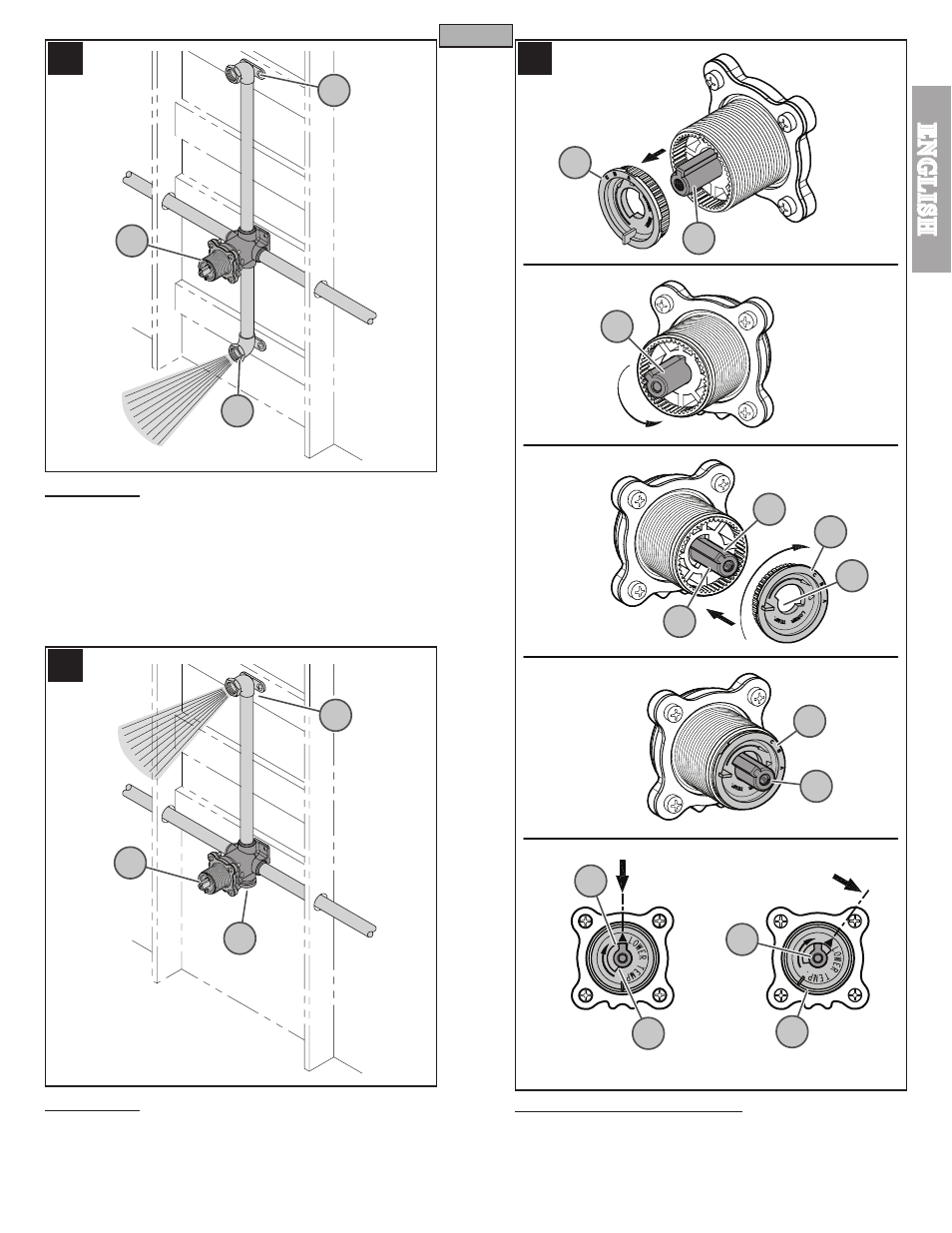

13 FLUSHING

For Tub and Shower Combinations

Turn on water supply lines by rotating Stem (13A) counterclockwise allowing

water to flow from tub spout outlet (13B) until all foreign matter has cleared the

line. Water should not be flowing from shower outlet (13C) during this test. If

water is flowing from shower outlet, please check your valve to see that the

casting mark “SHWR” is facing up (see step 4).

14 FLUSHING

For shower Only Installation

Be sure to plug Bottom Outlet with Pipe Cap or Plug (14A) using Thread Sealant.

Rotate stem (14B) counterclockwise, allowing water to flow from shower outlet

(14C) until all foreign matter has cleared the line.

If water flow becomes low or no flow at all, (refer to Step 20).

15 TEMPERATURE ADJUSTMENT

Adjustment Gear (15A) is factory-set to prevent stem from reaching full hot

position. To adjust stem rotation: Remove Adjustment Gear (15A). Rotate

Stem (15B) counterclockwise to determine a maximum desired temperature.

Replace Gear (15A) aligning Adjustment Stop (15C) to stem Tab Surface (15D)

so Stem (15B) cannot move beyond adjusted point.

5

ENGLISH

ENGLISH

LIMITED TRAVEL

FULL TRAVEL

13A

13B

13C

14B

14A

14C

15A

15B

15B

15B

15A

15C

15D

15A

15B

15D

15A

15B

15C
