ENGLISH

ENGLISH

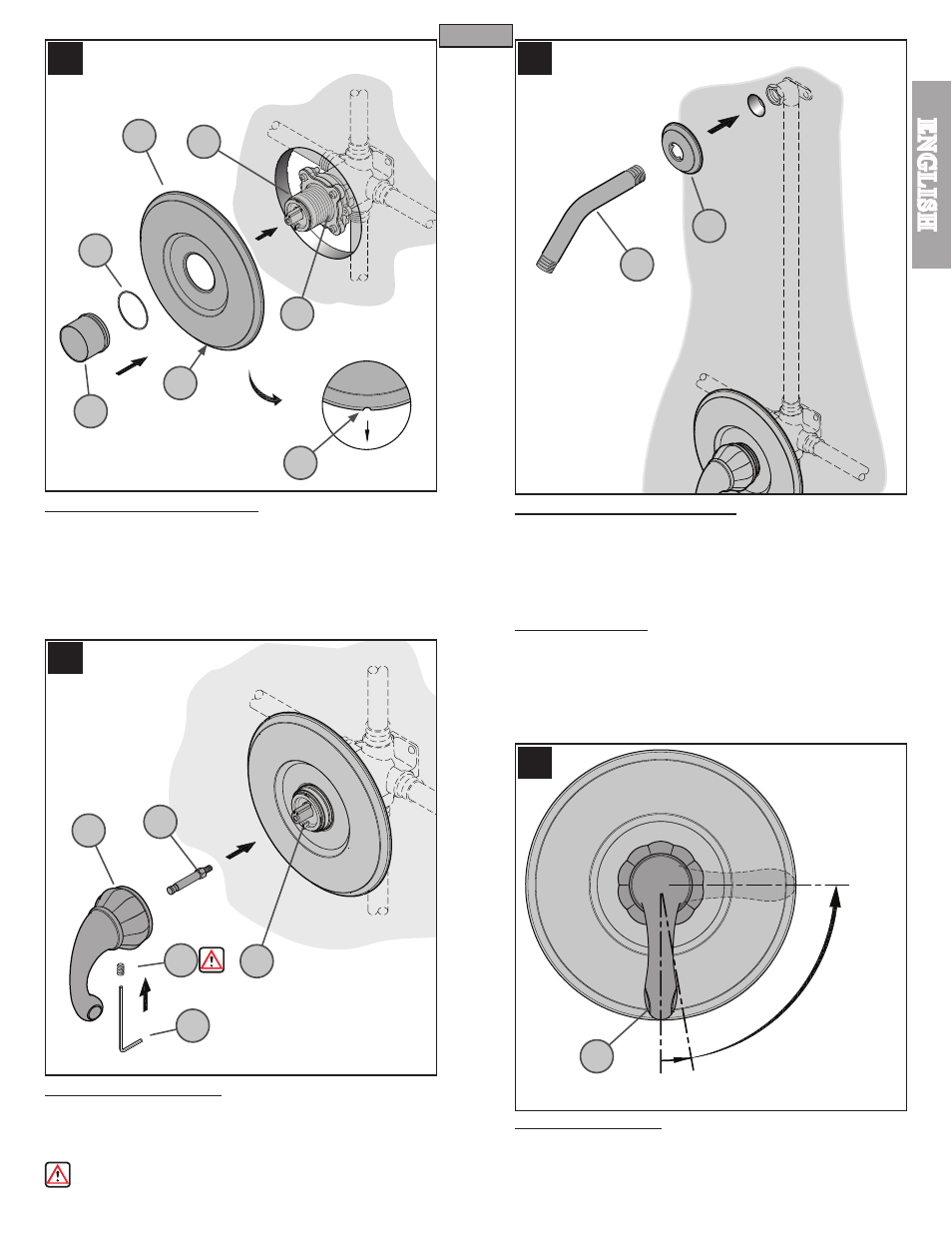

7 TRIM FLANGE ATTACHMENT

Position Flange (7A) on Valve (7B) with Drain Hole (7C) at the bottom. Place

Protective Washer (7D) on the short end of the reversible Retainer Sleeve (7E).

Screw Retainer Sleeve (7E) onto threaded section of the Stem and Bonnet (7G).

Tighten Retainer Sleeve (7E) by hand until Flange (7A) is snug to finished wall

surface. If the short end of the Retainer Sleeve (7E) is too short, reverse it to

use the longer end.

8 HANDLE ATTACHMENT

Screw Stem Extender (8A) onto Valve Stem (8B). Thread Set Screw (8C) into

Handle (8D) and thread it in only three to four turns. Place Handle (8D) onto

Stem Extender (8A) and tighten Set Screw (8C) by using Hex Wrench (8E) that

is provided.

Make sure Set Screw (8C) is securely tightened to handle (8D).

10 UNIT START UP

Turn on hot and cold water supplies, and check all connections for leaks.

9 SHOWER ARM INSTALLATION

Insert the end of Shower Arm (9A) through the Shower Flange (9B).

Apply PTFE plumber's tape to both ends of Shower Arm (9A) according to

manufacturer's instructions. Screw the end of Shower Arm (9A) into pipe elbow

inside the wall. Slide Shower Flange (9B) tight to the wall.

11 VALVE FUNCTION

By rotating the Lever Handle (11A) slightly counterclockwise, the valve will

be fully activated to the “COLD” position. The water temperature can be

increased by continuing to rotate the Lever Handle (11A) in a counterclockwise

direction.

FULL HOT

FULL COLD

CLOSED

OPEN

11A
