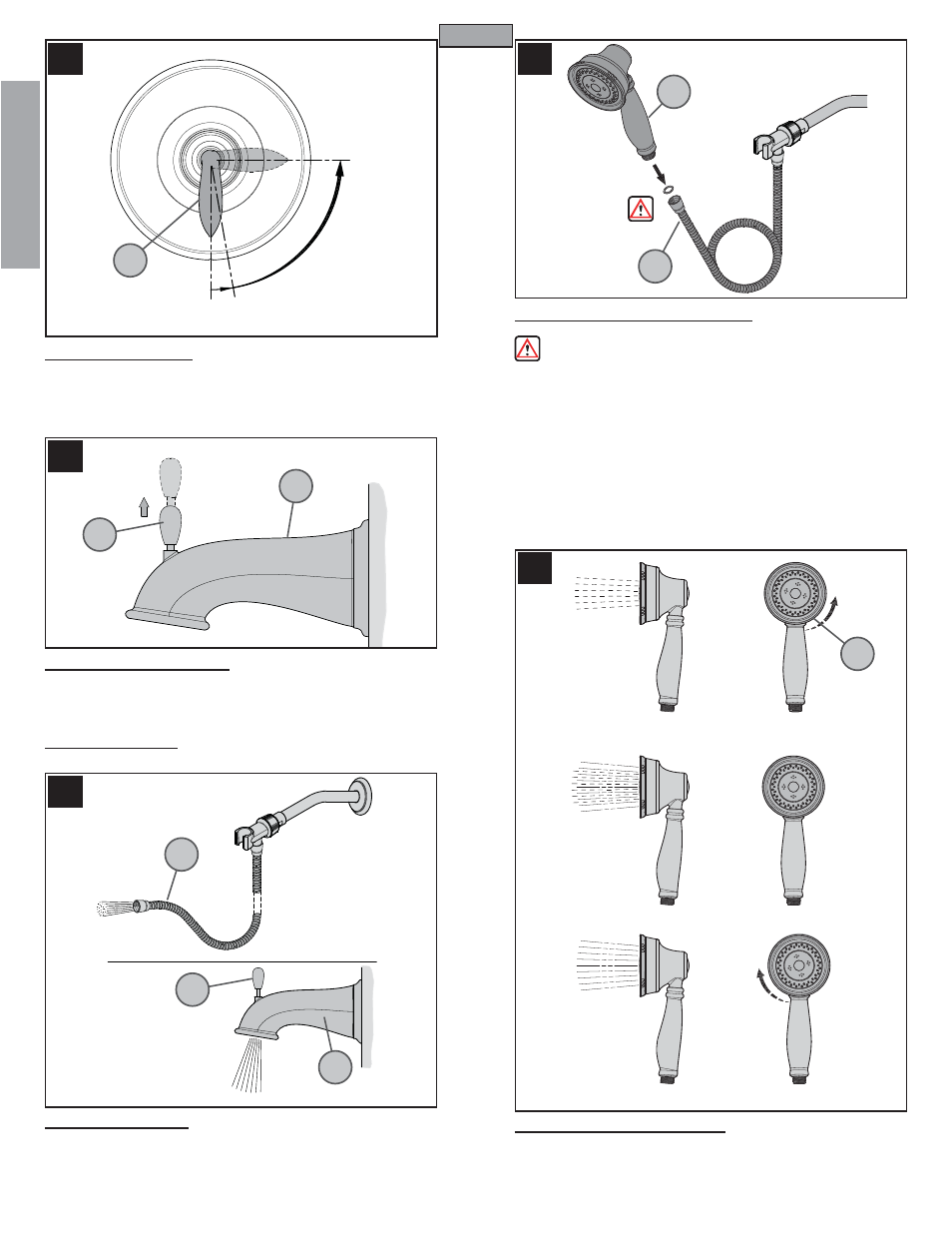

14 UNIT START UP
Turn on hot and cold water supplies, and check all connections for leaks.
16 SHOWER HEAD INSTALLATION
Thread Hand Shower (16A) onto Hose (16B).
Make sure Hand Shower (16A) is securely tightened to Hose(16B).
15 FINAL FLUSHING
For fi nal fl ushing, turn valve on and allow water to run through the Tub Spout
(15A) for several minutes. Pull Spout Knob (15B) up to allow water to run through
Shower Hose (15C). Allow water to run for several minutes untill all foreign matter
clears the line.
13 TUB SPOUT FUNCTION
When the valve is turned on, water normaly fl ows through the Tub Spout (13A).
To activate the shower, turn valve on and pull the Knob (13B) up. Hold on until
water fl ows continiously from the shower arm.
17 HAND SHOWER FUNCTION
To adjust spray, turn switch (17A) to a desired spray pattern.
Right: Pulsating.
Center: Pulsating with Full Spray.
Left: Full Spray.
12 VALVE FUNCTION
By rotating the Lever Handle (12A) slightly counterclockwise, the valve will
be fully activated to the “COLD” position. The water temperature can be
increased by continuing to rotate the Lever Handle (12A) in a counterclockwise
direction.
4
UP
For
Shower
13A
13B
15A
15B
15C
16A
16B
17A
CENTER
RIGHT
LEFT
FULL HOT
FULL COLD
CLOSED
OPEN
12A
