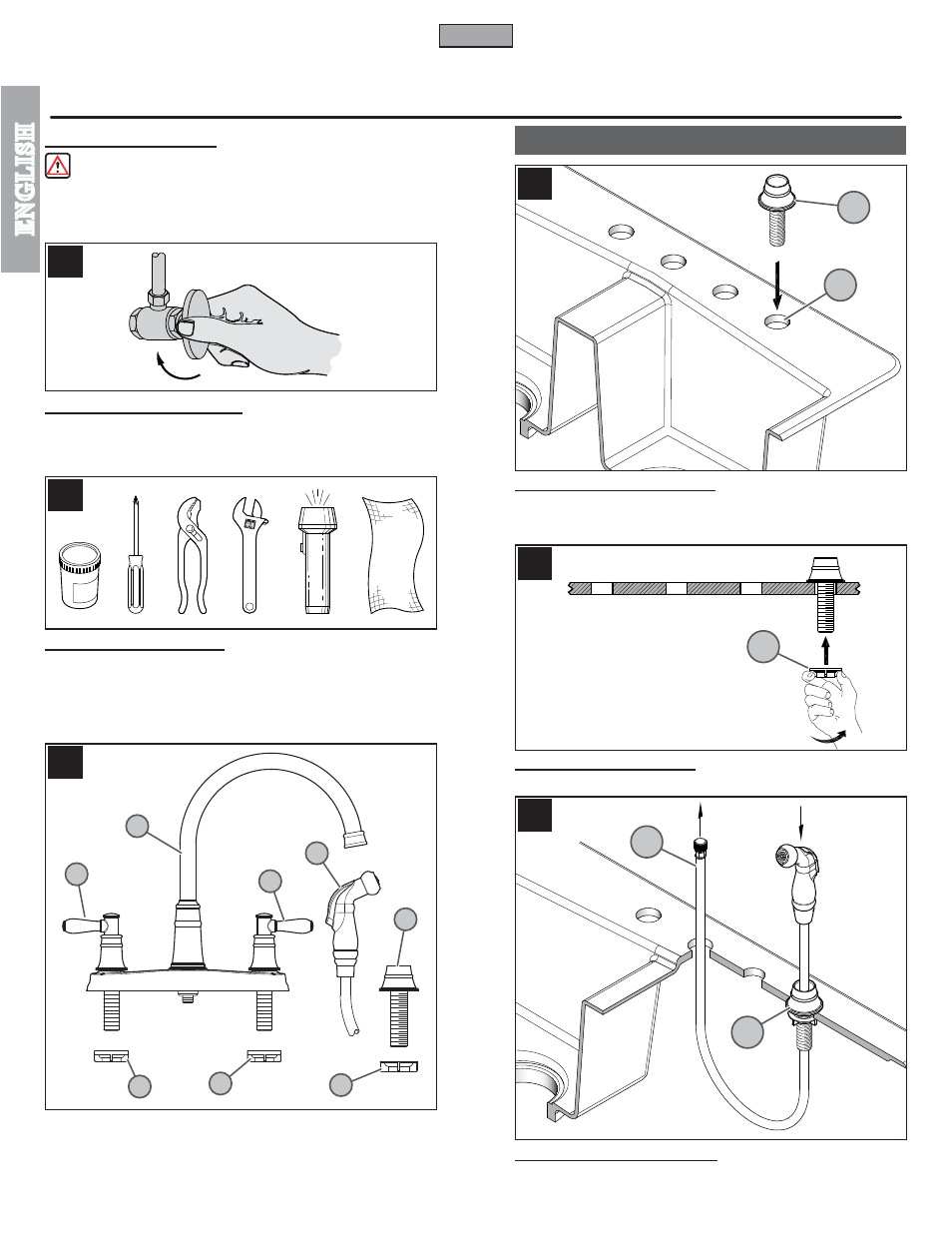

FAUCET INSTALLATION
5
6
7
Thank you for purchasing this Price Pfister product. All Price Pfister products are carefully engineered, and factory tested to
provide long trouble-free use under normal conditions. This product is easy to install using basic tools and our easy to follow
illustrated instructions. If you have any questions regarding this product, call 1-800-Pfaucet (1-800-732-8238).
1 BEFORE PROCEEDING
WARNING: Read all the instructions completely before proceeding. Price Pfister
recommends calling a professional if you are uncertain about installing this product!
This product should be installed in accordance with all local and state plumbing and
building codes.
2 SHUT OFF WATER SUPPLY
Locate water supply inlets and shut off the water supply valves. These are usually found
under the sink or near the water meter. If you are replacing an existing faucet, remove
the old faucet from the sink and clean the sink surface thoroughly.
3 TOOLS RECOMMENDED
• Plumber’s putty • Phillips head screwdriver • Pliers
• Adjustable wrench • Flashlight • Cloth
Your installation may require new supply lines and / or shut-off valves or other additional
tools.
Upon opening the box, check to ensure that all of the following items are included:
A Faucet Body B Handles (2x) C Side Spray
D Hose Guide with Flange E Locknuts (3x)
If any of these items are missing, please contact Price Pfister Consumer Services at
1-800-Pfaucet (1-800-732-8238).
5 CONNECTING HOSE GUIDE
Apply a small bead of plumber’s putty (make sure to follow manufacturer’s
recommendations on use) to bottom inside edge of Hose Guide (5A). Mount Hose
Guide (5A) in far right hole in sink (5B).
6 SECURING HOSE GUIDE
Secure Hose Guide using Locknut (6A). Hand tighten.
7 SIDE SPRAY INSTALLATION
Insert the Side Spray Hose (7A) through the Hose Guide (7B). From underneath sink, feed the
Side Spray Hose (7A) back up through the center hole of sink so that it is above the sink.
