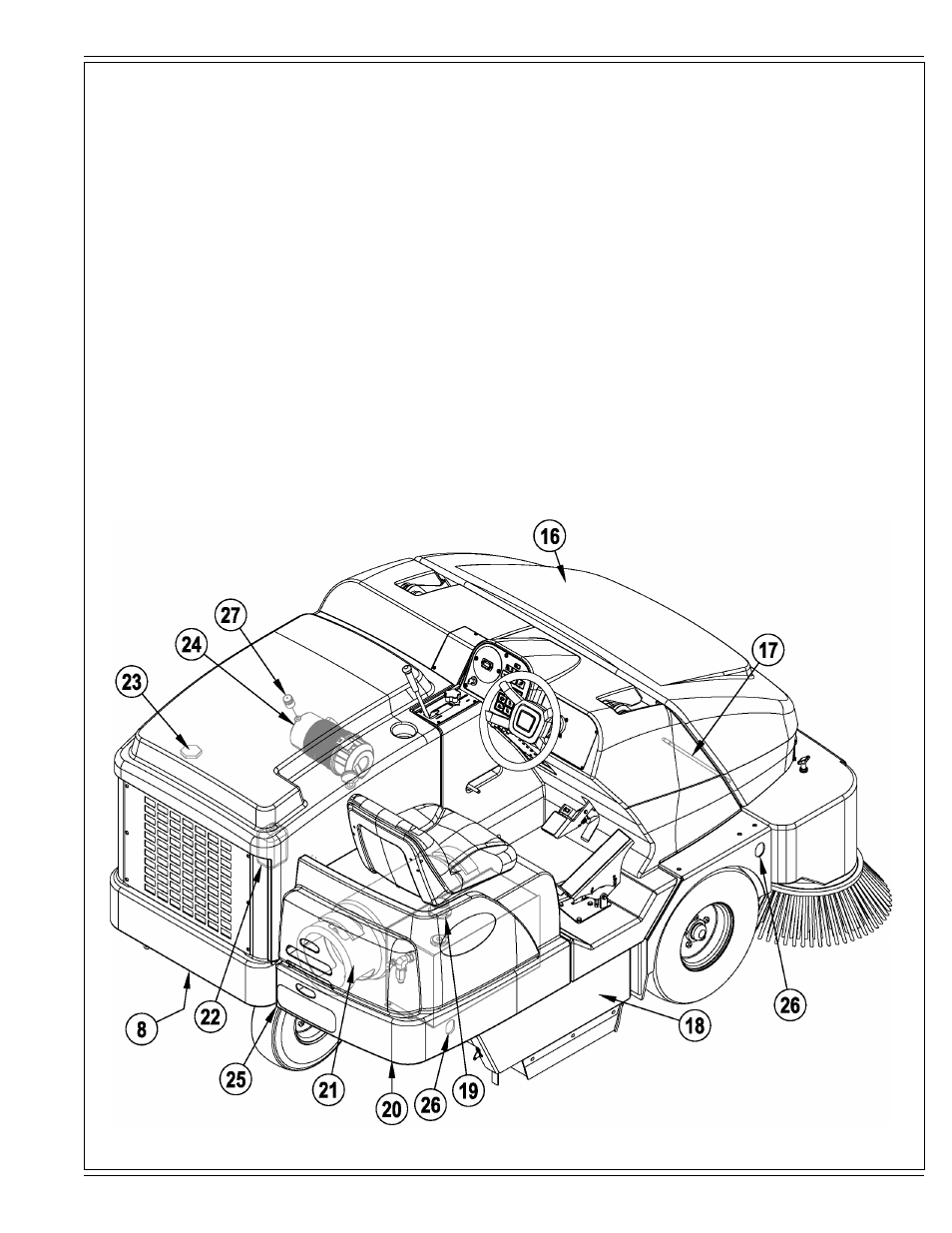

KNOW YOUR MACHINE (CONTINUED)
16 Hopper
Cover
17 Hopper Cover Prop Rod
18 Right Side Main Broom Access Panel
19 Oil
Reservoir
20 Oil Reservoir / Fuel Tank Cover
21 Fuel Tank (LPG tank shown / Gasoline tank is in same location)
22 Coolant Recovery Tank (3 cylinder & diesel location)
23 Radiator
Cap
24 Engine Air Filter (3 cylinder & diesel location)
25 Fuel Tank Cover Release Latch
26 Tie-Down Locations (5)
27 Air Filter Service Indicator
28 Engine Air Filter (4 cylinder location)
