Do not:
• Cover any of the ventilation holes on the probe
• Immerse the probe or place it where dew can be expected to
form
• Use the probe in an environment with chlorine gas or insecti-
cides.
5. The contact monitoring connection is a two piece design. Connect
contact closure-type sensors to the removable screw terminal
block using the information in section 4 as a guide. The connector
accepts wire sizes from 14 AWG (1.6 mm2) to 26 AWG (.4
mm2). Strip the wire insulation 0.25" (6 mm). Connect the screw
terminal block to the Sensor Zones connector of Measure-UPS II.
See figure 3 below for a completed installation.

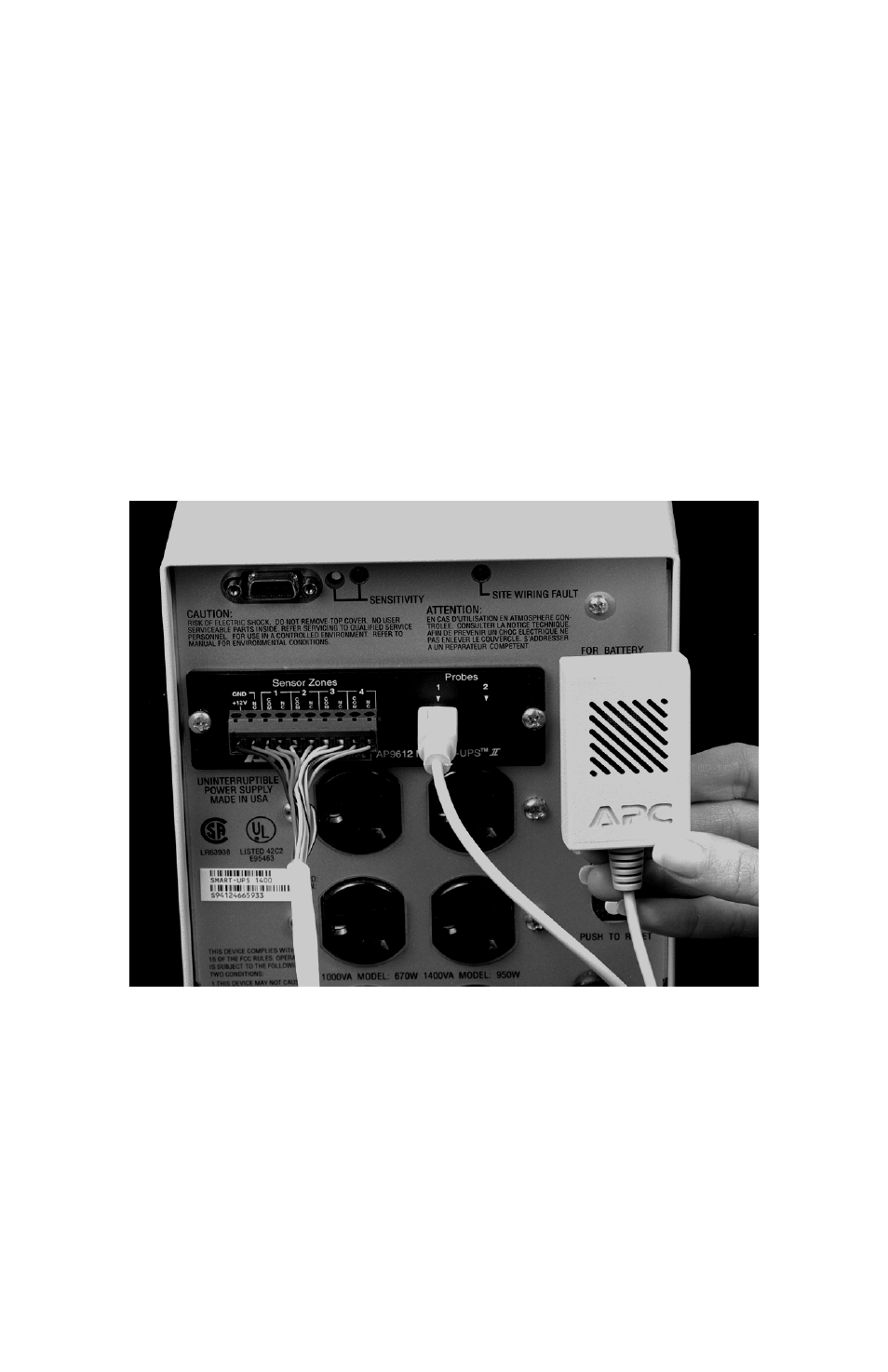

Figure 3, completed installation
