Silicon Motion SM718 - Manual (Page 2)

Graphics Engine
Host Interface
Int. Memory
Ext. Memory
Resolution
Software Support
CPU Platform
Operation Temperature
Package
2D
16/32-bit Host Bus, PCI
16MB DDR (option)
64MB DDR (max)
1920 x 1440 (max)
WinCE, WinXP, Win7,
Win2003(32-bit/64-bit), Win2008(32-bit/64-bit),
Linux Enterprise(32-bit/64-bit)
Intel, AMD, ZFMicro, Freescale PPC, AMCC,
STMicro, Marvell, Loongson and other PCI
C-Temp & I-Temp
320-pin BGA MCM (19mm x 19mm)
SPECIFICATION
SOFTWARE SUPPORT
ARM1176JZF-S Based CPU
533MHz @ 1.1V, 667MHz @ 1.2V
64 to 256 MB DDR System Memory
256MB NAND Flash
I2S Audio Codec Interface
USB 2.0 OTG, USB 1.1 Host
UART
Ethernet Windows Embedded Compact 7 and CE 6 R3
- Office Apps
- Internet browser
- Media Player video & audio
- Games (DirectDraw)
- Dual view display up to 1920x1440
Linux Version 2.6.x
- Xserver 1.7.5, Blackbox, Xterm
- NAND, SD, TFTP and NFS boot
- X11 based applications
- MPlayer video & audio decoder
- Dual display: DVI, VGA
Android Version 2.3
Source Code, Sample, and Reference API
Interface Provided
S3C6410 FEATURES
TV Composite and S-Video Outputs
Stereo Audio Output
SD/MMC Interface
SYSTEM FEATURES
Orion Embedded Multimedia System employs SM718 LynxSE+ GPU with Samsung S3C6410 ARM11 MCU and
includes Linux or Windows embedded Operating System. It is designed to provide a cost-effective, low-power, high
performance solution for mobile and embedded computing applications. Orion supports MPEG2, MPEG4, H.263, H.264
and VC1 hardware decode providing excellent media performance and power efficiency. Users can quickly and easily
employ SMI GPU technology in their mobile and embedded products.
Embedded Platform with S3C6410+SM718
Orion Multimedia Platform
16-bit/32-bit
Host Bus &
PCI I/F
(Option)

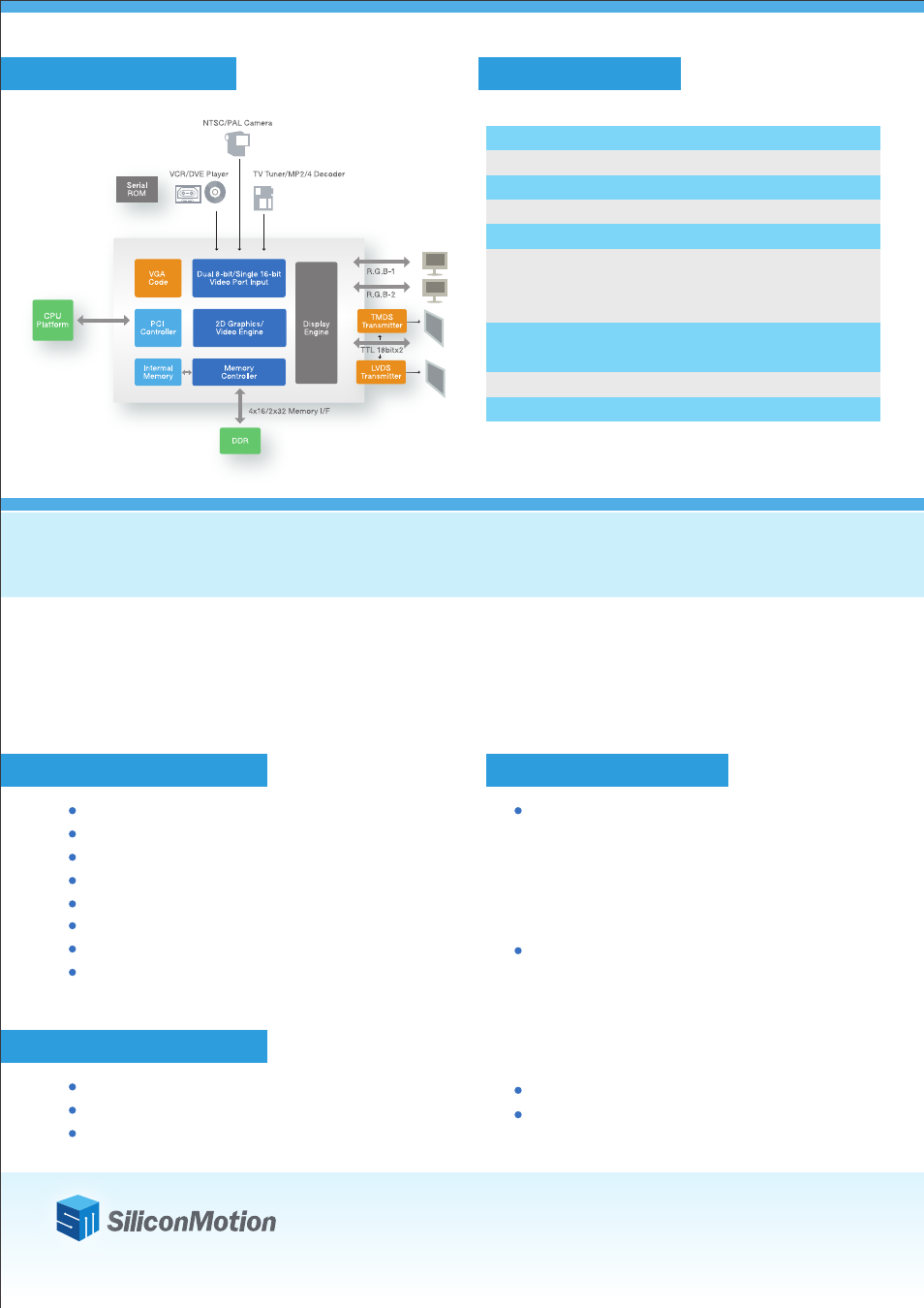

BLOCK DIAGRAM
