Silicon Motion SM502 User Manual
Vogager family, Multimedia soc, Sm502

Vogager Family
SM502
Overview
The SM502 is a Mobile Multimedia Companion Chip
(MMCC™) device packaged in a 297-pin Ball Grid Array
and is backward-compatible with the SM501. Designed
to comply with needs of the embedded sector, the SM502
has video and 2D capabilities. To decrease system costs,
the SM502 supports a diverse array of I/Os, including
analog RGB and digital LCD Panel interfaces, an 8-bit
parallel interface, USB, UART, IrDA, two Zoom Video
(ZV) interfaces, AC97 or I-S, SSP, PWM, and I-C. The
additional GPIO bits that can be utilized to interface with
external devices.
The 2D engine has front-end color space conversion with
4:1 and 1:8 scaling support. The video engine supports
two different video outputs (Dual Monitor) at 8, 16, or
32-bit per pixel and a 3-color hardware cursor per video
output. The LCD Panel video pipe supports back-end YUV
color space conversion with 4:1 and 1:212 scaling. A ZV
port is also included as an interface for external circuitry
for MPEG decoding or TV input.
Key Features
PCI/32bit host bus support for the processor interface
(SH-4, Power PC, Xscale, MIPS, ARM)
200 MHz DAC support 1280×1024 resolution
Supports 18/24-bit TFT panel and 8/12-bit CSTN panel
128-bit 2D graphic engine
0/8MB embedded SDRAM
Supports seven layers of display frames (2 hardware cursors,
primary graphics, video, video alpha, alpha, and secondary
graphics)
Supports two 8-bit ports or one 16-bit port/ITU601 ZV capture
port
USB1.1 host and slave, UART/IrDA, I2C
AC97
2 DMA controllers support
8051 u-controller embedded
Power consumption < 500mW

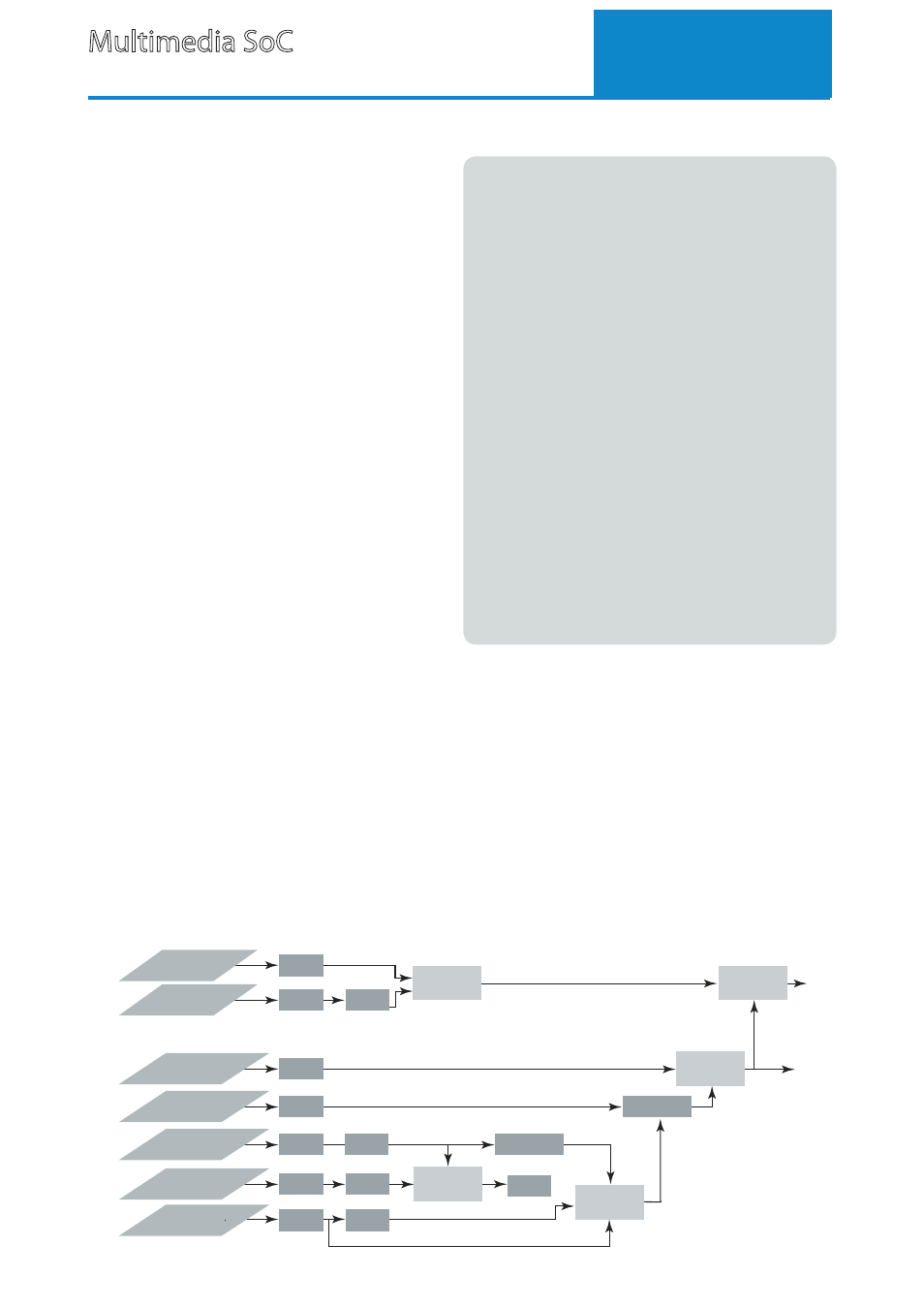

Video Layers and Data Processing
CRT
/ TV
FIFO
FIFO
FIFO
FIFO
FIFO
FIFO
FIFO
LUT
LUT
scaler
scaler
e
g
r
e
m
e
g
r
e
m
merge
merge
alpha blend
alpha blend
transparency
merge
LUT
Panel
Hardware Cursor
64x64, 2-bpp color
CRT Graphics Layer
Hardware Cursor
Alpha Layer
Video Alpha Layer
Video Layer
Graphics Layer
8/16/32-bpp color
64x64, 2-bpp color
4 bits ·, 4/12-bpp color,
16-bpp transparent color
4 bits ·, 4/12-bpp color
8/16-bpp transparent color
8/16/32-bpp color YUV 4:2:2
8/16/32-bpp color
Mobile Multimedia Companion Chip
Applications
Thin client
UMPC
Medical patient monitors
Embedded product monitors
Military PDA
Education machine
Surveillance
IPC
Signage
Packaging
297-pin BGA (19mm×19mm)
‑ Embedded Graphics
Multimedia SoC
