Graphics Engine
Host Interface
Int. Memory
Ext. Memory
Resolution
Power Consumption SM750
USB 3.0
16MB DDR (standard)
32MB DDR (option, max)
1920 x 1080 (max)
Dual Display: < 4W (max)
Single Display: < 2W (max)

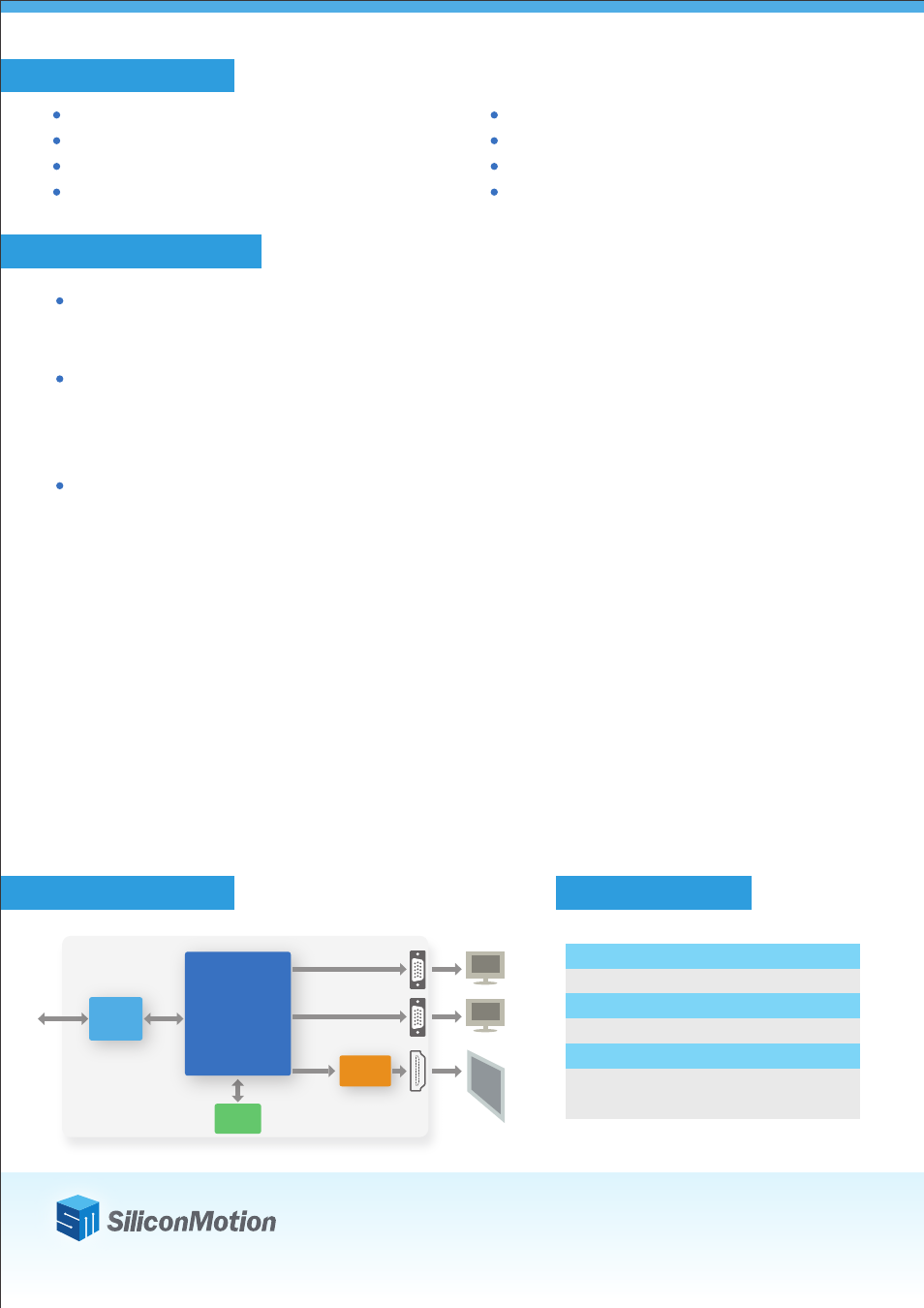

BLOCK DIAGRAM SPECIFICATION
USB 3.0 Client Interface – PLX Tech USB3380 USB 3.0 Bridge to PCIe
- Supports SuperSpeed, Hi-Speed, Full-Speed modes
- Supports USB 3.0 U0/U1 power management states
SM750 Multimedia Graphics Integrated with 16MB Internal Video DDR Memory
- 2D Accelerator with 128-bit Graphic Engine
- ROP3, BitBLT, transparent BLT, pattern BLT, color expansion, and line drawing
- YUV-16/32-bit RGB conversion
Display Software Features
- Windows
- WDDM (Windows 7/8, Server2008/2010/2011)
- XPDM (Windows XP)
- USB display device driver
- Control Panel
- Display Mode: Mirror/Clone, Desktop Extend, Rotation
- Linux (Kernel 2.6.3x, X server 1.10.x)
- FrameBuffer Driver
- Xorg Driver
- USB display device driver
- UBuntu 11.x, Fedora 15, Suse 11.x, RHEL 6.x
- Useful Multi-Seat 3.8 (upgradable to 5.x/6.x)
- UEFI BIOS: Graphics Output Protocol to support primary USB Display
LynxUSB FEATURES
www.siliconmotion.com
8F-1, No. 36, Taiyuan St., Jhubei City,
Hsinchu County 30265, Taiwan
Tel: +886-3-552-6888
Silicon Motion, Inc.
USB 3.0 PCIe
CRT 1
Digital
Memory
USB
3380
SM750
GPU
HDMI /
DVI
CRT 2
Thin Client
External/Secondary Display
IPC/POS
Digital Signage Medical Device
Gaming
Surveillance
Other Embedded Graphics Applications
APPLICATIONS
