• Model V2 Metallic Bolted
Performance
V2 - 2” Clamped Pump – Metallic Center
RUBBER FITTED
Flow Rate
Adjustable to . . . . . . . 0-152 gpm (575 lpm)
Port Size
Suction . . . . . . . . . . . . . . . . . . . . . . . 2" NPT
Discharge. . . . . . . . . . . . . . . . . . . . . 2" NPT
Air Inlet . . . . . . . . . . . . . . . . . . . . . . 1/2" NPT
Air Exhaust . . . . . . . . . . . . . . . . . . 3/4" NPT
Suction Lift
Dry . . . . . . . . . . . . . . . . . . . . . . .20' (6.09 m)
Wet. . . . . . . . . . . . . . . . . . . . . . .25' (7.62 m)
Max Solid Size (Diameter)
. . . . . . . . . . . . . . . . . . . . . . . 1/4" (6.35 mm)
Max Noise Level . . . . . . . . . . . . . 95 dB(A)
Shipping Weights
Aluminum . . . . . . . . . . . . . . .65 lbs (29.5 kg)
Cast Iron. . . . . . . . . . . . . . .113 lbs (51.3 kg)
Stainless Steel . . . . . . . . . .106 lbs (48.1 kg)
NOTE: Performance based on the following: elastomeric fitted pump, flooded suction, water at ambient conditions. The use of
other materials and varying hydraulic conditions may result in deviations in excess of 5%.

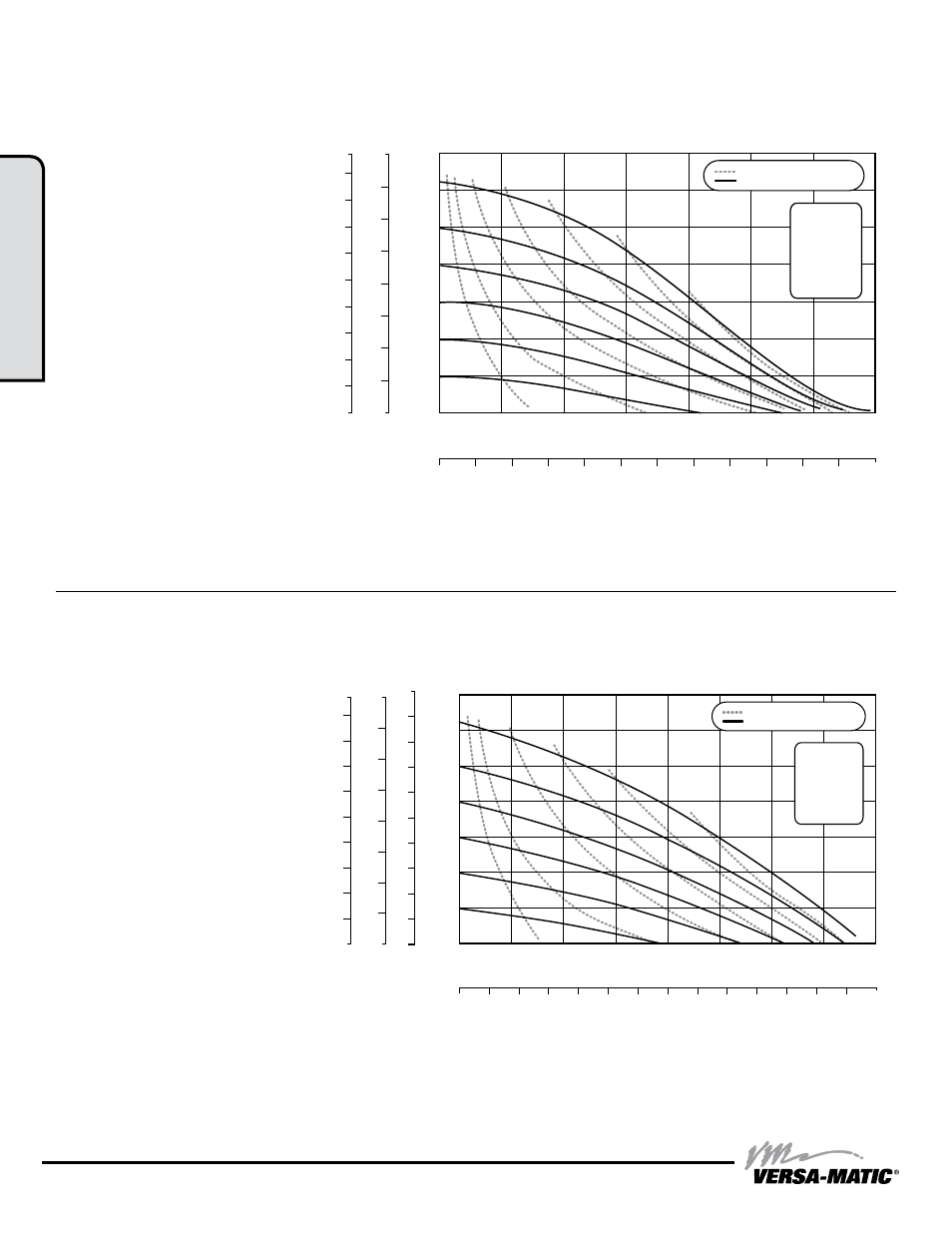

Discharge Head in PSI
0
140
120
100
80
60
40
20
0
Capacity in Liters Per Minute
Capacity in U.S. Gallons Per Minute
Capacity Per Stroke, 0.75 Gal. (2.8 L)
AIR CONSUMPTION IN SCFM
AIR PRESSURE IN PSI
SCFM M3/HR
10
17
20
34
40
68
60
102
80
136
100
170
0
20
75
150
300
375
450
525
600
10 20
40
60
80
100
40
60
80
100
120
140
160
Meters Feet
0
0
40
80
120
160
200
240
280
320
10
20
30
40
50
60
80
90
70
0
1
2
3
4
5
6
7
8
9
10
BAR
V2 - 2” Clamped Pump – Metallic Center
PTFE FITTED
Flow Rate
Adjustable to . . . . . . . 0-138 gpm (552 lpm)
Port Size
Suction . . . . . . . . . . . . . . . . . . . . . . . 2" NPT
Discharge. . . . . . . . . . . . . . . . . . . . . 2" NPT
Air Inlet . . . . . . . . . . . . . . . . . . . . . . 1/2" NPT
Air Exhaust . . . . . . . . . . . . . . . . . . 3/4" NPT
Suction Lift
Dry . . . . . . . . . . . . . . . . . . . . . . .10' (3.05 m)
Wet. . . . . . . . . . . . . . . . . . . . . . .20' (6.09 m)
Max Solid Size (Diameter)
. . . . . . . . . . . . . . . . . . . . . . . 1/4" (6.35 mm)
Max Noise Level . . . . . . . . . . . . 100 dB(A)
Shipping Weights
Aluminum . . . . . . . . . . . . . . .65 lbs (29.5 kg)
Cast Iron. . . . . . . . . . . . . . .113 lbs (51.3 kg)
Stainless Steel . . . . . . . . . .106 lbs (48.1 kg)
NOTE: Performance based on the following: elastomeric fitted pump, flooded suction, water at ambient conditions. The use of
other materials and varying hydraulic conditions may result in deviations in excess of 5%.
Meters Feet
Discharge Head in PSI
0
140
120
100
80
60
40
20
0
Capacity in Liters Per Minute
Capacity in U.S. Gallons Per Minute
Capacity Per Stroke, 0.41 Gal. (1.6 L)
AIR CONSUMPTION IN SCFM
AIR PRESSURE IN PSI
SCFM M3/HR
10
17
20
34
40
68
60
102
80
136
100
170
120
203.9
0
0
0
40
80
120
160
200
240
280
10
20
30
40
50
60
80
90
20
75
150
300
375
450
525
70
10 20 40
60
80
100
120
40
60
80
100
120
140
