3: EXP
VIEW
Model RE3 Metallic Bolted •
18

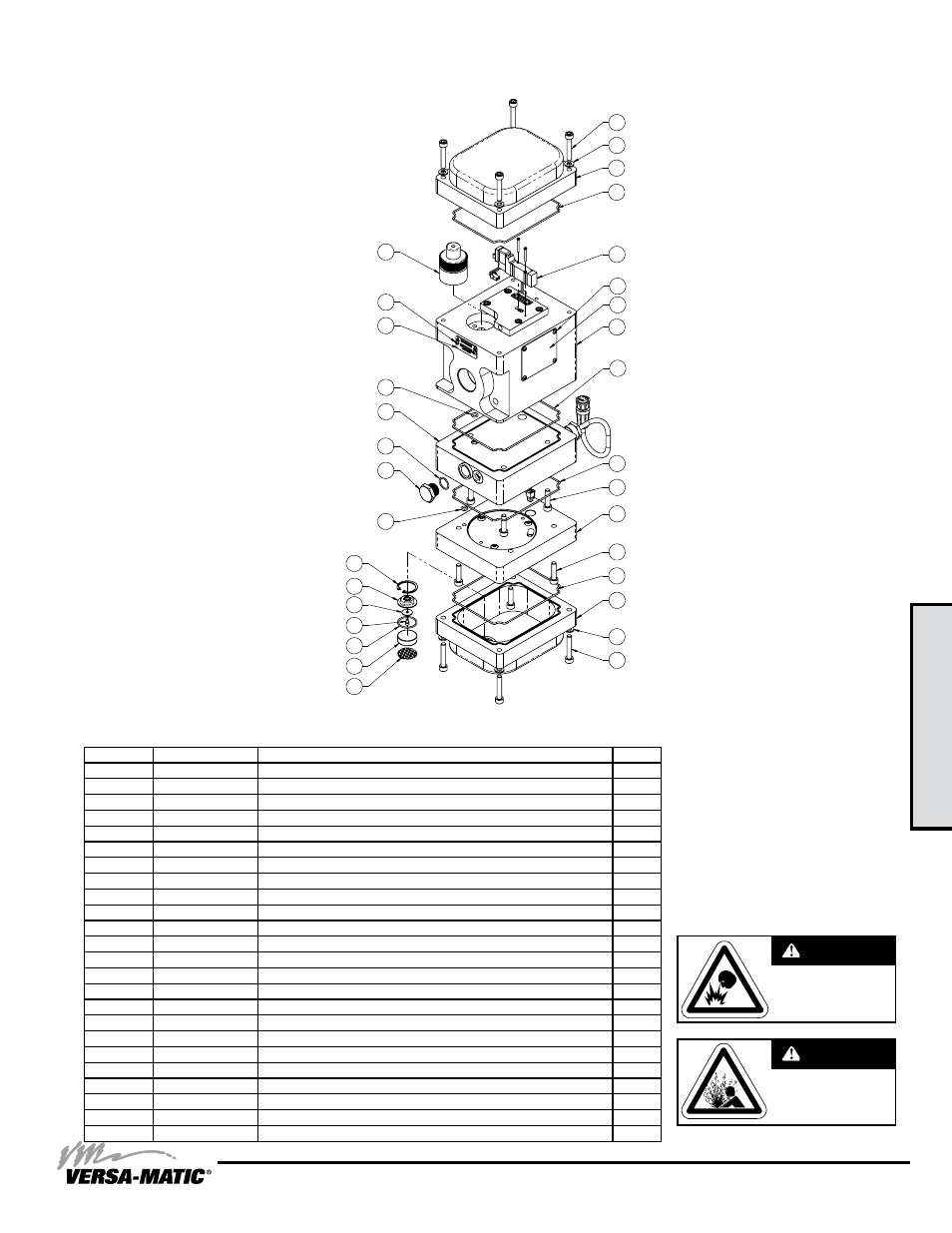

AirVantage Composite Repair Drawing
AirVantage Composite Parts List
ITEM No. PART NUMBER DESCRIPTION QTY.
80 258.020.147 COVER, END, TOP, ATEX 1
81 720.071.360 GASKET, ENCLOSURE 4
82 765.004.000 PILOT VALVE 1
83 893.104.000 VALVE, POPPET, ATEX 1
84 171.091.115 CAPSCREW, HEX SOC HD, M6-1.0 X 25 8
85 031.202.000 ASSY, POWER GENERATOR, ATEX 1
86 258.022.147 COVER, END, BOTTOM, ATEX 1
87 020.069.000 REGULATOR 1
88 560.200.360 SEAL, O-RING 2
89 249.022.000 CONTROL MODULE, RE2 ATEX 1
90 710.010.115 SCREW, SELF TAPPING 6
91 165.135.330 CAP, SWITCH 1
92 675.067.115 RING, RETAINING 1
93 430.050.147 HOUSING, MUFFLER 1
94 720.073.365 SEAL, CHECK VALVE 1
95 171.093.115 CAPSCREW, HEX SOC HD, 5-40 X 3/16 1
96 560.205.360 SEAL, O-RING 1
97 530.045.115 MUFFLER, SPARK ARRESTOR 1
98 165.137.115 CAP, PERFORATED 1
99 901.051.115 WASHER, M6 18-8 STAINLESS 8
100 535.094.015 PLATE, NAME 1
101 535.096.000 TAG, WARNING LABEL - ATEX 1
102 560.104.360 SEAL, O-RING 1
103 171.092.115 CAPSCREW, HEX SOC HD, M6-1.0 X 35 8
Do not open when an
explosive atmosphere
may be present.
WARNING
S u b s t i t u t i o n o f
components may
impair intrinsic safety.
WARNING
Note: Ensure all mating faces are free from
scores or damage prior to re-assembly.
Check each metallic face joint with a 0.003"
feeler gage to ensure all flange faces are
fully closed after assembly. Failure to do so
may compromise the flameproof design of
the assembly.
103
80
81
82
83
102
91
85
84
81
84
81
86
103
92
93
94
95
96
97
98
88
87
99
99
88
101
89
90
81
90
100
