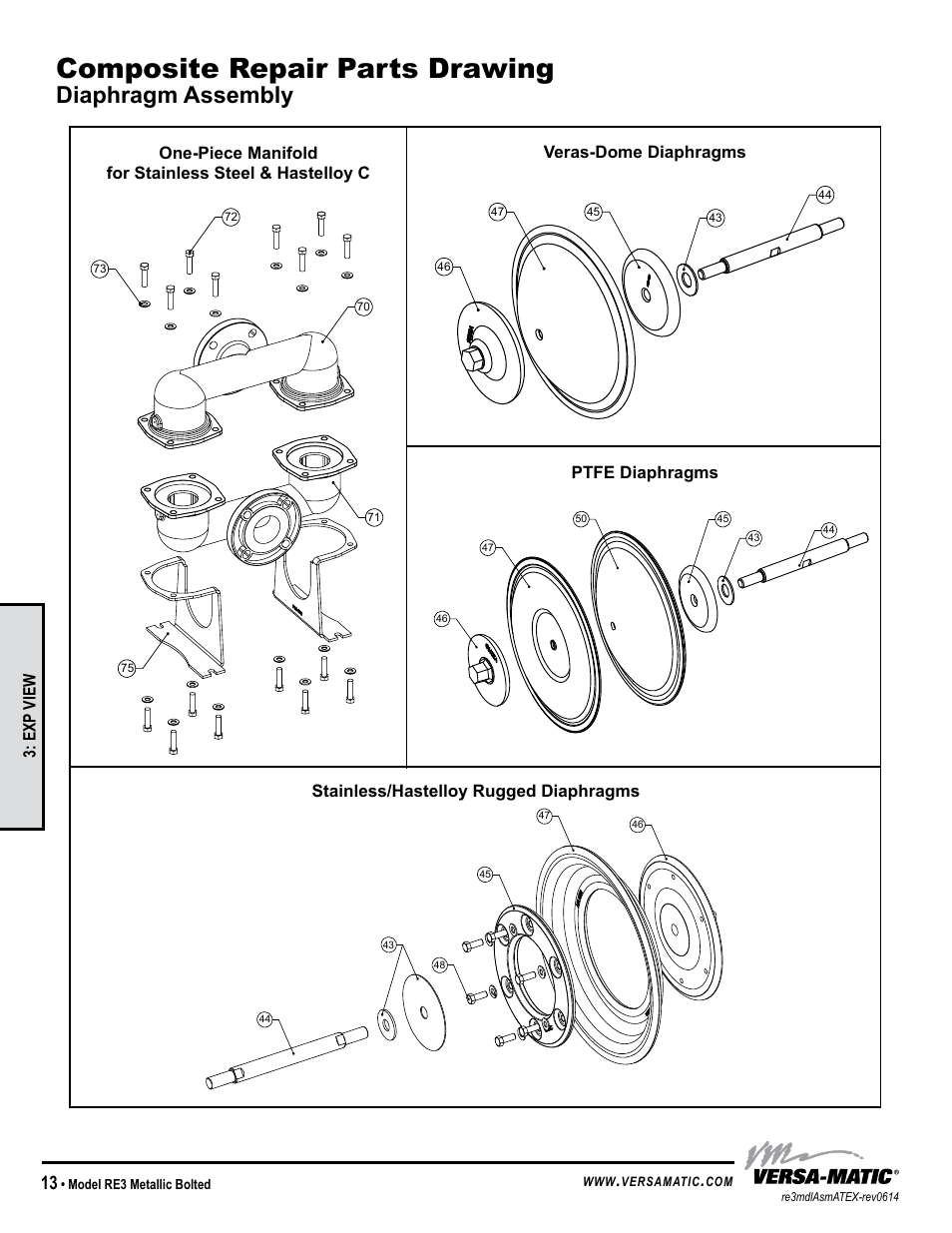

Composite repair parts drawing, Diaphragm assembly, Idex aodd – Versa-Matic 3 Bolted Metallic Hazardous Service Ball Valve (RE3) User Manual
Page 16: Exp view, Veras-dome diaphragms ptfe diaphragms, Stainless/hastelloy rugged diaphragms, Model re3 metallic bolted, Versamatic, Detail 6
