Versa-Matic 2 Ultra-Matic Bolted - Manual (Page 13)

u2msmMB-rev0314
www
.
versamatic
.
com Model U2 Metallic Bolted •
10

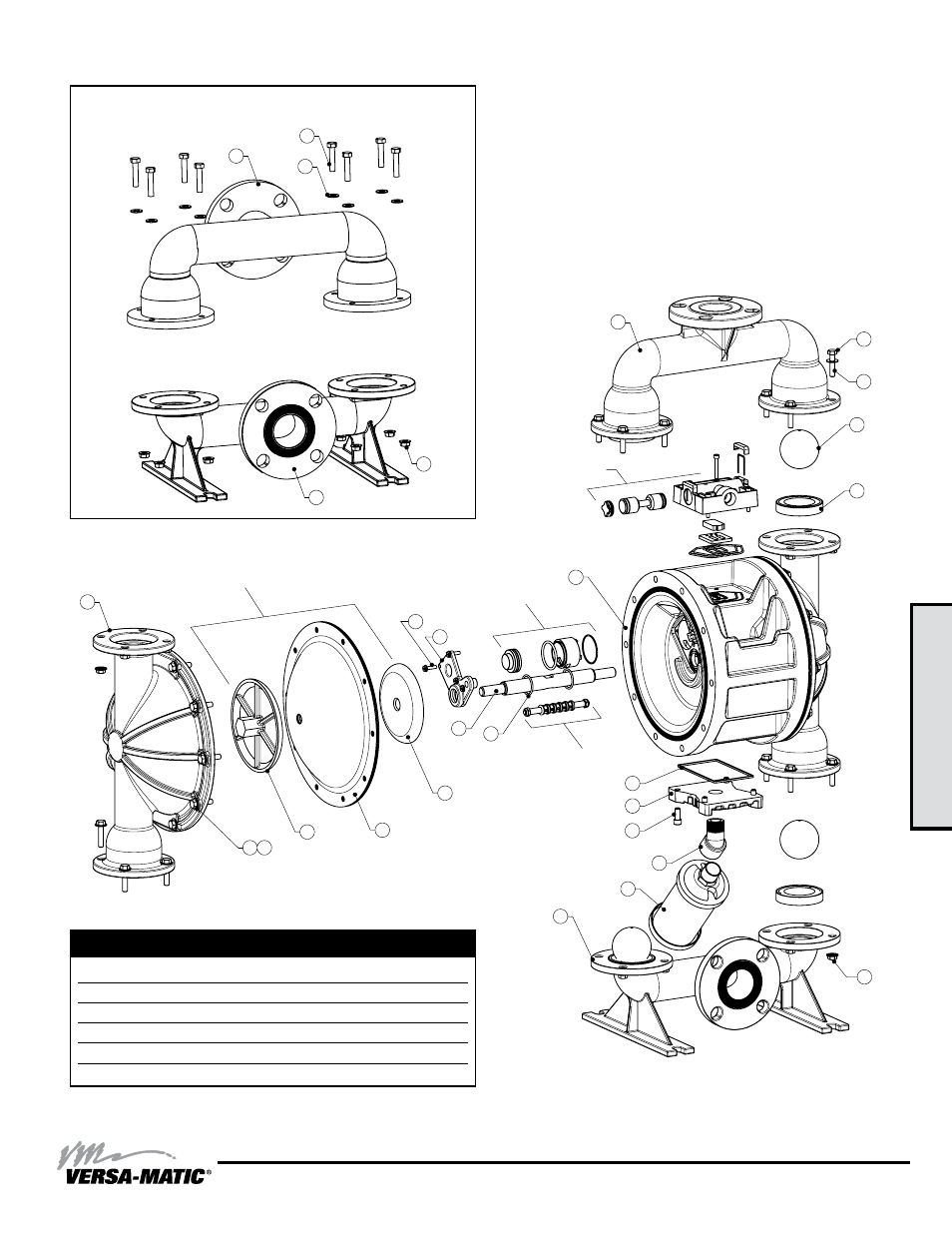

Composite repair Parts drawing
See Detail C:
Exhaust Valves
See Detail B:
Pilot Shaft
See Detail A:
Air Valve
Shown with Versa-Dome Diaphragms
See Detail D for PTFE Bonded Diaphragms
See Detail E for PTFE 2-Piece Diaphragms
51 52
50
56
60
42
45 43
40
27
24
21
15
29
28
30
31
32
57
58
59
55
53
Manifold Bolts 25 ft-lbs (34 N-m)
Water Chamber Bolts 25 ft-lbs (34 N-m)
Diaphragm Plates — Rubber 65 ft-lbs (88 N-m)
Diaphragm Plates — PTFE 65 ft-lbs (88 N-m)
Air Valve Cap Screws 25 in-lbs (2.8 N-m)
Muffler Plate Cap Screws 30 in-lbs (3.4 N-m)
Torque Settings
61
63
64
62
65
Optional Horizontal Discharge
General Model Specific
3: EXP
VIEW
