Operating the AXIS 230 AXIS 230 28

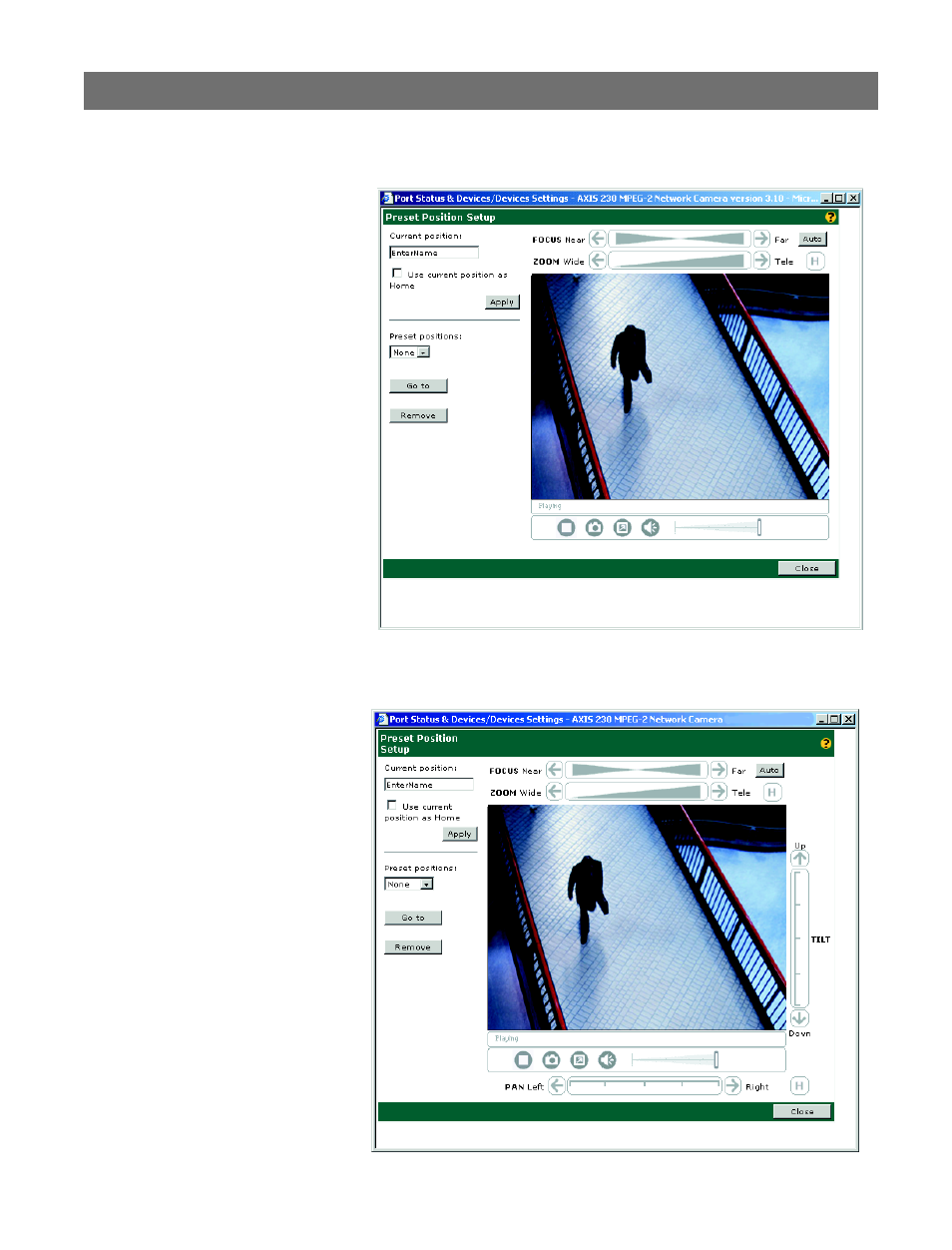

Preset position setup - Zoom only
To add a new preset
position for the zoom
function, zoom the camera
to the required
magnification and then
enter a descriptive name in
the Current Position field
and click Apply. To set a
position as Home, check
the box provided when that
position is current. It is
possible to go directly to
the Home position from
any other position - simply
by clicking the H button. To
remove a preset position,
select it from the
drop-down list and click
Remove.
Preset position setup - Pan, Tilt & Zoom
To be able to pan and tilt
the camera, a Pan/Tilt
device and its driver must
be added to the camera.
The interface will then
automatically provide pan
and tilt bars. To add a new
preset position for all 3
functions, use the controls
to steer the camera so that
it points to the desired
position, and zoom and
focus as required. Then
add the preset as described
above.
Please note that the
selected driver will
determine the actual
layout.
