Appendix d - unit connections, The d-sub connector, The terminal block – Axis Communications AXIS 230 User Manual

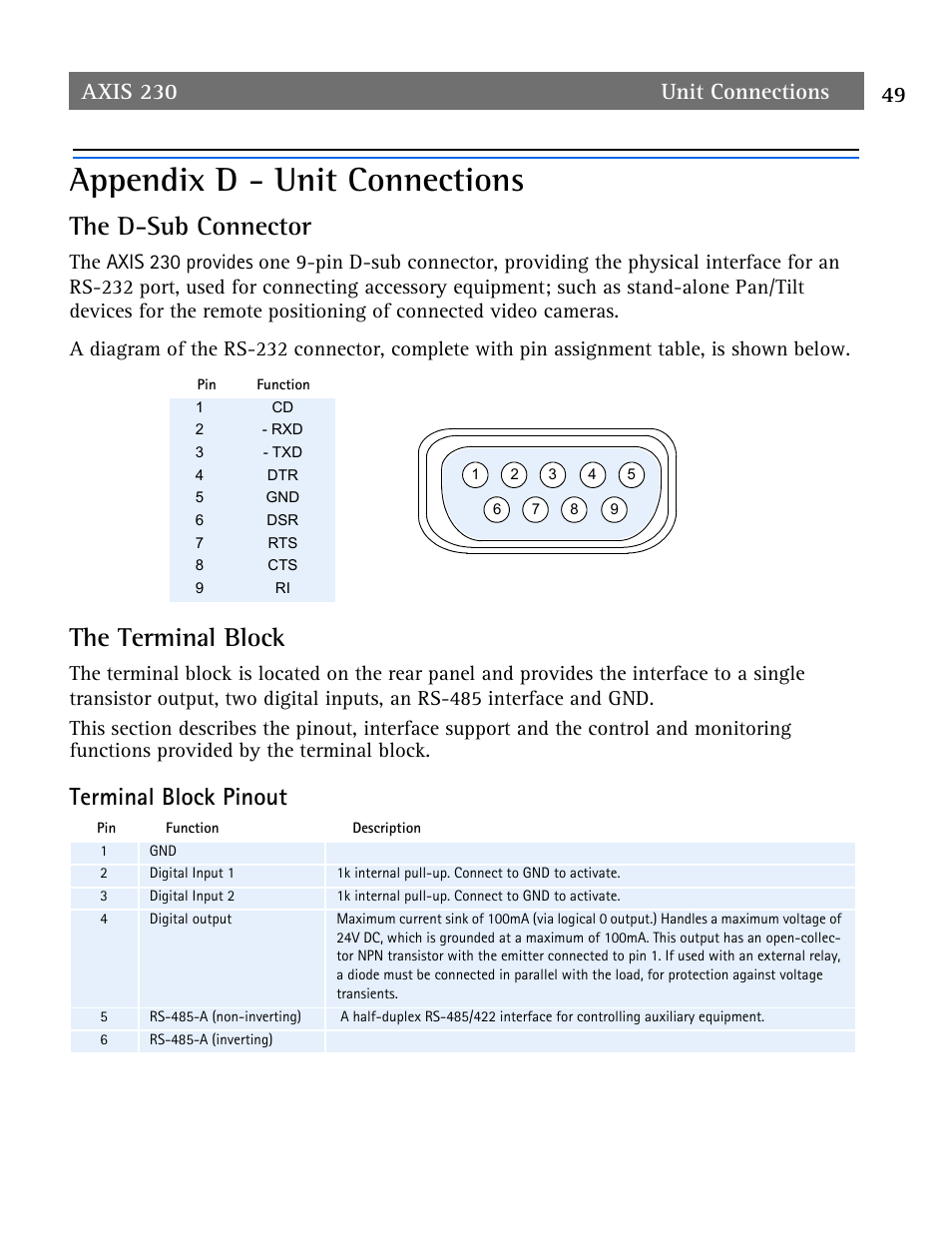

Page 49: Appendix d - unit connections 49, Terminal block pinout
