¾” hose
-
Connect a ¾” hose from one of the the
regulator ports marked “bypass” to the
bypass return port on your tank.
-
Connect a ¾” suction line from the pump
inlet shut off valve to the feed port on
your tank. This hose should be reinforced
flexible suction line that does not collapse
under a vacuum. Maximum distance
from tank to pump is 6 ft.
-
Connect a ½” hose from the pump
discharge barb to your hose reel or
directly to your spray gun.
-
Secure all hose ends with hose clamps to
ensure no leaks.
¾” suction line
1/2”
discharge
hose

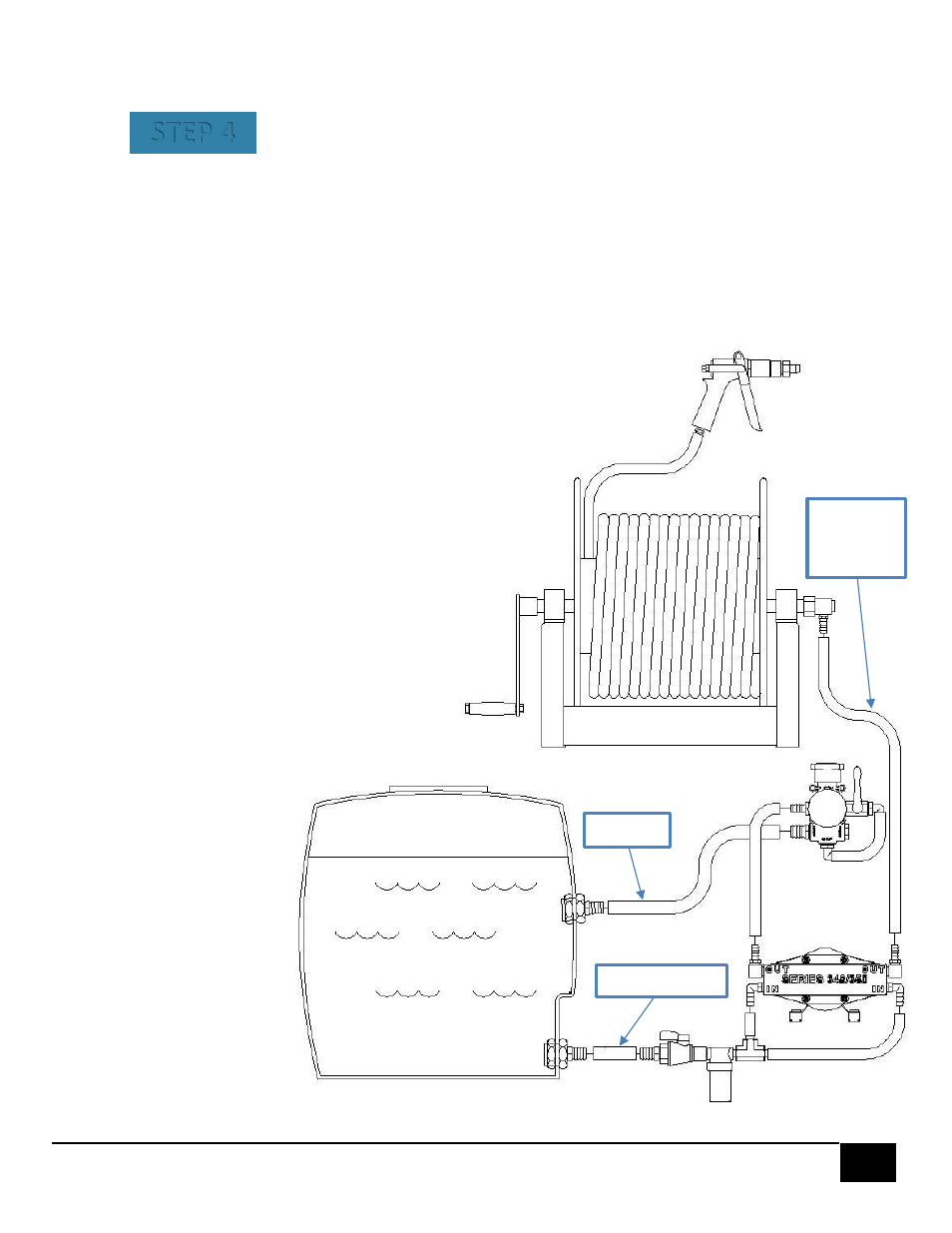

STEP 4 Connect feed, bypass, and discharge hoses.
