Choose a location where the operator
can easily adjust the pressure regulator,
view the pressure gauge, and operate
priming ball-valve.
-
Drill four holes in your mounting plate
with a 5/16” drill bit. The hole pattern
is 2 inches wide by 2.17 inches long.
-
The regulator is designed to be
mounted to a vertical surface. It may
also be mounted to a horizontal surface
if desired.
-
The hose from the pump to the
regulator must be at least 18” long of
soft 200psi hose (up to 10ft long if
needed).

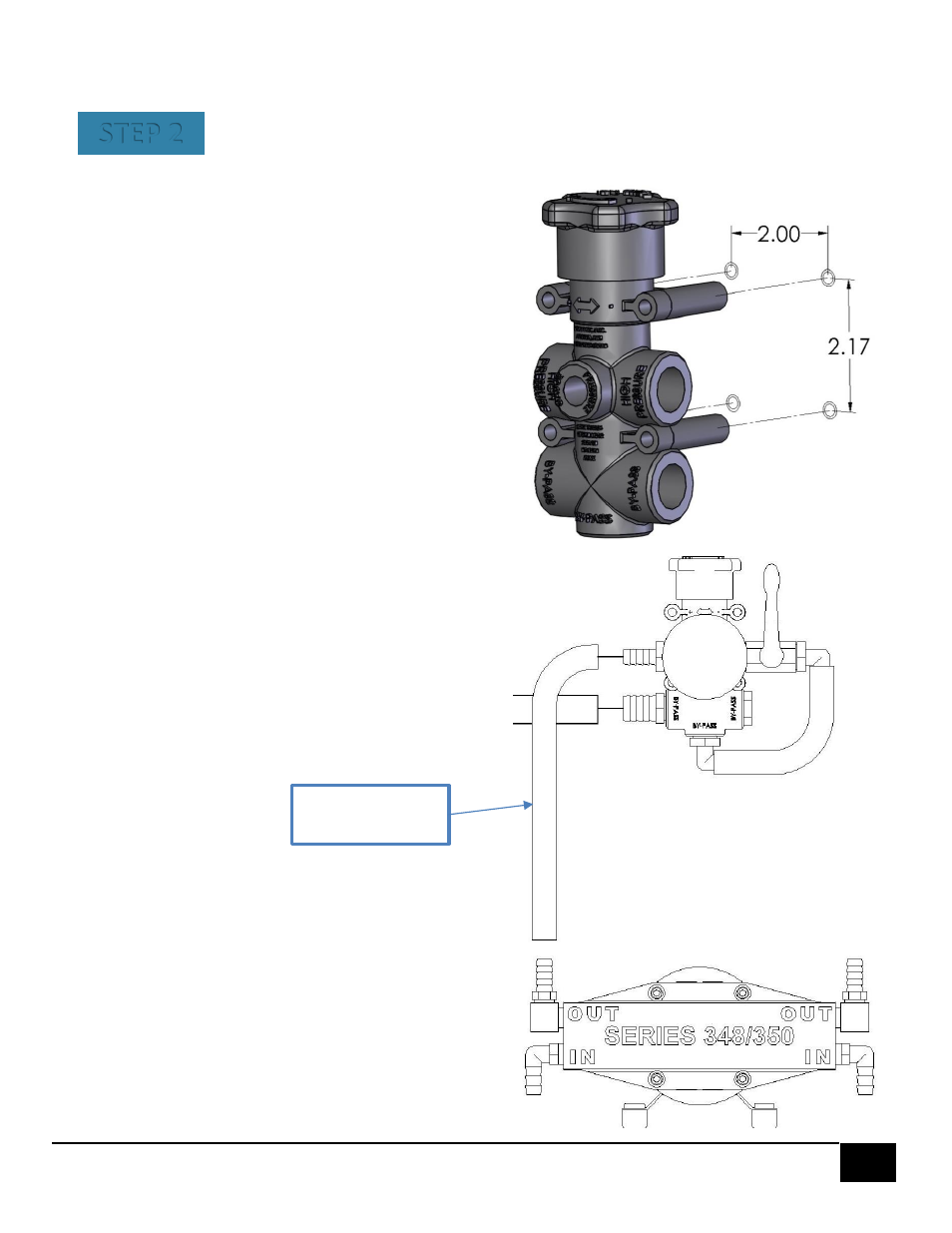

STEP 2 Bolt regulator to a mounting plate.
Soft 200psi hose.
At least 18” long.
