Page 1

Otter Wild Ice Lodge

Installation and Set-Up Instructions

Otter Wild Ice Lodge

Fits Magnum Otter Wild Sled Only

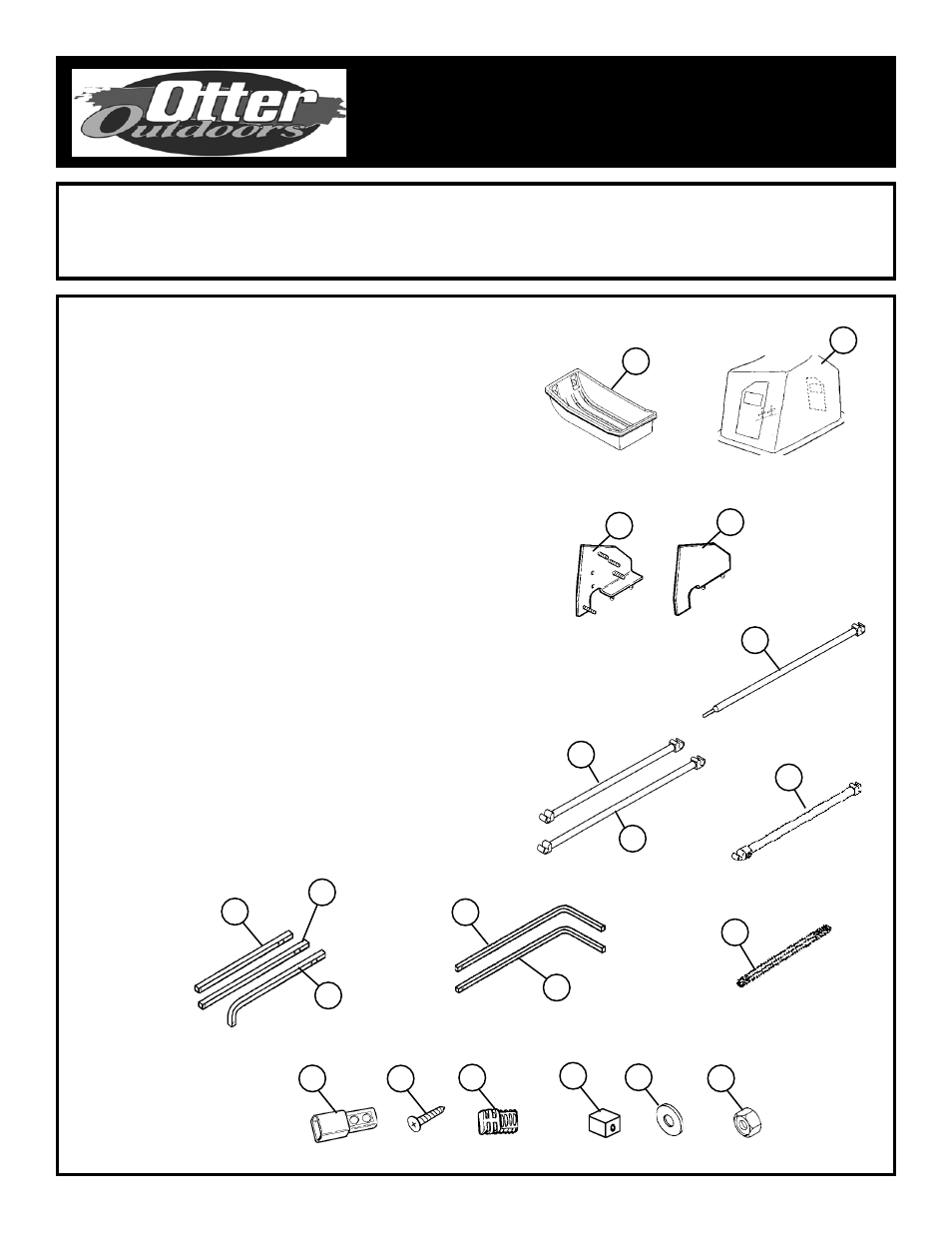

Parts Identification and Check List

PARTS LIST

Item # Qty Part #

Description

1

1

1040

Sled - Black (Sold Separately)

2

1

90373

Tent-Ice Camo Lodge-Thermal Roof

3

1

80172

Frame Bracket “A”

4

1

80171

Frame Bracket “B”

5

1

80517

Back Wind Support Bar - 49 1/2”

6

1

80518

Center Wind Support Bar - 34 5/8”

7

1

80519

Center Wind Support Bar - 44 3/4”

8

1

80512

Adjustable Front Wind Support Bar

9

2

80470

Main Frame Extension Bar - 31 1/2”

10

2

80471

Main Frame Extension Bar - 32 1/2”

11

4

80472

Main Frame Extension Bar - 30”

12

2

80474

Outer Main Frame Bar - 33”

13

6

80473

Outer Main Frame Bar - 29 9/16”

14

4

80475

Middle Main Frame Bar - 52”

15

8

80489

Sleeve

16

16

40714

Self Tapping Screw & Plastic Protector

12

40714

Self Tapping Screw

17

8

80487

Black Plug

18

8

80488

Black End Cap

19

4

40103

5/16 Washer

20

12

80013

1/4 Nylon Hex Lock Nut

MODEL NUMBERS:

Complete Pkg Thermal Roof Ice Camo

2046

2

1

5

6

7

8

3

11

10

9

13

12

14

4

17

18

19

20

16

15

Front

Back

Center

Bottom

Back &

Center

Front

Bottom

All

Instructions - 70775
