Lincoln Electric IM10126 MAXsa 19 MSA User Manual
Page 10
COLD INCH SWITCH
Cold inch will feed @ MAXsa™ 10 speed.
STATUS LIGHT
The Status Light is a two color LED that indicates the
system condition. Normal operation is steady green.
Flashing green or red/green indicates a system error.
See the Troubleshooting Section.
SELECTING A WIRE DRIVE
AND GEAR RATIO
The MAXsa™ 19 MSA can accommodate a number
of wire drives including the MAXsa™ 22 and
MAXsa™ 29. The feeder control system must be con-
figured for both the wire drive and the gear ratio. This
can be accomplished with the Weld Manager Utility.
This utility is on the Power Wave Submerged Arc
Utilities CD, or available at
www.powerwavesoftware.com.
A-4
INSTALLATION
MAXsa™ 19 MSA
A-4

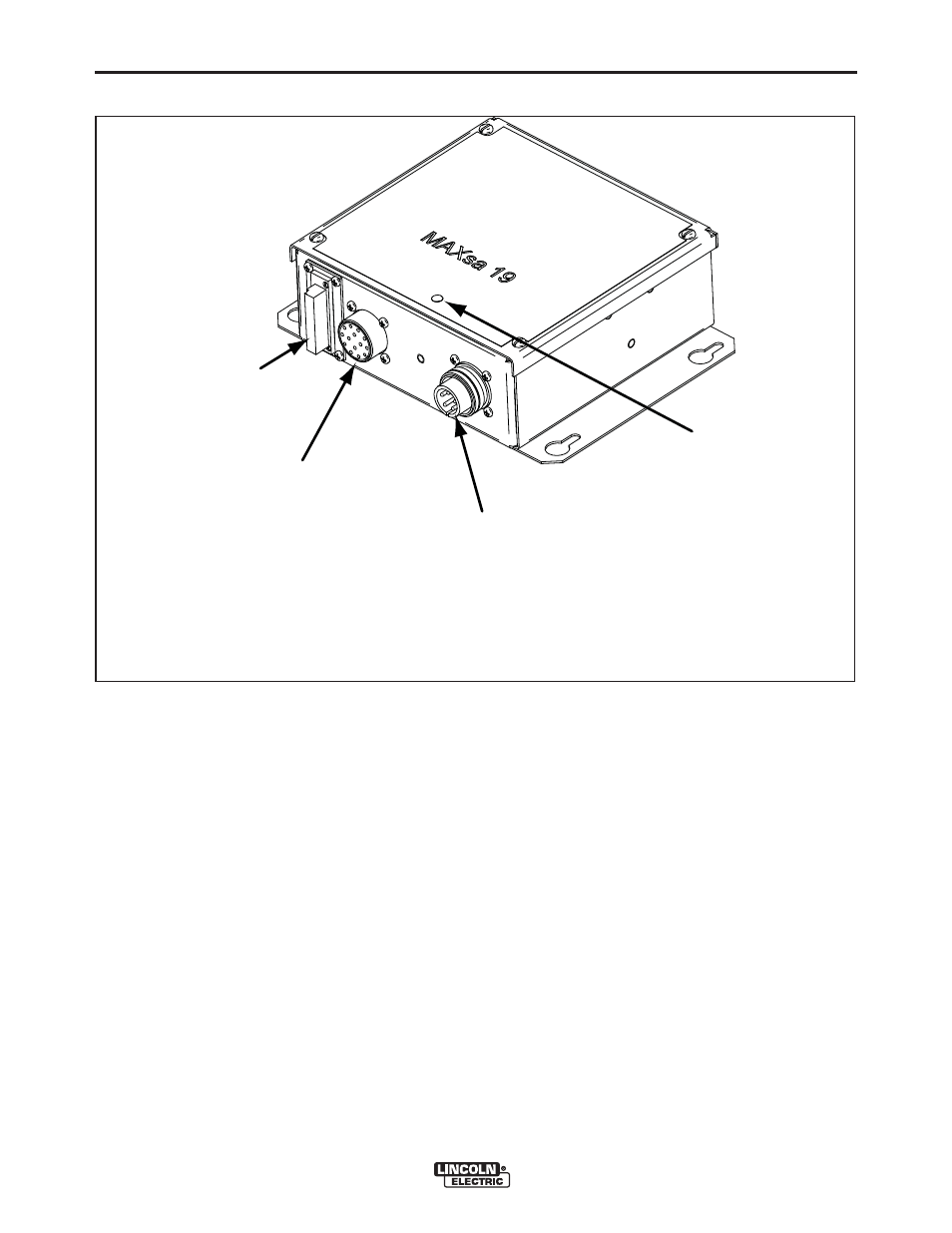

FIGURE A.2 - MAXsa™ 19 MSA COMPONENT DESCRIPTION
14 Pin Connector
To Wire Drive
ArcLink Connector
To Power Source
External
I/O Connector
Status
LED
