Diagrams – Lincoln Electric IM10145 AUTOPRO 20 User Manual
Page 20
F-1

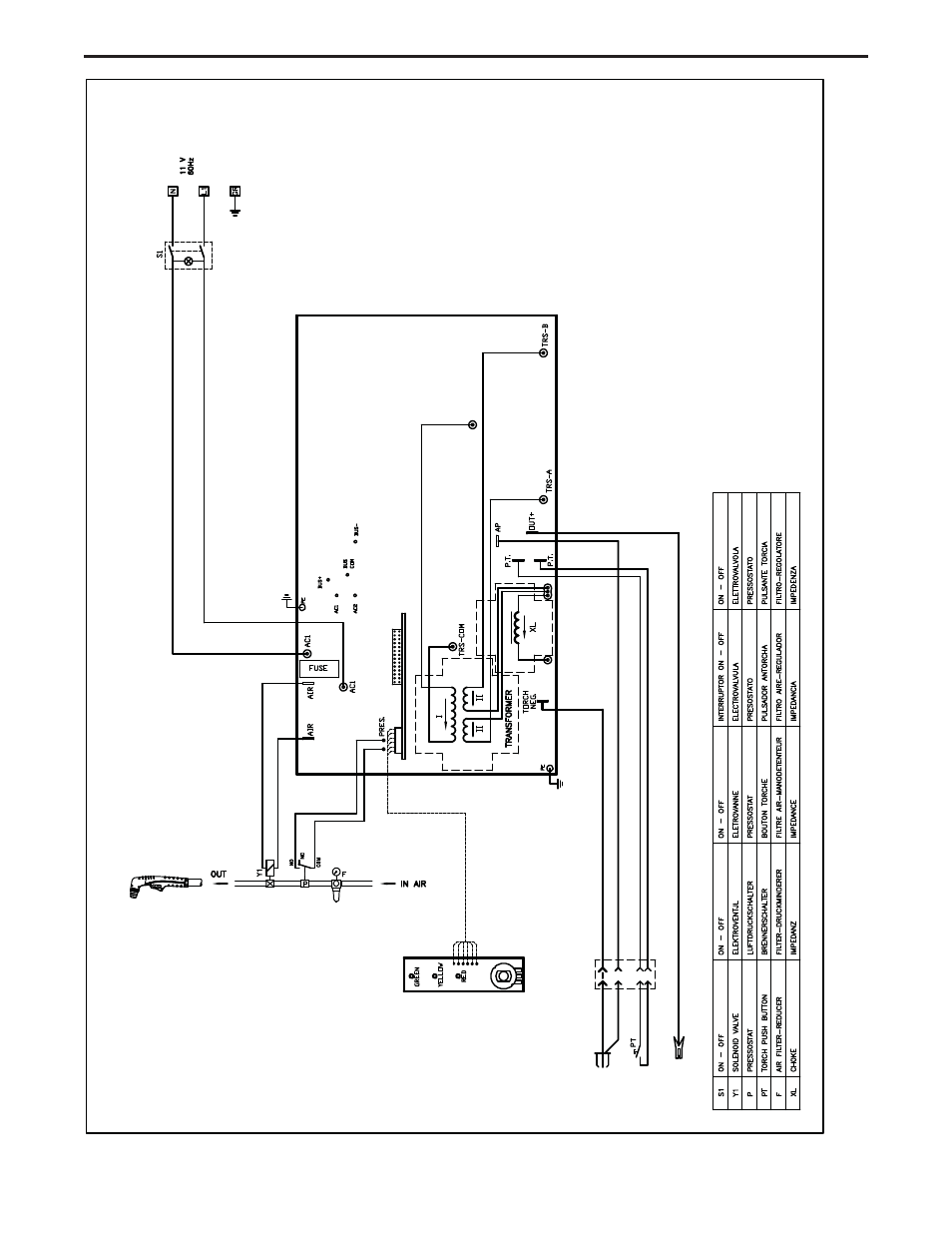

DIAGRAMS
F-1
AUTOPRO™ 20
NOTE: This diagram is for reference only. It may not be accurate for all machines covered by this manual. The specific diag
ram for a particular code is pasted inside the
machine on one of the enclosure panels. If the diagram is illegible, write to the Service Department for a replacement. Give
the equipment code number.
5
INVERTER BOARD
DISPLA
Y
BOARD
CONTROL
BOARD
