1.5 Connector Panel
The external peripheral interface connectors are located on the bottom panel of the
IOVU-752S . The peripheral interface connectors are shown in Figure 1-3.

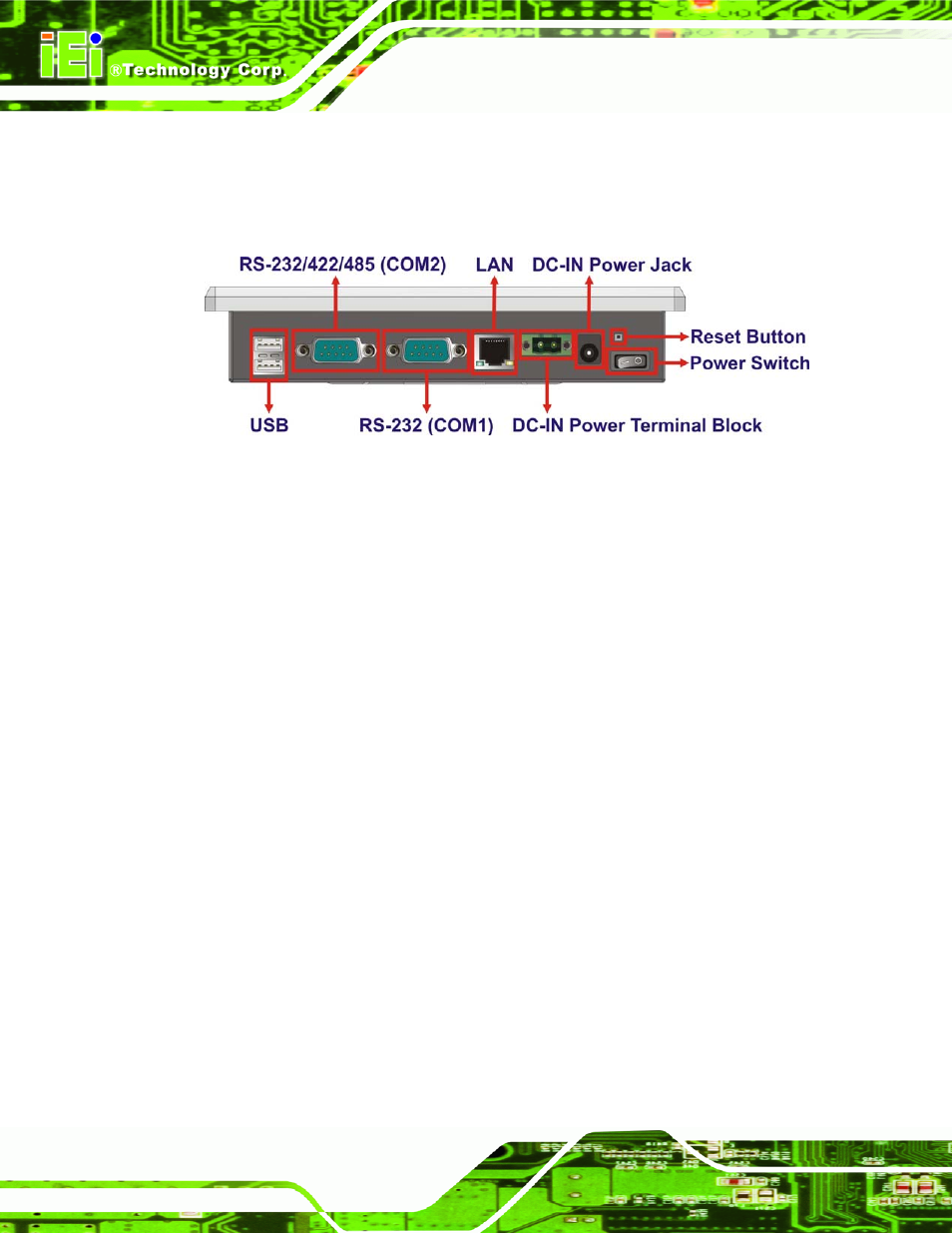

Figure 1-3: IOVU-752S Peripheral Connectors
External peripheral interface connectors on the IOVU-752S include:
ƒ 1 x DC-IN power jack
ƒ 1 x DC-IN power terminal block
ƒ 1 x Power switch
ƒ 1 x Reset button
ƒ 1 x RJ-45 LAN connector (supports PoE)
ƒ 1 x RS-232 connector
ƒ 1 x RS-232/422/485 connector
ƒ 2 x USB connectors
1.6 Internal Overview
Internally the IOVU-752S contains a motherboard, connected to the external interface
connectors. The motherboard is also connected to the LCD panel and touch screen. For
full motherboard specifications and details, please refer to the motherboard user manual.
